Delphin ProfiMessage User Manual

ProfiMessage

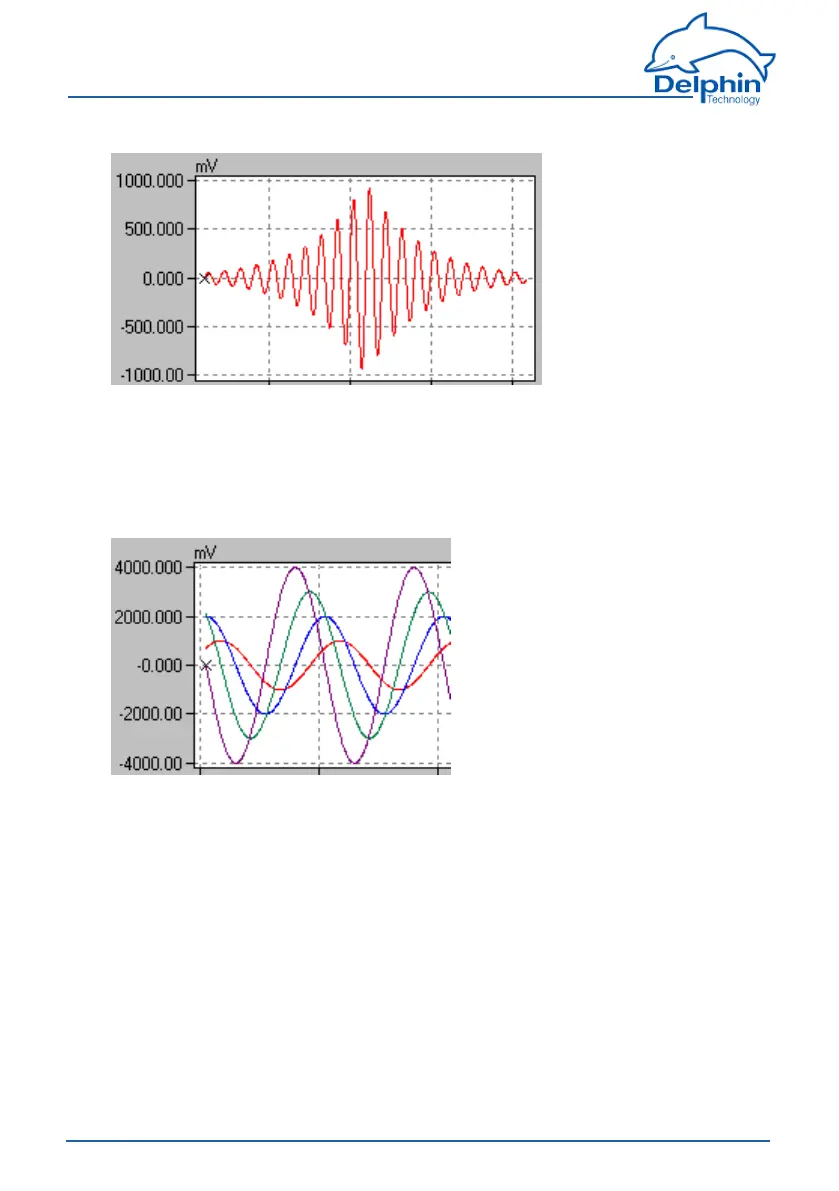

Timesignal:
Signal 5
Description:Signalswithincreasingphaseshift
Channel1:Sine,1000mVpp,10Hz,45°
Channel2…8withphase90…360°and2…8-foldamplitude
Timesignal:
Signal 6
Description:Signalswithfrequencycomponentsandpairedphaseshiftsappro-
priatetothe"shaftvibration"application
Channel1/3/5/7:Sinewith3components,320mVpp,40Hz,30°/80mVpp,80
Hz,40°/16mVpp,120Hz,50°
Channel2/4/6/8:Sinuswith3components,240mVpp,40Hz,300°/60mVpp,
80Hz,220°/12mVpp,120Hz,140°
Eachchannelwithanamplitudeoffsetof-7000mV
Timesignal,frequencyspectrumandorbit:
247
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
