ProfiMessage

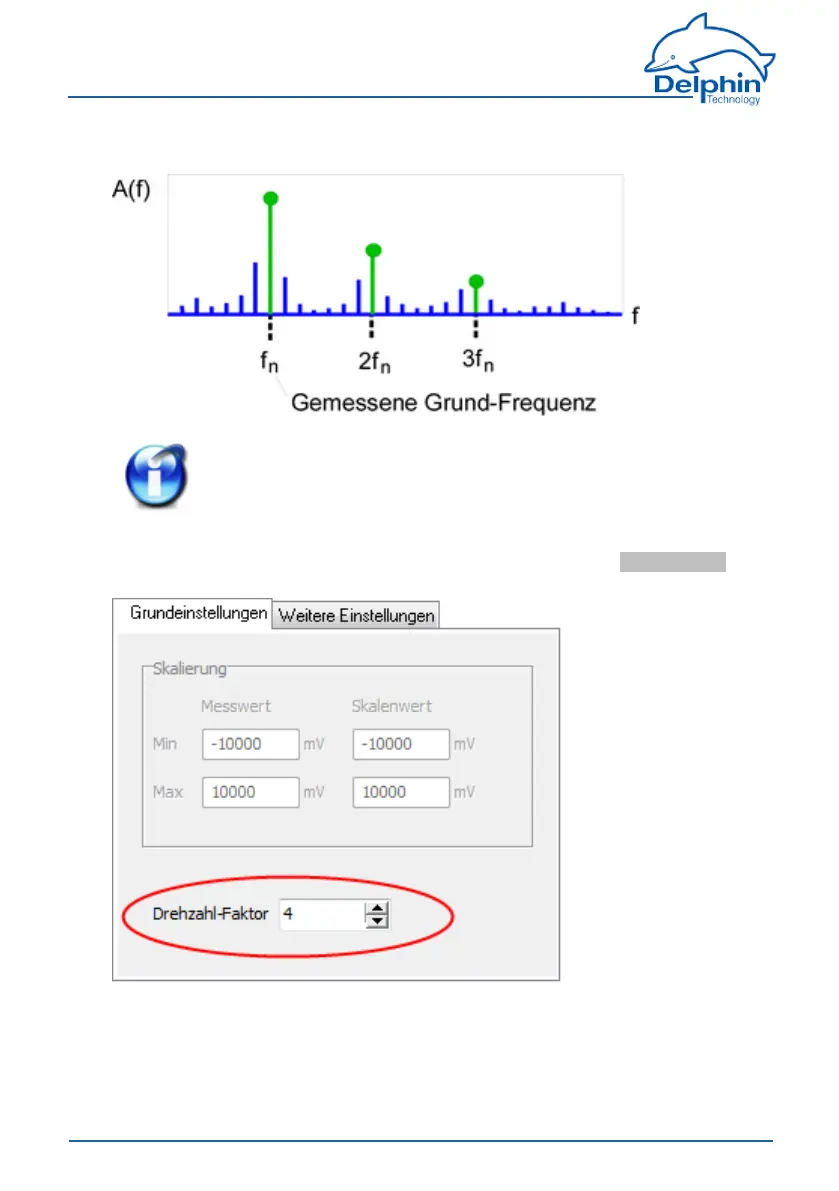

Usingthefrequencyspectrumforthelineindexfn/2fn/3fn/xfn,theDSPdeterm-
inestheamplitudeofthisline/vibrationcomponent.
Acquisitionofanaccuratefnviathedigitalfrequencyinputisessen-
tial,asisthehighestpossibleresolutionforthefrequencyspectrum.
Intheeventofdeviationsbetweenthemeasuredfrequencyandfre-
quencyspectrum'slineindex,evaluationofthenextlinetakesplace.
Onlyfreelydefinablecomponents(amplitudeofxXvibration)canbesetinthe
range0…100xfn.Thecorrespondingconfigurationdialogue(Main settingstab)
hasa“Rotationspeedfactor”field:

266
