TheEnd block valuesettingtransmitsafrequencyspectrumofthecorresponding
averaginglevelonlyafternmeasurements.
Order analysis
Whenorderanalysisisenabled,theevaluationsoftware(e.g.ProfiSignal)willbe
informedthatthemeasuredfrequencyspectrumistobedisplayedasanorder
spectrum.Thespectrumisthennormalizedtothemeasuredrotationspeed.This
requiresthatrotation-pulseisconnectedandfrequencymeasurementisactiv-
ated.

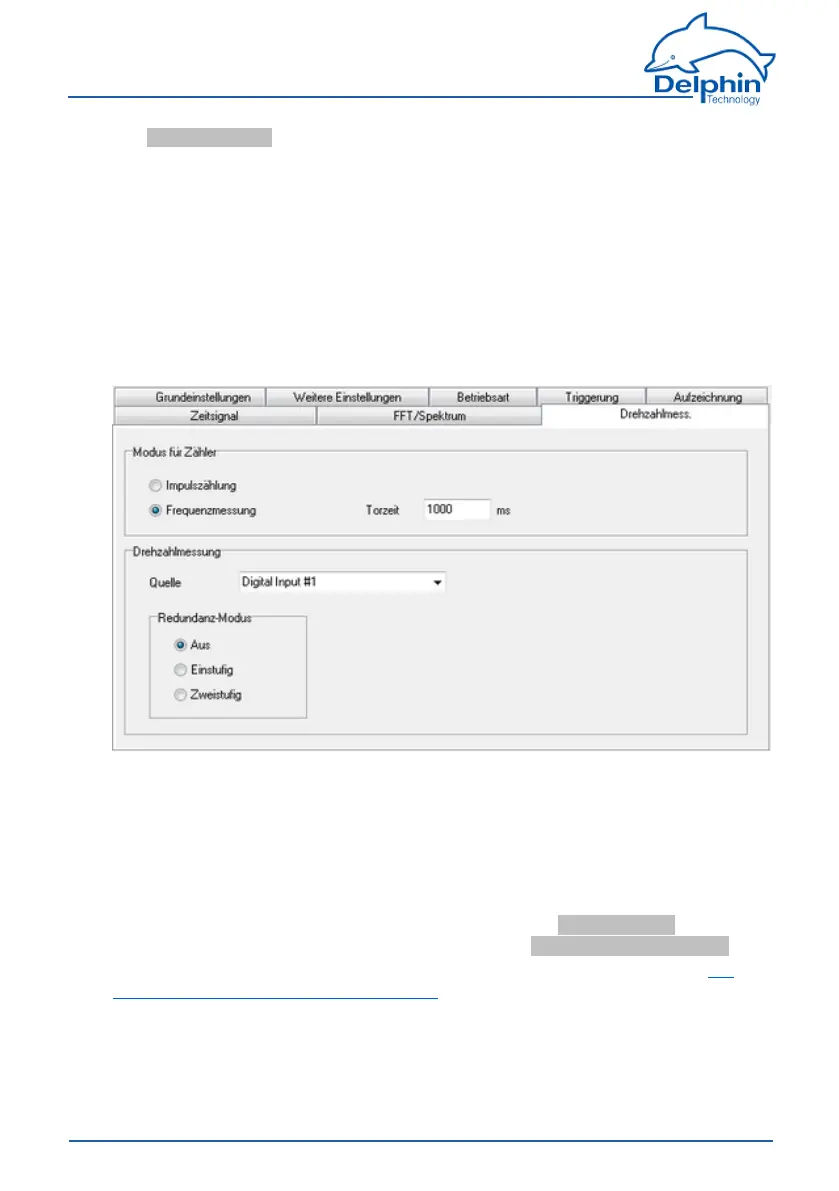

Rotation measurement tab
Counter mode
Bothcountersareassigneddirectlytothefirsttwodigitalinputs.
Twomodesarepossible:
l Pulsecounting
l Frequencymeasurement
Settingsaresimultaneouslyeffectiveforbothcounters.Pulse countingiscon-
secutive(16-bit=65536)andresetisnotpossible.Frequency measurement
takesplaceautomaticallyinHz.MoreinformationisavailableinthesectionFre-
quencyandrotationspeedmeasurement
Rotation speed measurement, source
290
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
