2 Hardware Specifications and Wiring
DVP-20PM Application Manual
2-8
2.2.3 Safety Wiring

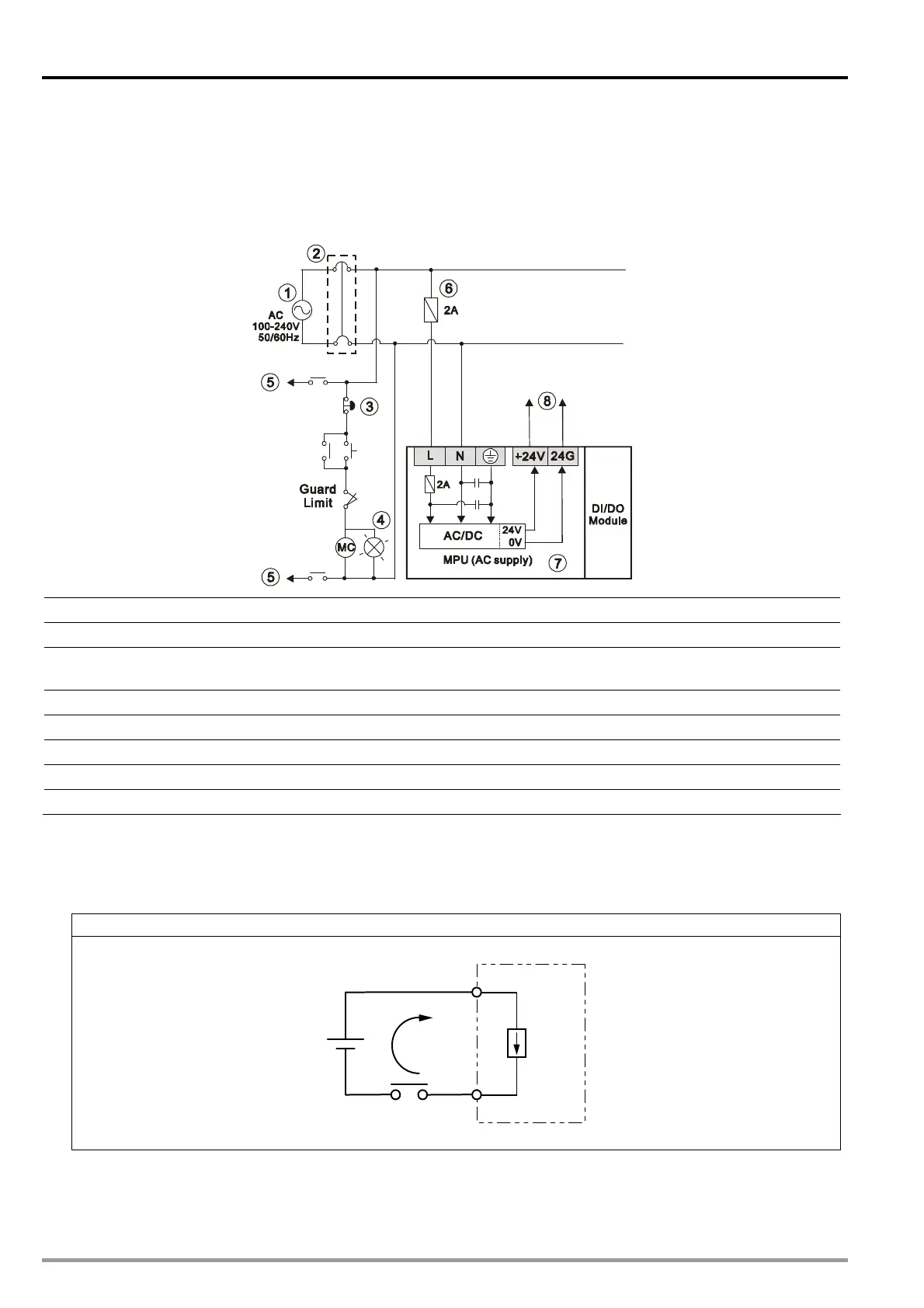

A DVP-20PM series motion controller controls many devices, and the activity of any device affects the
activity of other devices. If any device breaks down, the whole automatic control system will go out of
control, and dangers will occur. As a result, it is suggested that users should create the protection circuit
shown below when they wire power input.
Alternating-current power input: 100~240 VAC, 50/60 Hz
Circuit breaker
Emergency stop: The emergency stop button can be used to cut off power when an emergency
occurs.
Power indicator
Load through which a alternating current passes
3 A fuse
DVP-20PM series motion controller
Direct-current power output: 24 V DC, 500 mA
2.2.4 Wiring Input/Output Terminals
1. The power input of a DVP-20PM series motion controller is DC power input. Sinking and sourcing are
current driving capabilities of a circuit. They are defined as follows.
Sinking:
DC power input
S/S
X0
Sinking
Sinking: The current flows into the common terminal S/S.
