9 Electronic Cam
DVP-20PM Application Manual
9-30
Parameter Data Format Explanation
Smoothing coefficient Integer
Times of smoothing curve operation
3: 3 times
4: 4 times
5: 5 times
6: 6 times
Other: 3 times
P3
Cycloid type Integer
0: Uniform B-spline
1: Non Uniform B-spline
2: C-spline (original data points
should be less than 20 points)
3: CC Spline
4: Cycloid

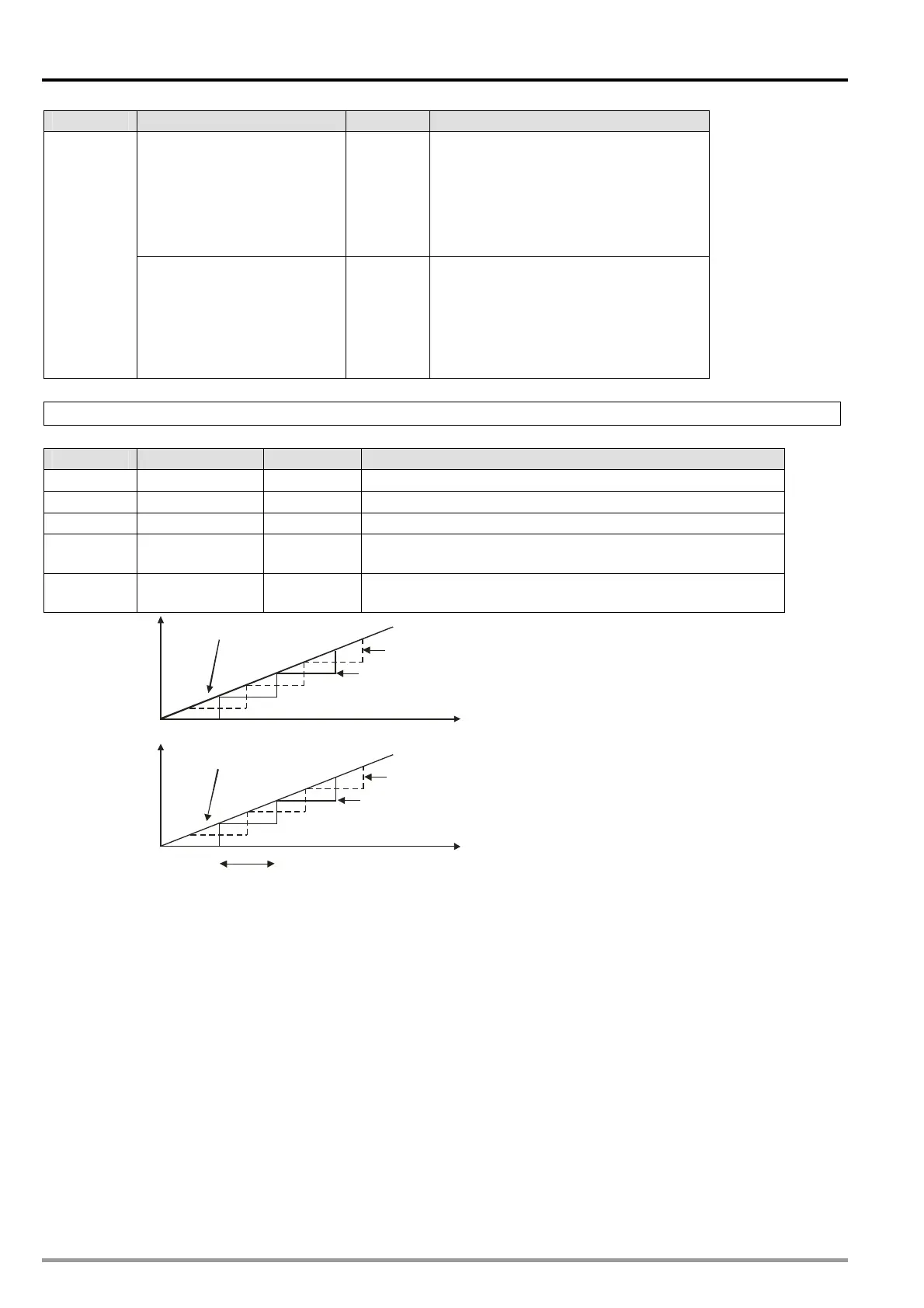

CR#10005: Reading electronic cam status in capture mode
[Description]
Parameter Data Format Explanation
P1 Slave position Integer Caught at DOG signal
P2 Slave position Integer Caught at end of cycle
P3 Master position Integer Caught at DOG signal
P4 Master position
Floating
point
Caught at end of cycle
P5 Master position
Floating
point
Caught at START0 (M1746=OFF) or PG0 (M1746=ON)
D1849, D1848
D101, D100
D103, D102
T(ms)
Slave position caught at DOG signal
Current position of X-axi
s
D105, D104
D107, D106
D1863, D1862
Number of accumulated MPG pulses
E-CAM cycle
Slave position caught at end of cycle
Master position caught at DOG signal
Master position caught at end of cycle
The function of reading electronic cam status in capture mode should be used with M1757 (Remain
current speed), and can be applied for checking the cutter position in flying shear applications. For
details please refer to 9.4.2.6.
9.4.2.1 Creating/Modifying Electronic Cam Data
After users create electronic cam data in a cam chart in PMSoft, the cam data will be downloaded to a
DVP-20PM series motion controller. If the users modify the electronic cam data in PMSoft, they have to
download the new electronic cam data created to the DVP-20PM series motion controller again after
they modify the electronic cam data. A DVP-20PM series motion controller allow users to modify
electronic cam data. The users can modify electronic cam data when the program in the DVP-20PM
series motion controller is executed.
Data length of electronic cam data can be real-time modified. When 4 words of one point (set) of
electronic cam data are all 0 and identified, DVP-20PM will take it as electronic cam completion.
Therefore, if users want to modify 10 points electronic cam data into 5 points, DTO instruction can be
applied to write 0 into the 4 words of the sixth point.
