Delta DVP-20PM User Manual

5 Applied Instructions and Basic Usage
DVP-20PM Application Manual
5-183
State output pin
Name Function
Data
type
Time when there is
a transition in an
output pin’s signal
from low to high
Time when there is a transition in an
output pin’s signal from high to low
Busy
The motion
control function
block is being
executed.
BOOL
 There is a
transition in the
Busy output pin’s
signal from low to
high when there is
a transition in the
Execute input
pin’s signal from
low to high.
 There is a transition in the Busy
output pin’s signal from high to low
when there is a transition in the
Done output pin’s signal from low
to high.
 There is a transition in the Busy
output pin’s signal from high to low
when there is a transition in the
Error output pin’s signal from low
to high.
 There is a transition in the Busy
output pin’s signal from high to low
when there is a transition in the
Aborted output pin’s signal from
low to high.
Aborted
The execution
of the motion
control function
block is
interrupted by a
command.
BOOL
 The execution of
the motion control
function block is
interrupted by a
command.
 There is a transition in the Aborted
output pin’s signal from high to low
when there is a transition in the
Execute input pin’s signal from
high to low.
 If the Execute input pin is set to
False when the execution of the
motion control function block is
interrupted, the Aborted output pin
will be set to False in the next
cycle.
Error
An error occurs
in the motion
control function
block.
BOOL
 Input values are
incorrect.
 The axis specified
is in motion before
the motion control
function block is
executed.
 There is a transition in the Error
output pin’s signal from high to low
when there is a transition in the
Execute input pin’s signal from
high to low.
3. Troubleshooting
Error Troubleshooting
The values of input pins in the motion control function
block are incorrect.
Check whether the values of the input pins are in the
ranges allowed.
The motion control function block conflicts with other
motion control function blocks.
Make sure that other uniaxial motion control function
blocks are not started or the execution of other
uniaxial motion control function blocks is complete
before the motion control function block is started.
4. Modules which are supported
The motion control function block T-HomeReturn supports DVP20PM00D and DVP2OPM00M.

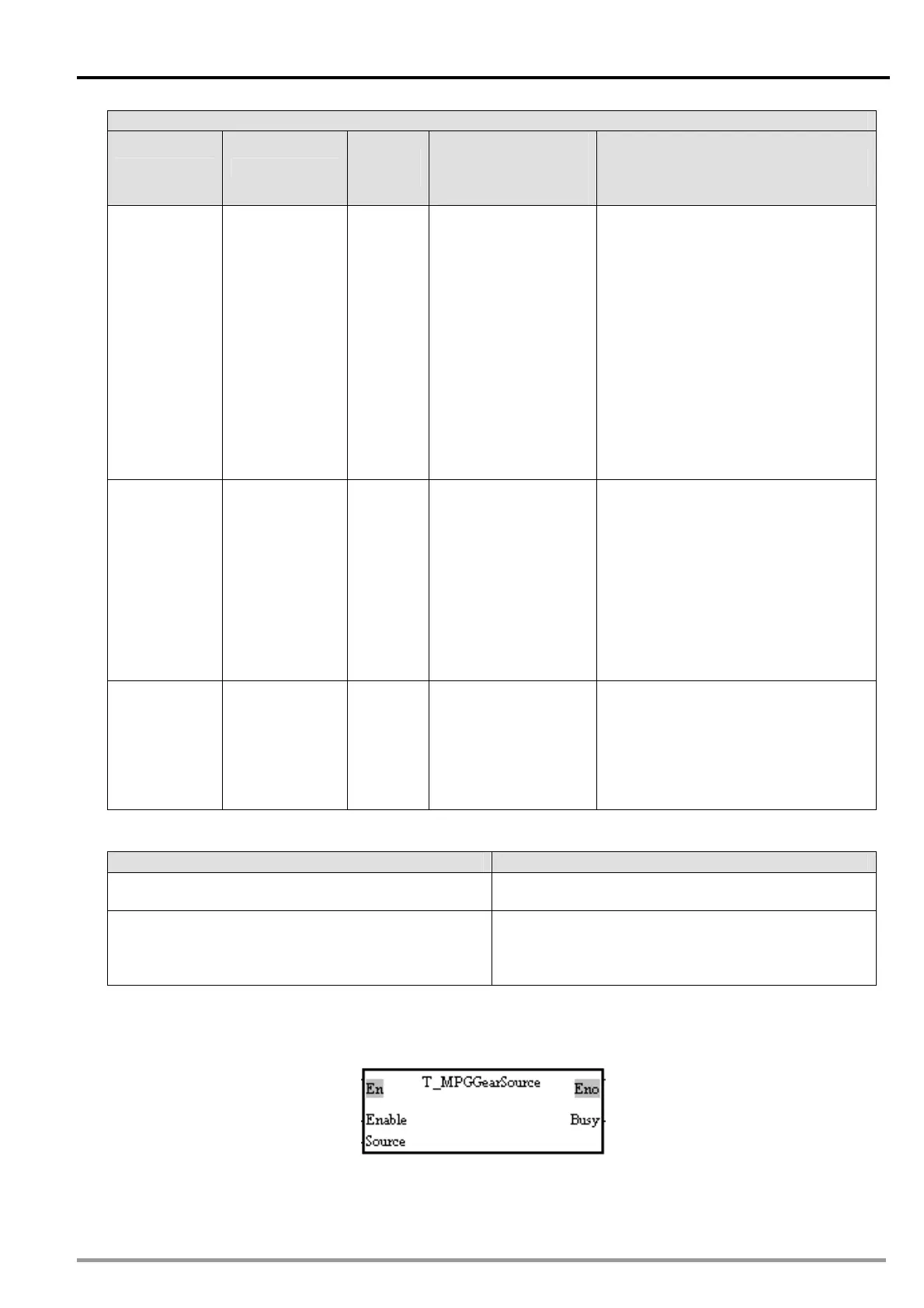

5.10.11 Setting Input Sources for Manual Pulse Generators/Ele
ctronic Gears
1. Motion control function block
The motion control function block T_MPGGearSource is used to set input sources for manual pulse
generators/electronic gears. If the Source input pin is set to True, the input sources for the first axis~the
third axis will be A0± and B0±. If the Source input pin is set to False, the input sources for the first axis
