Delta DVP-20PM User Manual

9 Electronic Cam

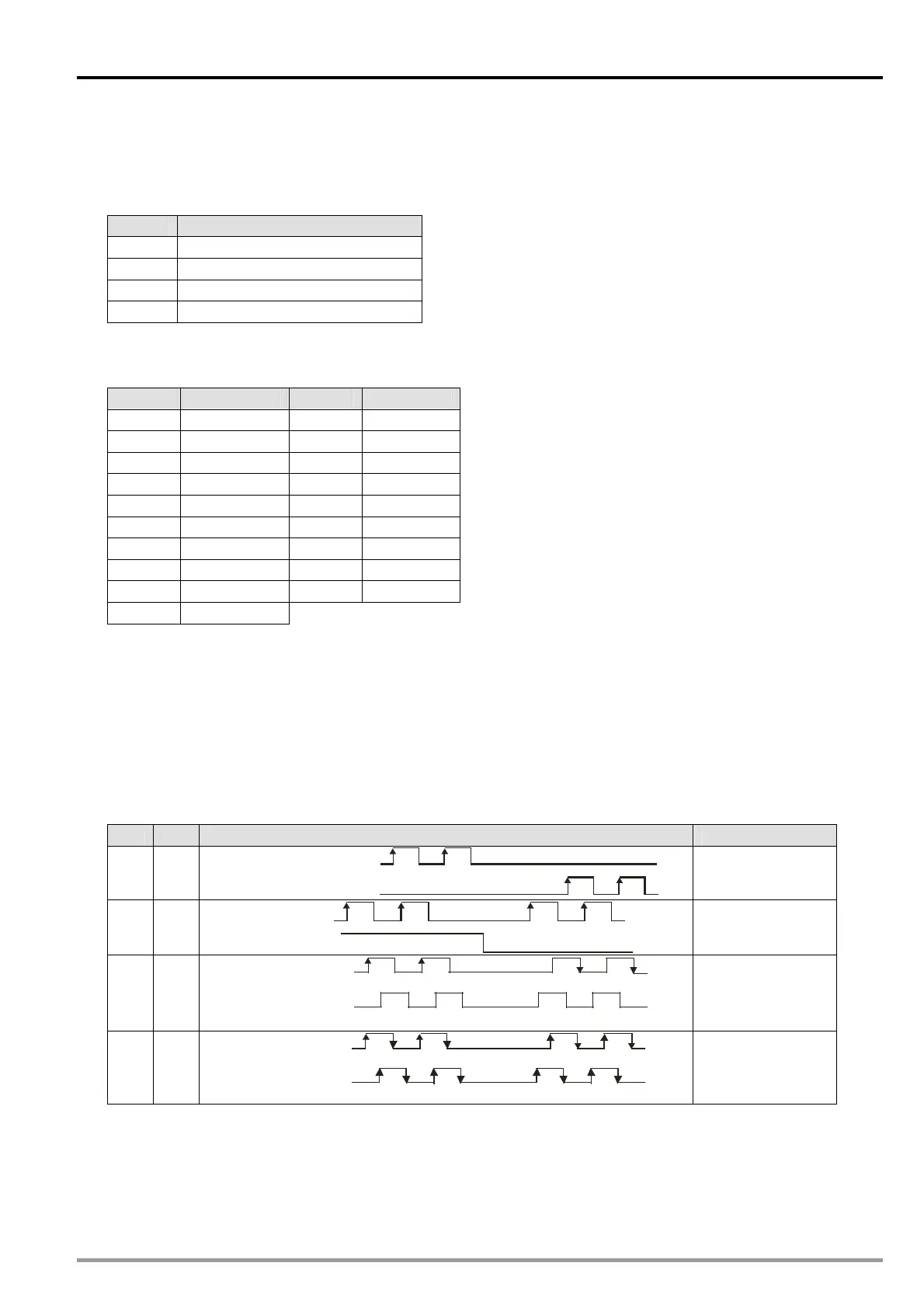

 Input terminal polarity setting
The polarity of input terminals is set by the corresponding bits of D1799. bit #=ON sets the input
terminal as NO contact while OFF sets the input terminal as the NC contact. For example, to set
MPGA0/MPGB0 as NO contacts, users have to set ON b1 and b2 of D1799, i.e. specify D1799=6.
D1799 (Input terminal polarity)
Bit# X-axis input terminal polarity
0 PG0
1 MPGB0
2 MPGA0
7 START0
 Input terminal digital Filter
D1806 High Byte: Filter coefficient of MPG0/MPG1. D1806 Low Byte: Filter coefficient of other input
points other than X points. Filter frequency: 85000/2
N+4
(kHz).
N kHz N kHz
1 2656.25 11 2.593994
2 1328.125 12 1.296997
3 664.0625 13 0.648499
4 332.0313 14 0.324249
5 166.0156 15 0.162125
6 83.00781 16 0.081062
7 41.50391 17 0.040531
8 20.75195 18 0.020266
9 10.37598 19 0.010133
10 5.187988
9.2.1.3 Setting an Input/Output Pulse Type
When Virtual Master is applied or the input pulses for Master are from Y axis of PM, settings of D1864
(MPG pulse input type) and D1816/D1896/D1976 (pulse output type) should match with each other, i.e.
if the source of Master is set as single phase (P/D), the output pulse type of Y axis should be single
phase as well. For wirings, simply connect MPGA0 (A0+, A0-) with Y axis output terminals (FP1+, FP1-)
and the setting is completed.
 Setting an input pulse type
MPG pulse input type setting: D1864
b9 b8
Input pulse type (positive logic) Description
0 0
FP Clockwise pulses
RP Counterclockwise pulses
Counting up/down
0 1
FP Pulses
RP Directions
Counterclockwise
Clockwise
Pulses+Directions
1 0
Counterclockwise
Clockwise
FP A-phase pulses
RP B-phas e pulses
A/B-phase pulses
1 1
Counterclockwise
Clockwise
FP A-phase pulses
RP B-phase pulses
Four times the
frequency of
A/B-phase pulses
DVP-20PM Application Manual
9-3
