Delta DVP-20PM User Manual

5 Applied Instructions and Basic Usage
5.10.23 Writing a Cam Point

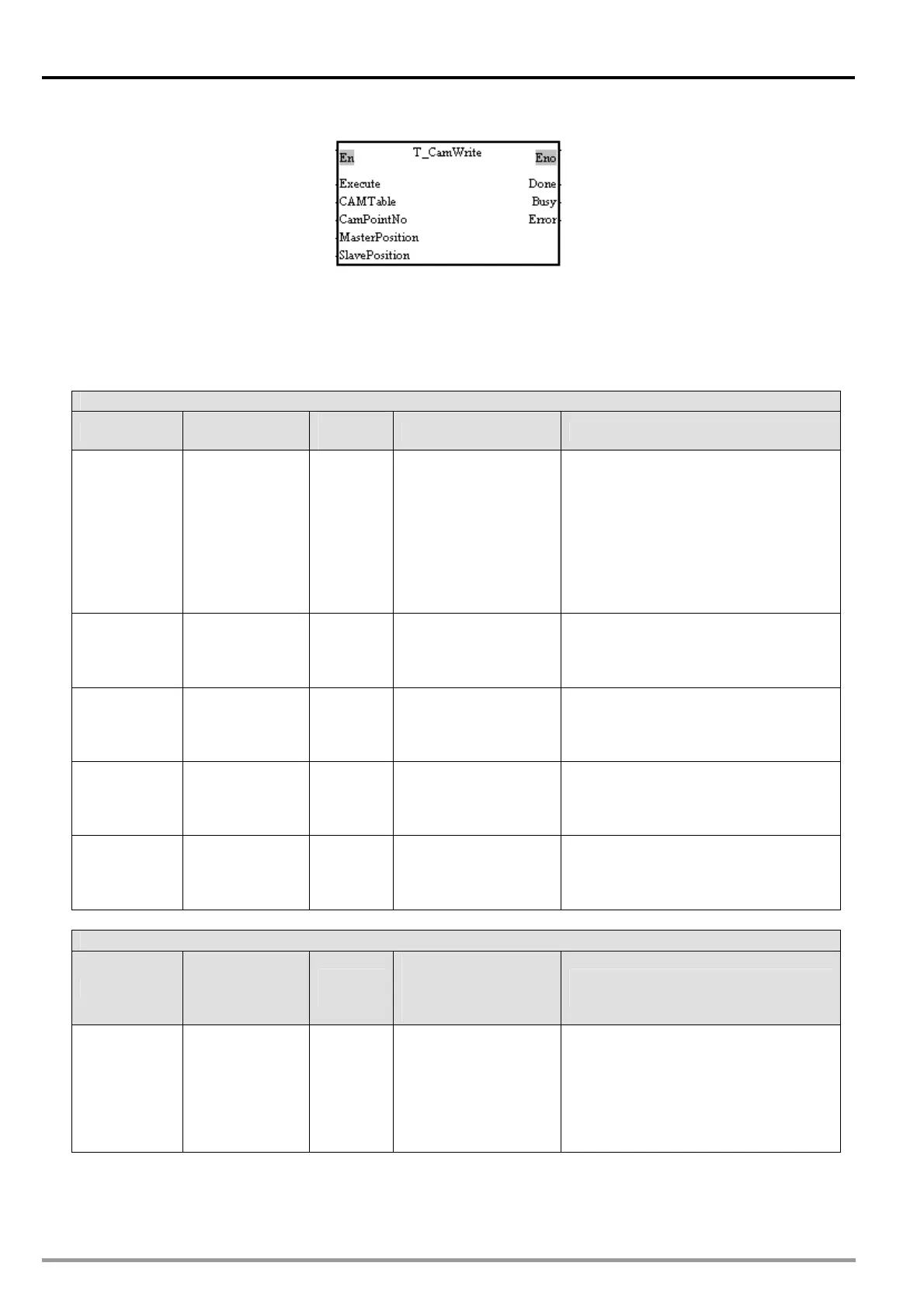

1. Motion control function block
The motion control function block T_CamWrite is used to modify a particular point in a cam chart. The
value of the CAMTable input pin indicates a cam chart. The value of the CamPoiontNo input pin
indicates a cam point number. The value of the MasterPosition indicates the position of the master axis
specified, and the value of the SlavePosition indicates the position of the slave axis specified.
2. Input pins/Output pins
Input pin
Name Function
Data
type
Setting value Time when a value is valid
Execute
The writing of a
cam point is
enabled when
there is a
transition in the
Execute input
pin’s signal
from low to
high.
BOOL True/False -
CAMTable Cam chart WORD K0~K2
The value of the CAMTable input pin
is valid when there is a transition in
the Execute input pin’s signal from
low to high.
CamPointNo
Cam point
number
DWORD K0~2047
The value of the CamPointNo input
pin is valid when there is a transition
in the Execute input pin’s signal from
low to high.
MasterPosition
Position of the
master axis
specified
DWORD
K-2,147,483,647~
K2,147,483,647
The value of the MasterPosition input
pin is valid when there is a transition
in the Execute input pin’s signal from
low to high.
SlavePosition
Position of the
slave axis
specified
DWORD
K-2,147,483,647~
K2,147,483,647
The value of the SlavePosition input
pin is valid when there is a transition
in the Execute input pin’s signal from
low to high.
State output pin
Name Function
Data
type
Time when there is
a transition in an
output pin’s signal
from low to high
Time when there is a transition in an
output pin’s signal from high to low
Done
The execution
of the motion
control function
block is
complete.
BOOL
 There is a
transition in the
Done output pin’s
signal from low to
high when the
writing of a cam
point is complete.
 There is a transition in the Done
output pin’s signal from high to low
when there is a transition in the
Execute input pin’s signal from
high to low.
DVP-20PM Application Manual
5-212
