5 Applied Instructions and Basic Usage

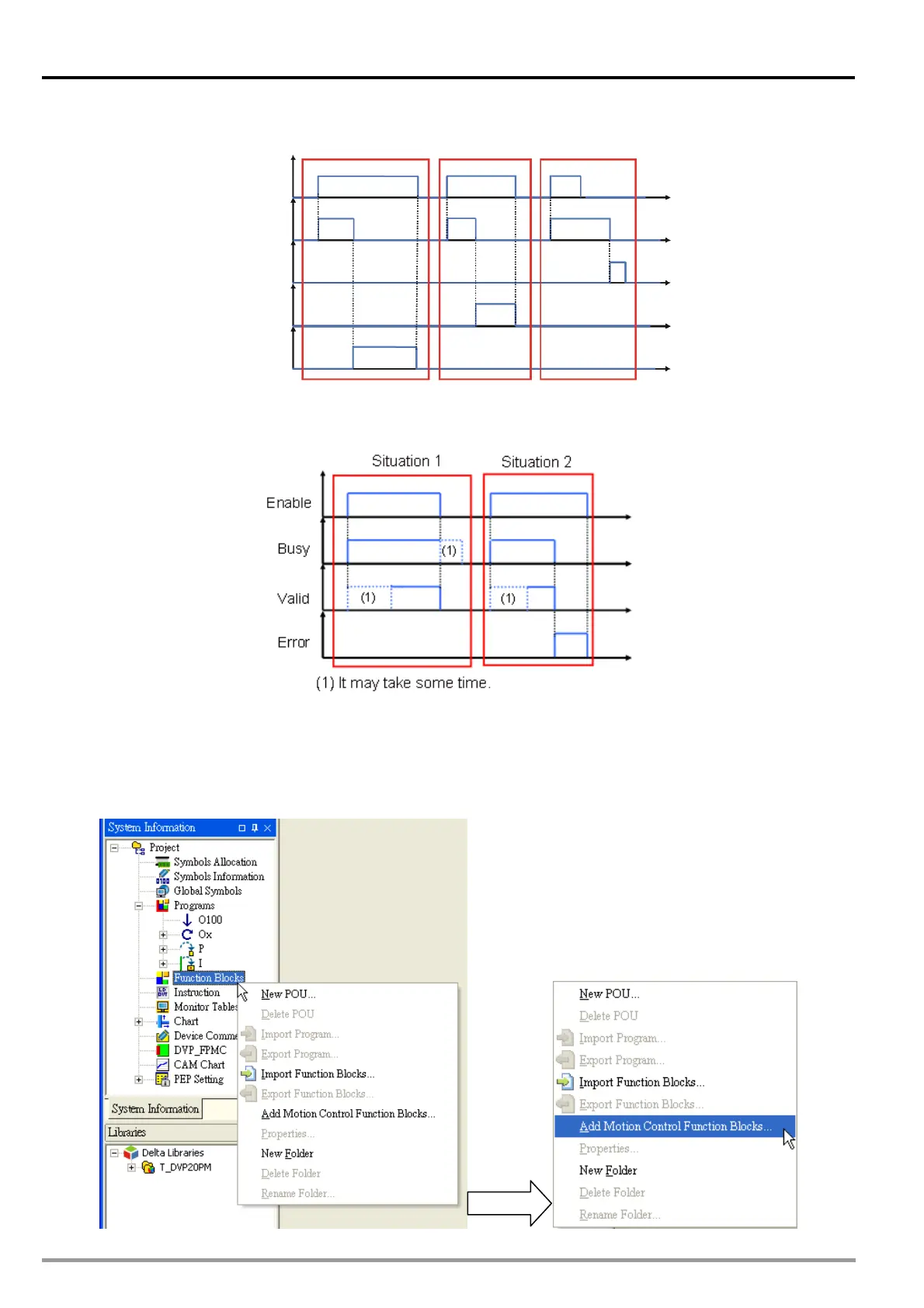

5.8.2 Timing Diagram for Input/Output Pins
Aborted
Error
Done
Busy
Execute
Situation 1
Situation 2
Situation 3
Situation 1: The execution of the motion control function block is interrupted.
Situation 2: An error occurs in the motion control function block.
Situation 3: The execution of the motion control function block is complete normally.
Situation 1: The motion control function block is executed normally.
Situation 2: An error occurs in the motion control function block.
5.8.3 Introducing the Use of PMSoft
The use of the motion control function blocks in PMSoft is introduced below.
(1) Right-click Function Blocks in the system information area in PMSoft.
DVP-20PM Application Manual
5-148
