U60 Diagnostic Ultrasound System User Manual Obstetric Measurements and Calculations
- 133 -
8.2.7. Ductus V
To measure Ductus V:
1. In the PW-Obstetric measurement menu, select Ductus V.
2. Measure Ductus V by the method of D trace measurement.
Reference Section 6.5.4 Generic Measurements in D Mode.
3. The results are displayed in measurement result window.
4. To begin a new Ductus V measurement, repeat steps 1 through 3. You can measure a
maximum of one group of data.
8.3. Obstetric Measurements and Calculations in M mode
1. Press Transducer, select the desired probe model and the exam mode Obstetric-1/3,
Obstetric-2/3, or Fetal Cardiac, and then press OK, or double click on the exam type.
2. Press M to enter B+M mode, or press M again to enter single M mode.
3. Press Measure to activate the application measurement function. The system displays the
measurement menu, as shown below.

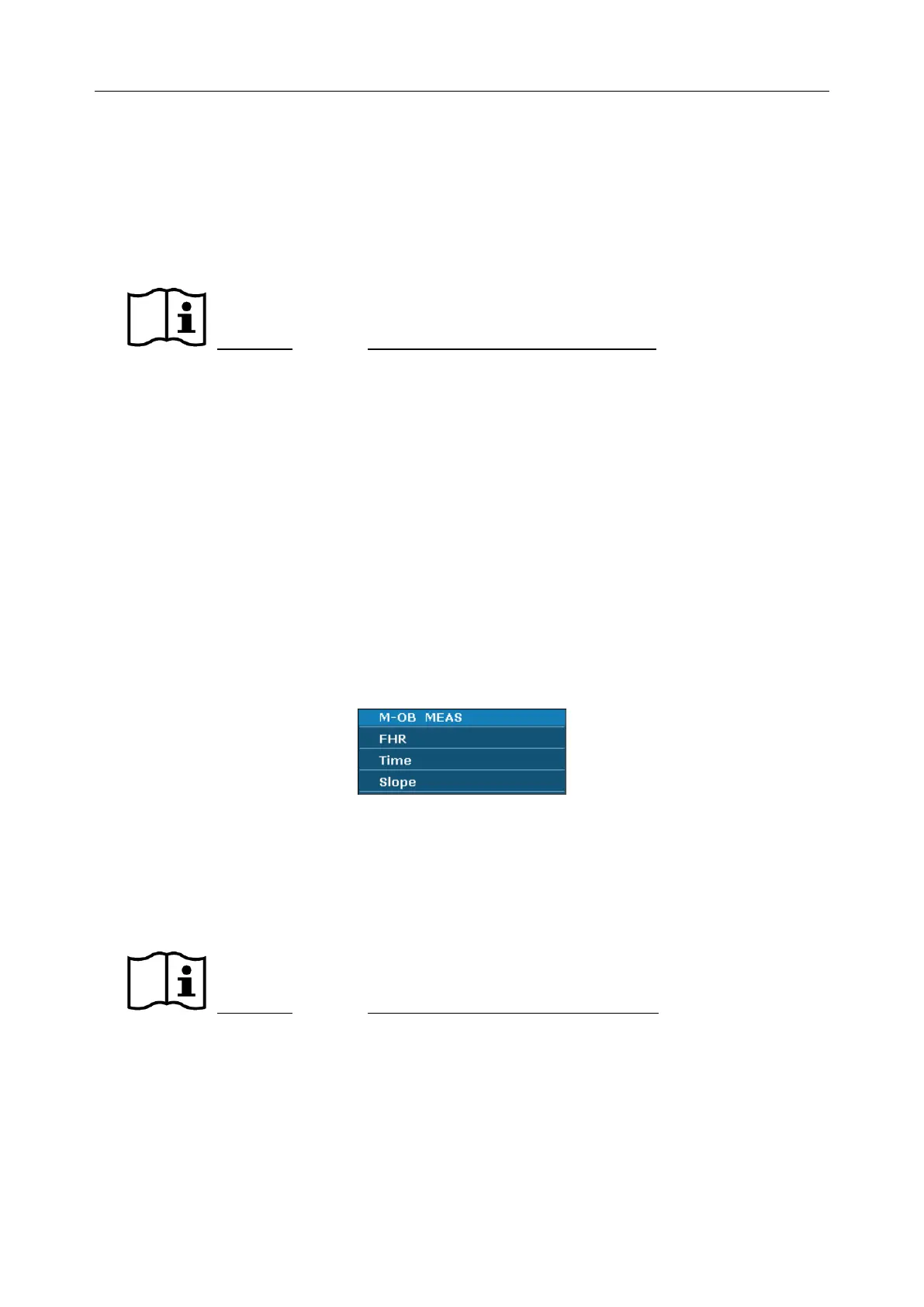

Figure 8-4 Obstetric Measurement and Calculation Menu in M mode
Items of Measurement and Calculation: FHR
To measure FHR:
1. In the M-Obstetric measurement menu, select FHR.
2. Measure FHR by the method of heart rate measurement.
Reference Section 6.5.2 Generic Measurements in M Mode.
3. The results are displayed in measurement result window.
4. To begin a new FHR measurement, repeat steps 1 through 3. You can measure a maximum of
one group of data.
8.4. Results
Obstetric results include Growth Curve and OB Worksheet.
