EDAN U60 - Chapter 10 Gynecology Measurements & Calculations; Measurements and Calculations in B Mode

U60 Diagnostic Ultrasound System User Manual Gynecology Measurements and Calculations
- 155 -
Chapter 10 Gynecology Measurements & Calculations
The gynecology examination is usually performed in the B mode and PW mode.
10.1. Measurements and Calculations in B Mode
1. Press Transducer, select the desired probe model and the exam mode Gynecology/
Endovaginal, and then press OK, or double click on the exam type.
2. Press B to enter the B mode.
3. Press Measure to activate the application measurement function. The system displays the
measurement menu, as shown below.

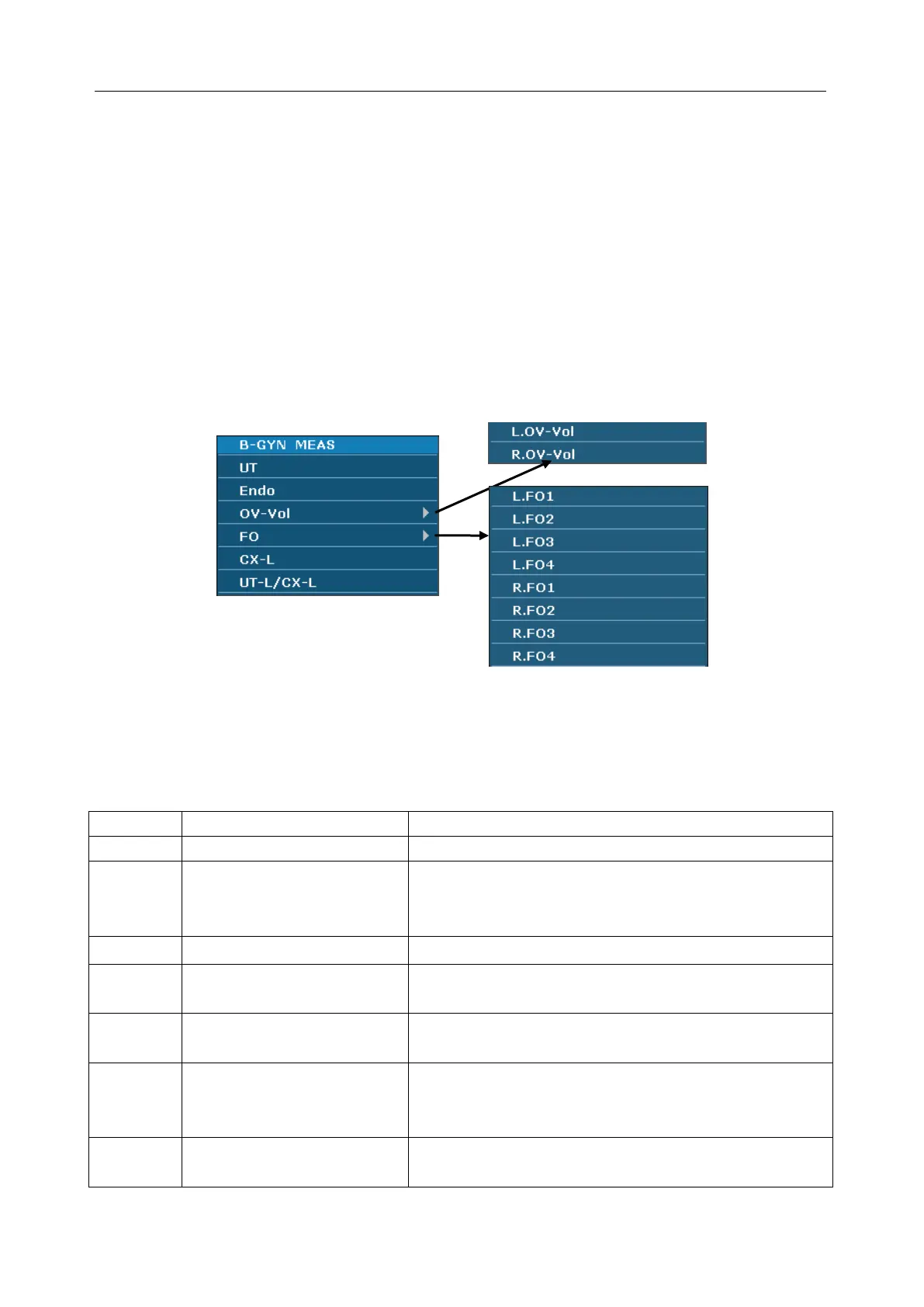

Figure 10-1 Gynecology Measurement and Calculation Menu in B Mode
To determine the volume of right ovary or left ovary, perform three measurements: length, width,
and height. The system calculates the volume.
The gynecology measurement & calculation items of the B mode are as follows.
Label
Description
Method
UT
Uterus
UT (mm) = UT-L (mm)+UT-W (mm)+UT-H (mm)
UT-L
UT-W
UT-H
Uterus Length
Uterus width
Uterus Height
Distance (mm)
UT-V
Uterus Volume
UT-V(mm
3
) =π/6×L(mm)×W(mm)×H(mm)
Endo
Uterus Endo- membrane
Thickness
Distance (mm)
L. OV-Vol
Left Ovary Volume
L. OV-V (cm
3
) = 0.523 x L. OV-L (mm) x L. OV-W (mm) x
L. OV-H (mm)/1000
L. OV-L
L. OV-W
L. OV-H
Left Ovary Length
Left Ovary Width
Left Ovary Height
Distance (mm)
R. OV-Vol
Right Ovary Volume
R. OV-V (cm
3
) = 0.523 x R. OV-L (mm) x R. OV-W (mm)
x R. OV-H (mm)/1000
