U60 Diagnostic Ultrasound System User Manual Operation
- 90 -
and then press Set to anchor start position, and the measurement mark turns to a
vertical line.
4. Roll the trackball to move the second measurement maker on the peak systole
following two complete cycles and then press Set to anchor end position.
5. Roll the trackball and press Set to begin a new heart rate measurement. You can
measure a maximum of eight groups of data. The outcome will be displayed in
the measurement result window.
6. Press Caliper to finish and exit.

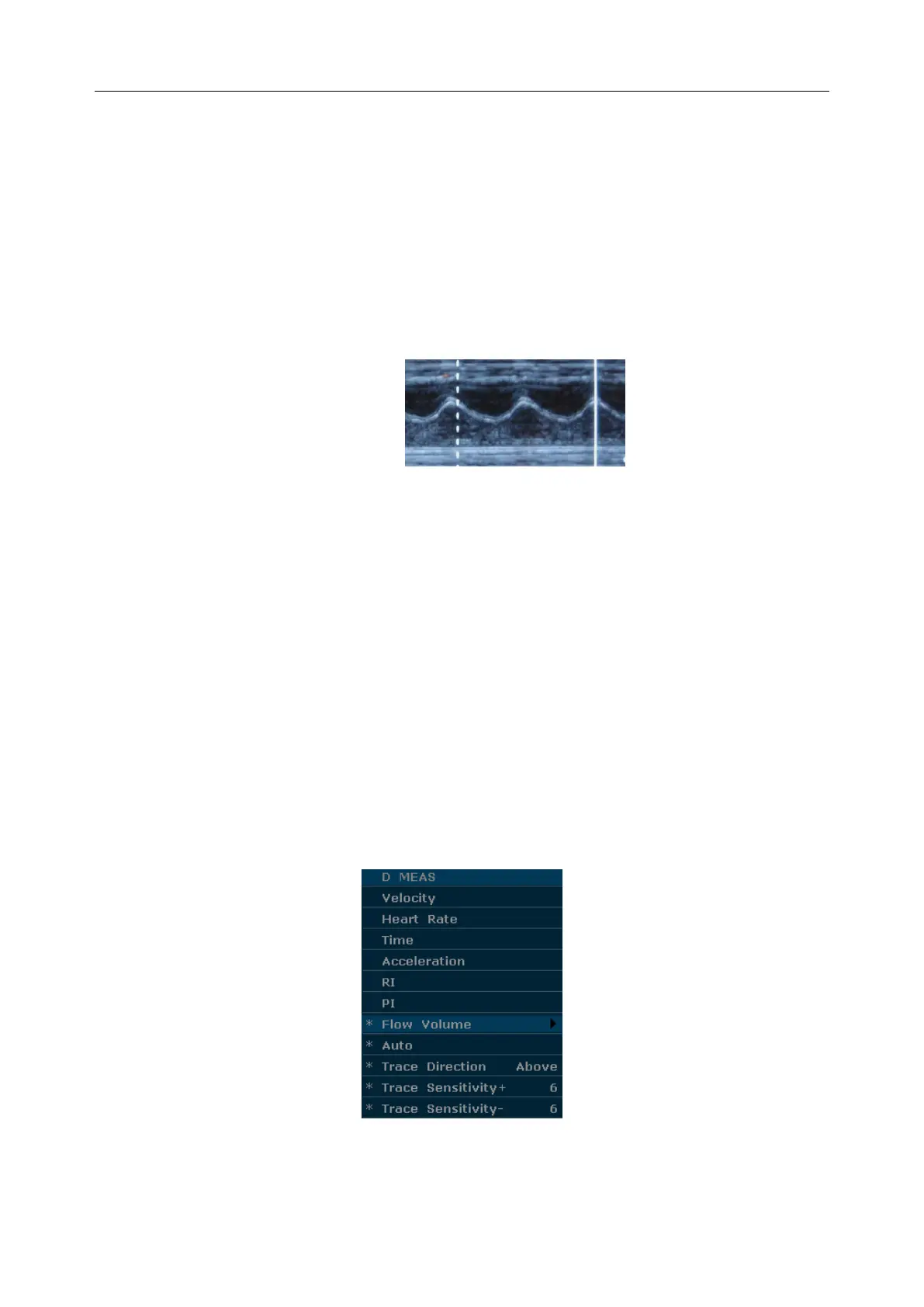

Figure 6-17 Heart Rate Measurement
NOTE:
1. In B+M mode, you should define the M Mark position, and then begin the
measurement.
2. During heart rate measurement, make sure the start point and end point are exactly in
two cardiac cycles. Otherwise, the measurement result will be incorrect.
6.5.3. Generic Measurements in Color/PDI Mode
The generic measurements in Color /PDI mode are the same as those in B Mode
6.5.4. Generic Measurements in D Mode
The measurement menu is shown below.
Figure 6-18 PW Mode Generic Measurement and Calculation Menu (In non-cardiac exam)
