Chapter 9 Cardiac Measurements and Calculations
The cardiac examination is usually performed in the B mode, B+M mode or PW mode.
Press Transducer, select the desired probe model and the exam mode Adult Cardiac/ Pedia
Cardiac, and then press OK, or double click on the exam type.
The result of ventricle volume measurement is more exact in two-dimension. You can get the
two-dimension heart image of end diastolic and end systolic exactly and conveniently in the B+M
mode. So we suggest that you do the cardiac measurement and calculation in the B+M mode.
9.1. Cardiac Measurements and Calculations in M Mode
Press M to enter B+M mode, or press M again to enter single M mode. Press Measure to activate
the application measurement function. The system displays the measurement menu, as shown
below.
1. Items of Measurement and Calculation
M-CARDIAC MEAS: LV, Mitral, Heart Rate, LVET, and LVMW.
2. Items of input
Heart Rate, LVET, and Height &Weight.
The formulas of B+M mode and M mode cardiac LV measurement include TEICHHOLZ and
CUBE, as shown below, and the default formula is TEICHHOLZ.

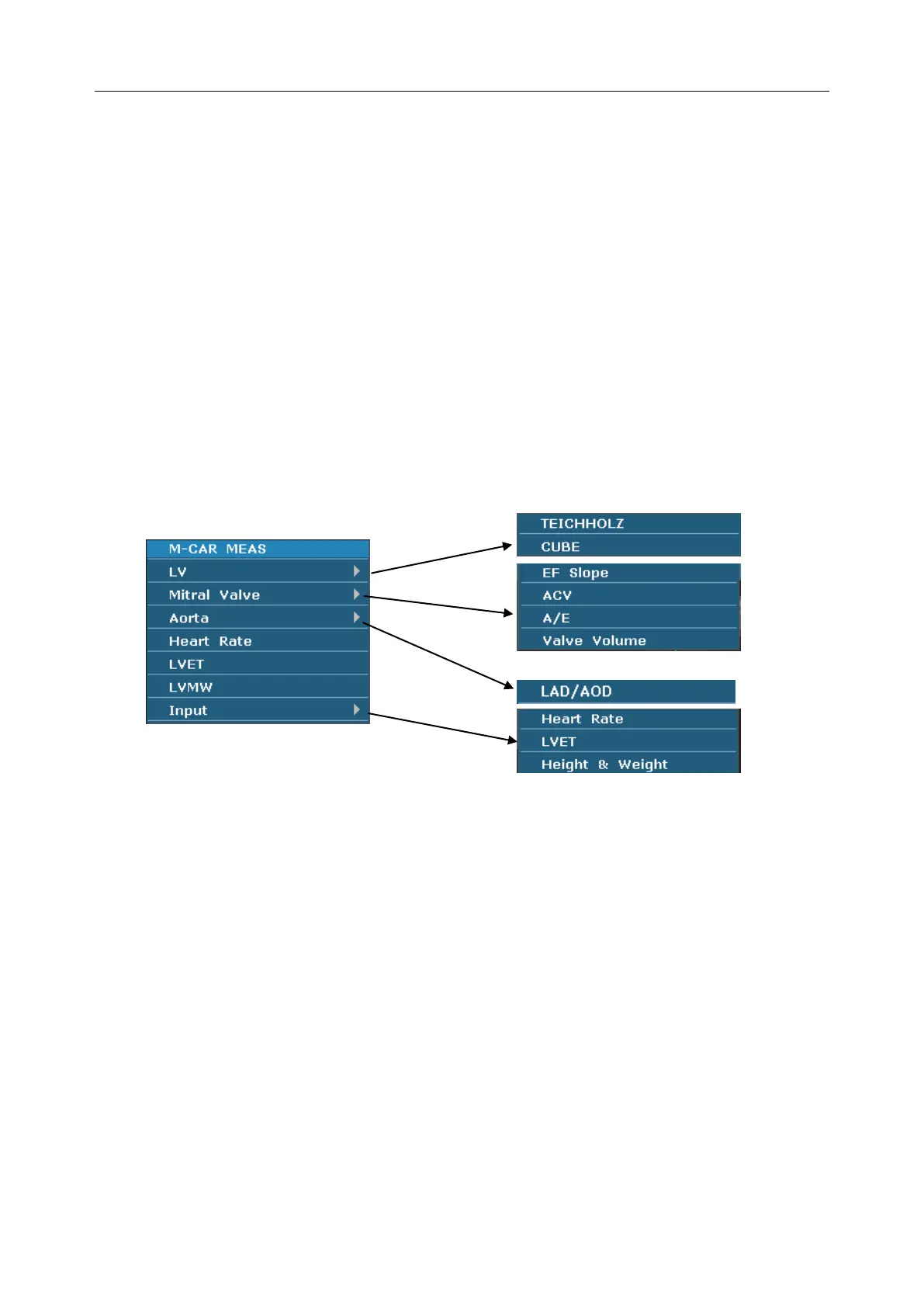

Figure 9-1 M Mode Cardiac Measurement and Calculation Menu
To Next Page
