U60 Diagnostic Ultrasound System User Manual Operation
- 106 -
6.12.2. File Manager
You can use the file manager to perform the file management or browse the images.
In real-time or frozen status, press File to display file menu, and select File Manager, the File
Manager dialog box pops up, as shown below.

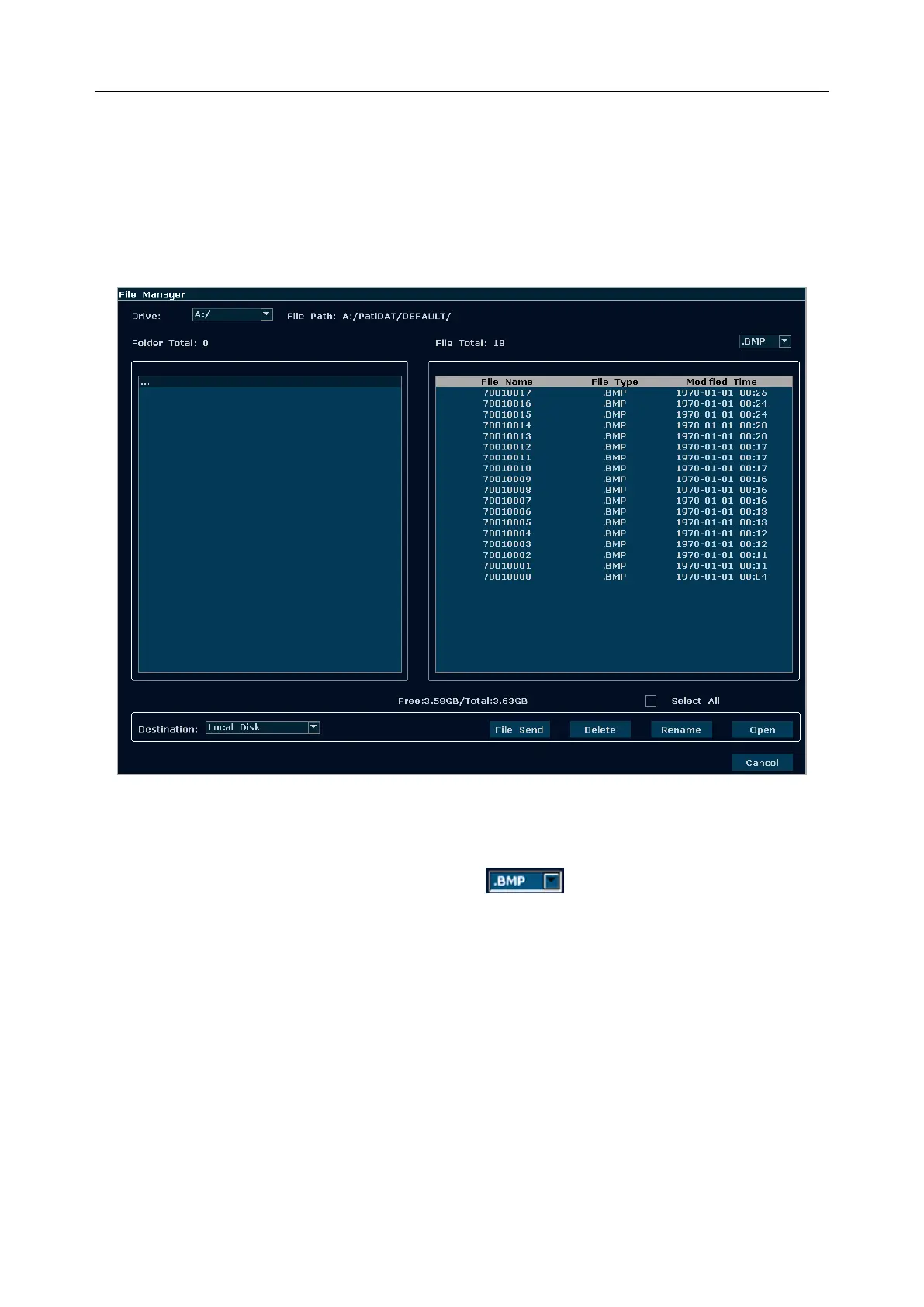

Figure 6-26 File Manager
Basic operations:
Select a file format from the pull-down menu , such as BMP/ JPG/ DCM/ FRM/
CIN/ AVI/ PDF to display files in one type, or select *.* to display all files.
Point to a file, press Set to select it, and press Set again to deselect it; the system supports
multi-choice by default; check the Select All checkbox to select all files, and then you can
perform following operations: File Send, Delete and Open.
Click on the headings of the file list: File Name, File Type or Modified Time to rearrange
the file sequence according to the file name, file type or modified time (in
ascending/descending order).
