To uninstall a battery:
1. Turn off the device, and press the button on the battery compartment door and pull the door
out.
2. Turn the lever counterclockwise to hide it.
3. Pull the battery out.
4. Replace the battery compartment door.

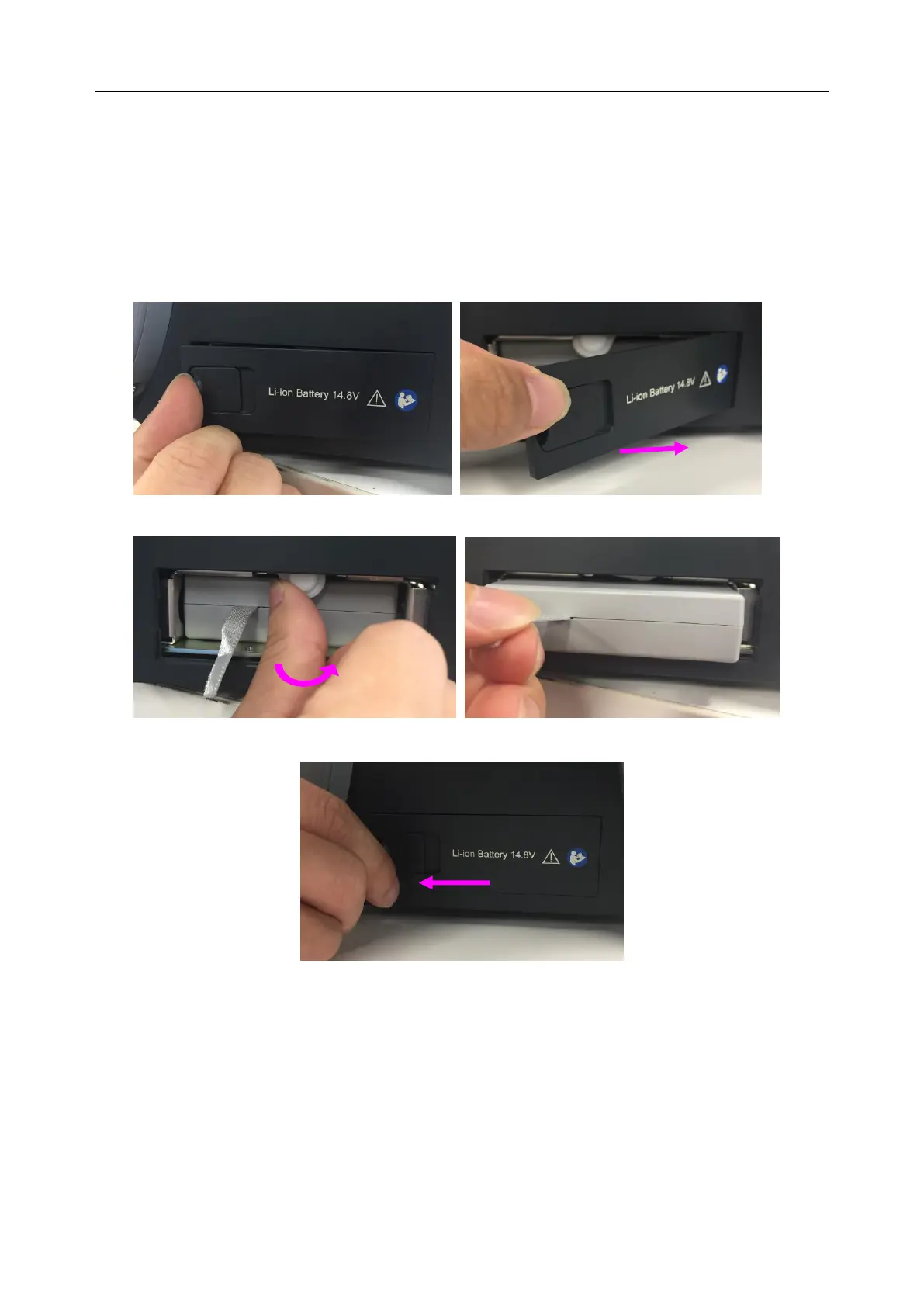

Figure 4-4 Uninstalling Battery from Main Unit
4.3.2. Connecting and Disconnecting Probes
NOTE:
Ensure that the system is shut down, or the image is frozen, before connecting and
disconnecting probes.
①Press the button
②Pull the battery compartment door out
③Turn the lever counter-clockwise to hide it
④Pull the battery out
⑤Replace the battery compartment door
