U60 Diagnostic Ultrasound System User Manual System Control
- 51 -
5.7.4. Probe Preset
In preset menu, move the cursor to highlight Probe Preset and press Set to display Probe preset
dialog box, as shown below.

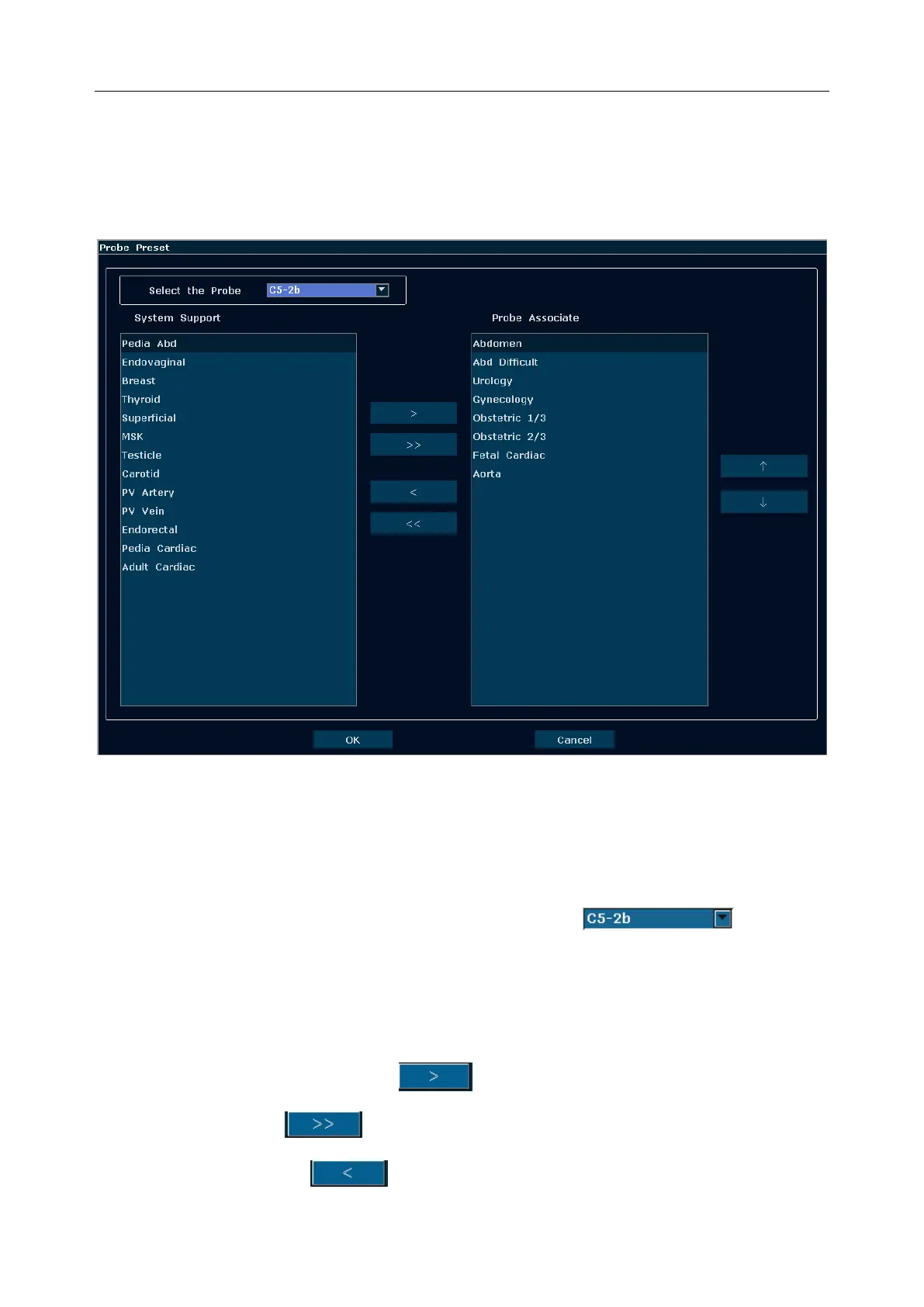

Figure 5-12 Probe Preset Dialog Box
The Probe preset dialog box displays probe selection and Exam mode selection. This page is
used to assign an exam type to a specific probe.
Operation:
1. Select the desired probe: move the cursor onto the column “ ”, and select
the probe model you need through the pull-down menu.
2. Select exam mode for the probe: the left side is the “System Support”, which lists all exam
modes supported by the system. The right side is the “Probe Associate”, which lists exam
modes already associated with the probe. To add an exam associated with the probe, select
the exam from the left and click on . To add all of the different exams from the left
to the right, click on . To delete an exam associated with the probe, select the exam
first, and then click on . To delete all exams associated with the probe, click on
