displays a zooming window, rotate the zooming adjustment knob to adjust magnification factor,
and press Set to enter the zoomed status. But in the zoomed B+C status, the ROI cannot be
displayed or moved.
The Zoom range is 1.14-4.0 (7 levels)
6.11. CINE Review
Activate the device and enter the real-time imaging mode. Enable the system to collect images
before CINE Review playback. The cine function includes frame-by-frame playback (manual
playback) and motion playback (automatic playback). The cine review symbol is displayed on the
bottom of the screen, as shown below:

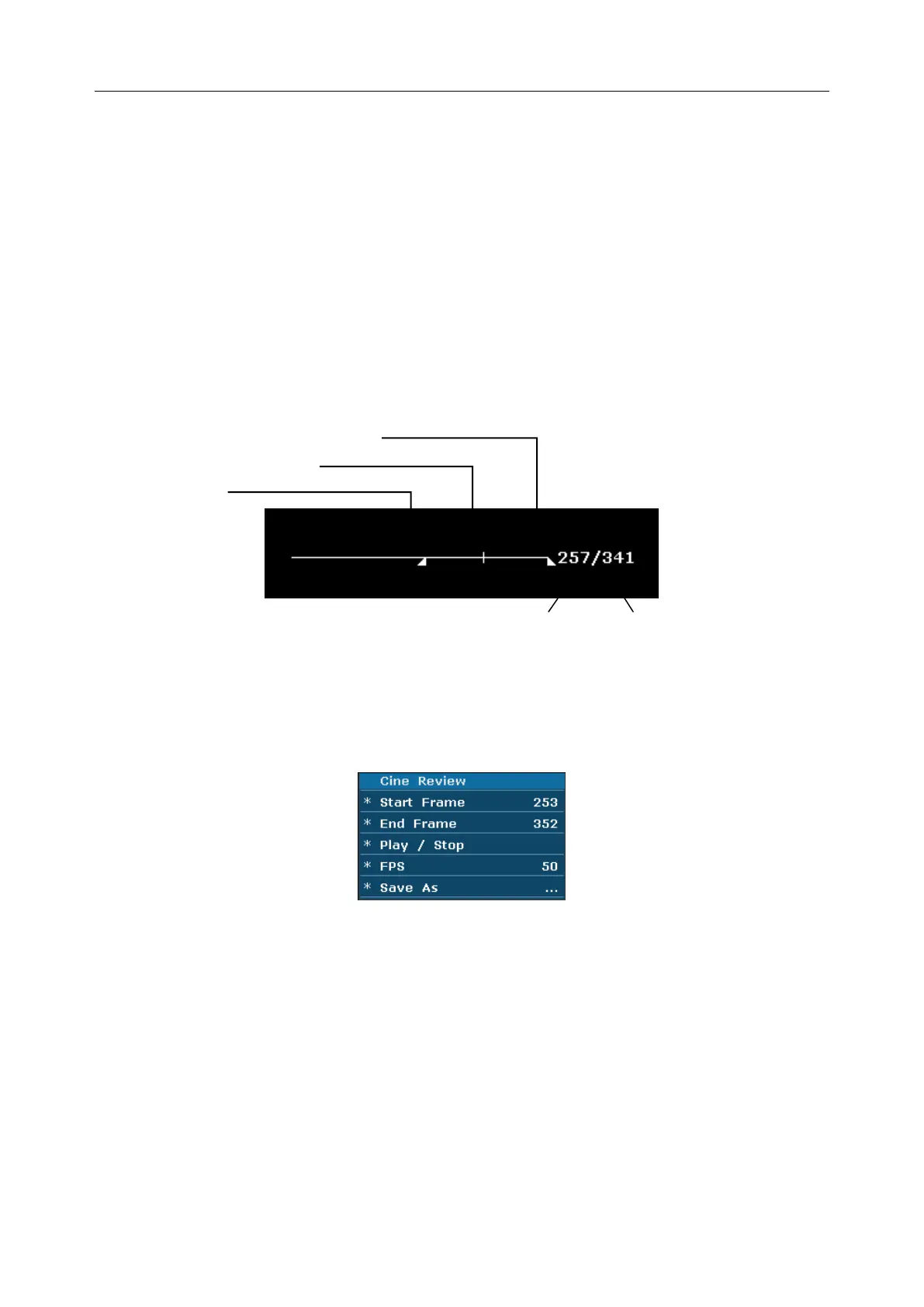

Figure 6-22 CINE Review Progress Bar
To perform the manual playback:
1. Press Freeze to freeze the image, and the system displays the cine menu, as shown below:
Figure 6-23 Cine Review Menu
2. Roll the trackball to start playing back frame by frame. Roll the trackball to the right to
advance the cine data one frame at a time, or to the left to move the data in reverse. The loop
of data wraps around when either end is reached. As the trackball moves, the current cine
number is displayed on the right of the CINE Review Symbol.
3. Press Cine to exit manual playback mode, or press Freeze to exit the CINE Review playback
and enter the real-time scanning status.
