6.5.1. Generic Measurements in B Mode
The default measurement of B mode is distance measurement. B mode measurement menus are
shown as follows:

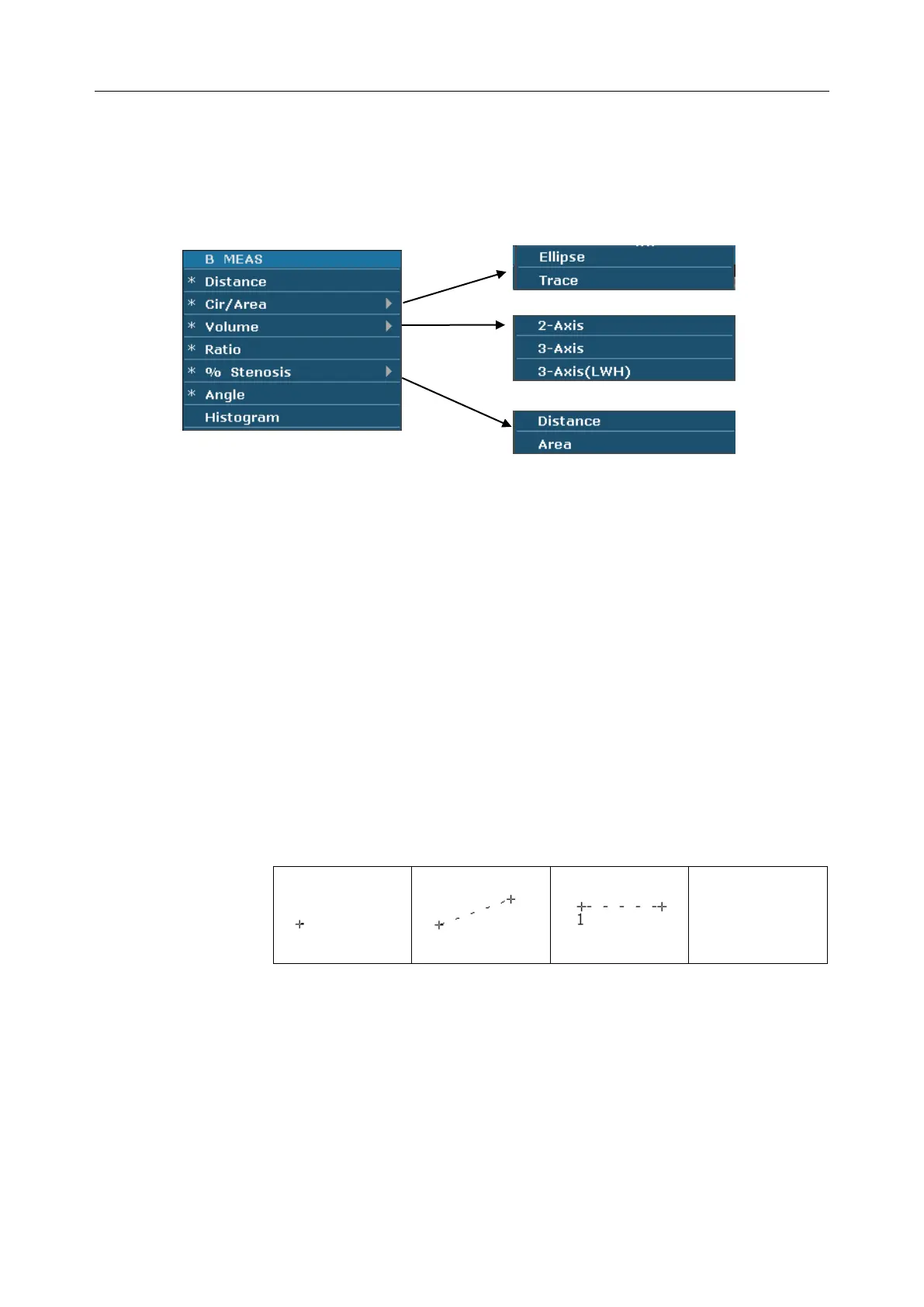

Figure 6-3 B Mode Generic Measurement and Calculation Menu
To measure distance:
1. Press Caliper to activate generic measurement function.
2. Roll the trackball to highlight Distance, press Set to activate a
measurement cursor “+” on the screen.
3. Roll the trackball and press Set to anchor the start point.
4. Roll the trackball and press Set to anchor the end point.
5. Roll the trackball and press Set to begin a new distance measurement.
You can measure a maximum of eight groups of data. The outcome
will be displayed in the measurement result window, as shown below.
6. Press Caliper to finish and exit.
Figure 6-4 Distance Measurement and the Results
Ellipse Method
To measure Circumference / Area:
1. Press Caliper to activate generic measurement function.
2. Roll the trackball to highlight Cir/Area. Then select Ellipse, and
press Set.
3. Roll the trackball and press Set to anchor the start point of fixed
To Next Page
