U60 Diagnostic Ultrasound System User Manual System Control
- 38 -

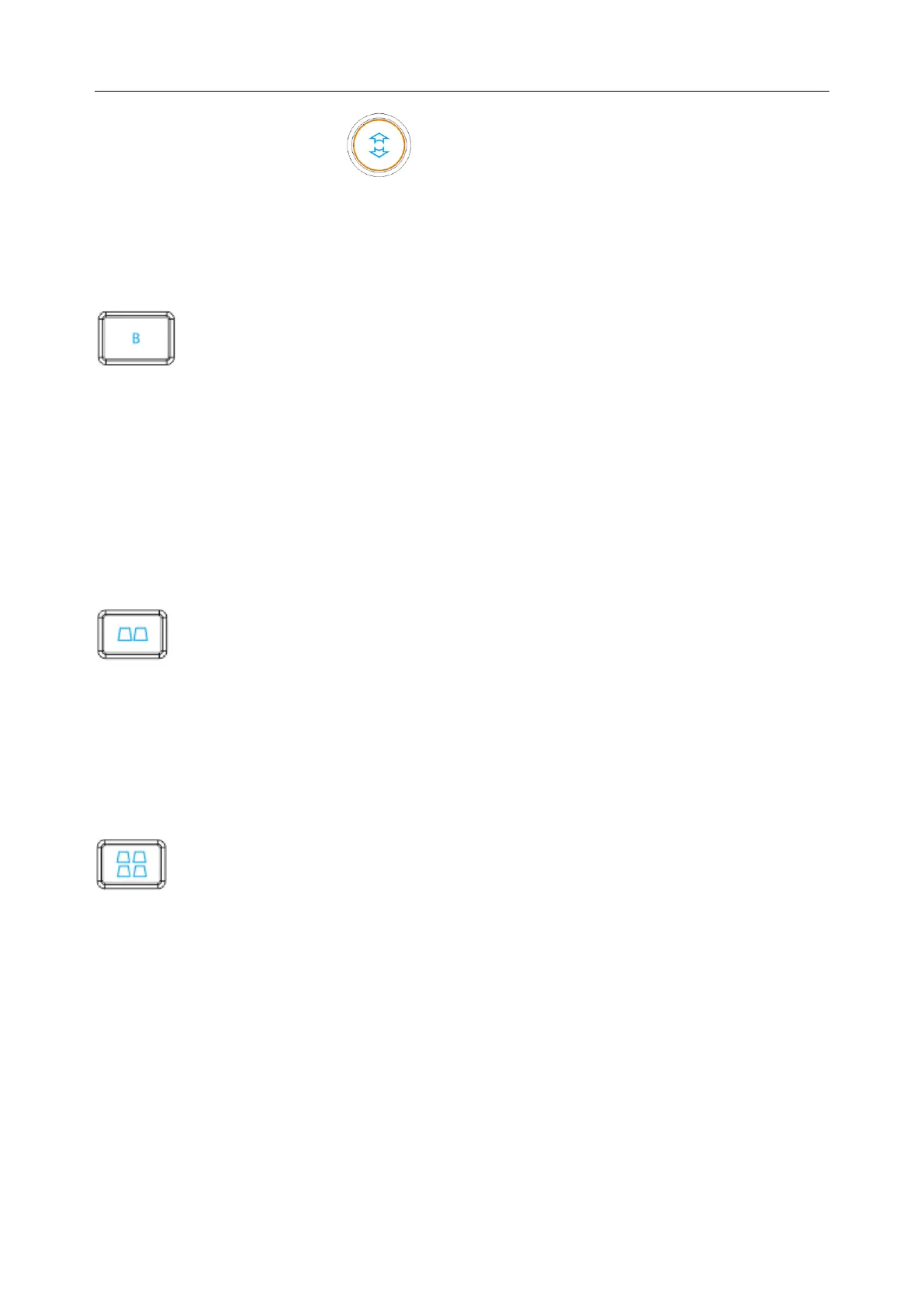

Page down: You can press on menu controls panel to flip through pages of the
menu controls field. Press the key again, and it returns to the first page circularly if the
current page is the last one.
5.4.5. Imaging Functions
B mode Imaging Control
Press this key to enter the B mode. The system displays a single real-time B mode image.
B indicates brightness, or two-dimensional (2D) gray scale imaging.
NOTE:
To return to a real-time B mode image from any imaging mode, press B control. This also
deletes all measurements, calculations, comments, or body marks that are displayed on
the screen.
2B mode Imaging Control
This key has two functions:
Press this key to enter the 2B mode.
Press this key to activate one of the dual images. The probe direction of the activated image
is brighter than that of the frozen image.
4B mode Imaging Control
Press this key to enter the 4B mode. The system divides the image area into four quadrants: the
first quadrant is on the top left, the second on the top right, the third on the bottom left, and the
fourth on the bottom right.
Press it repeatedly to active one of the four images. The probe direction of the activated image is
brighter than the direction of the frozen images. The four images are obtained separately and only
one image at a time is displayed in real time.
