15.3. Replacing Fuses
You can replace the fuses if necessary.
Step 1. Pull out the fuse-box using tweezers;
Step 2. Use the tweezers to pull the fuses out through the small hole on the top of the box;
Step 3. Put new fuses (φ5×20, T3.15AH250V) provided by EDAN in position, and reposition
the fuse-box.
Step 1
Step 2
Step 3

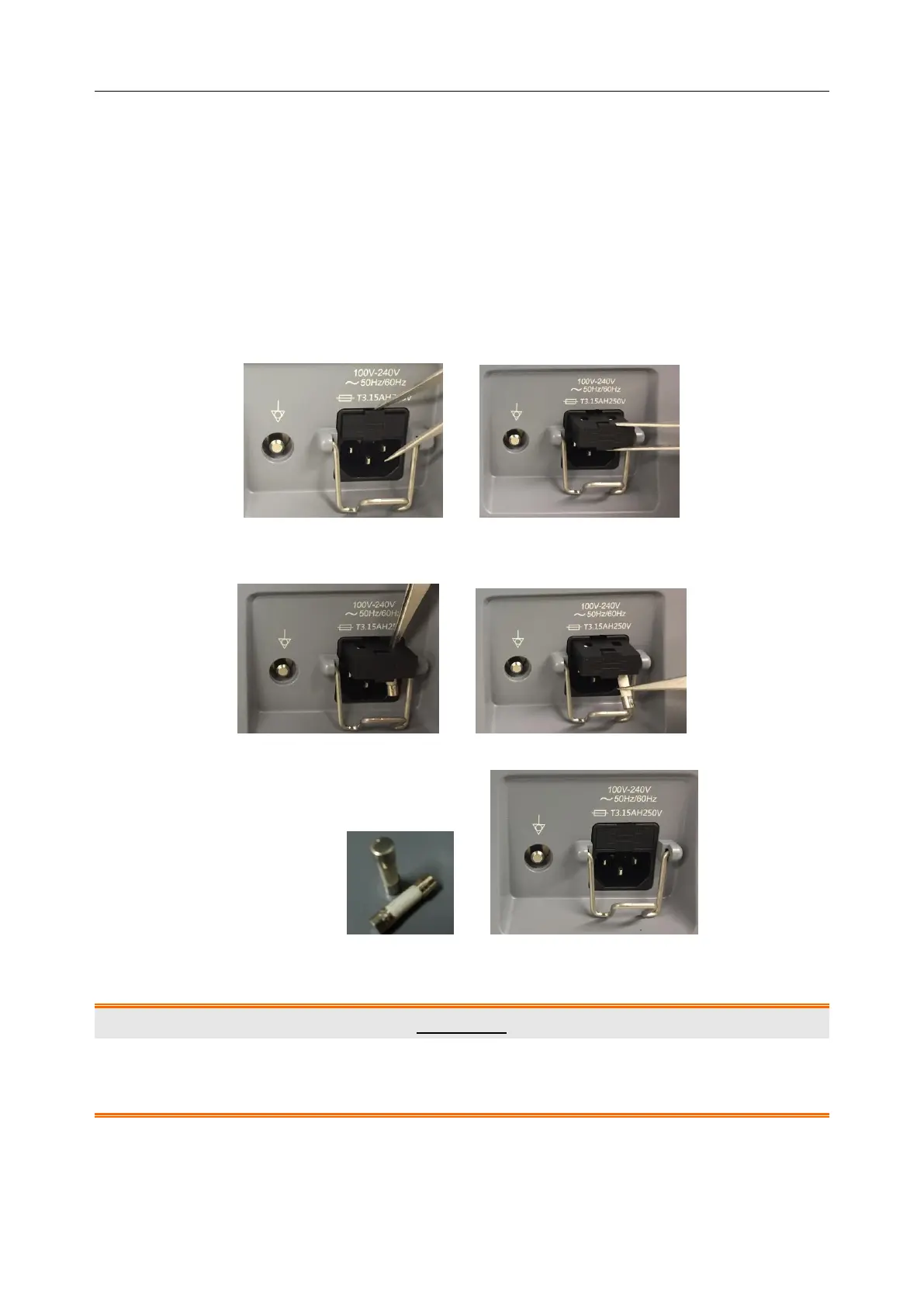

Figure 15-4 Replacing Fuses
WARNING
Ruptured fuse must only be replaced with those of the same type and rating as the
original.
