10.2. Measurements and Calculations in PW Mode
1. Press Transducer, select the desired probe model and the exam mode Gynecology/
Endovaginal, and then press OK, or double click on the exam type.
2. Press PW to display the sample line, and press this key again to enter the PW mode.
3. Press Measure to activate the application measurement function. The system displays the
measurement menu, as shown below.
Items of Measurement and Calculation
L UT A, R UT A, L OV A, and R OV A.
Submenu of the gynecology
measurement items in the PW
mode:

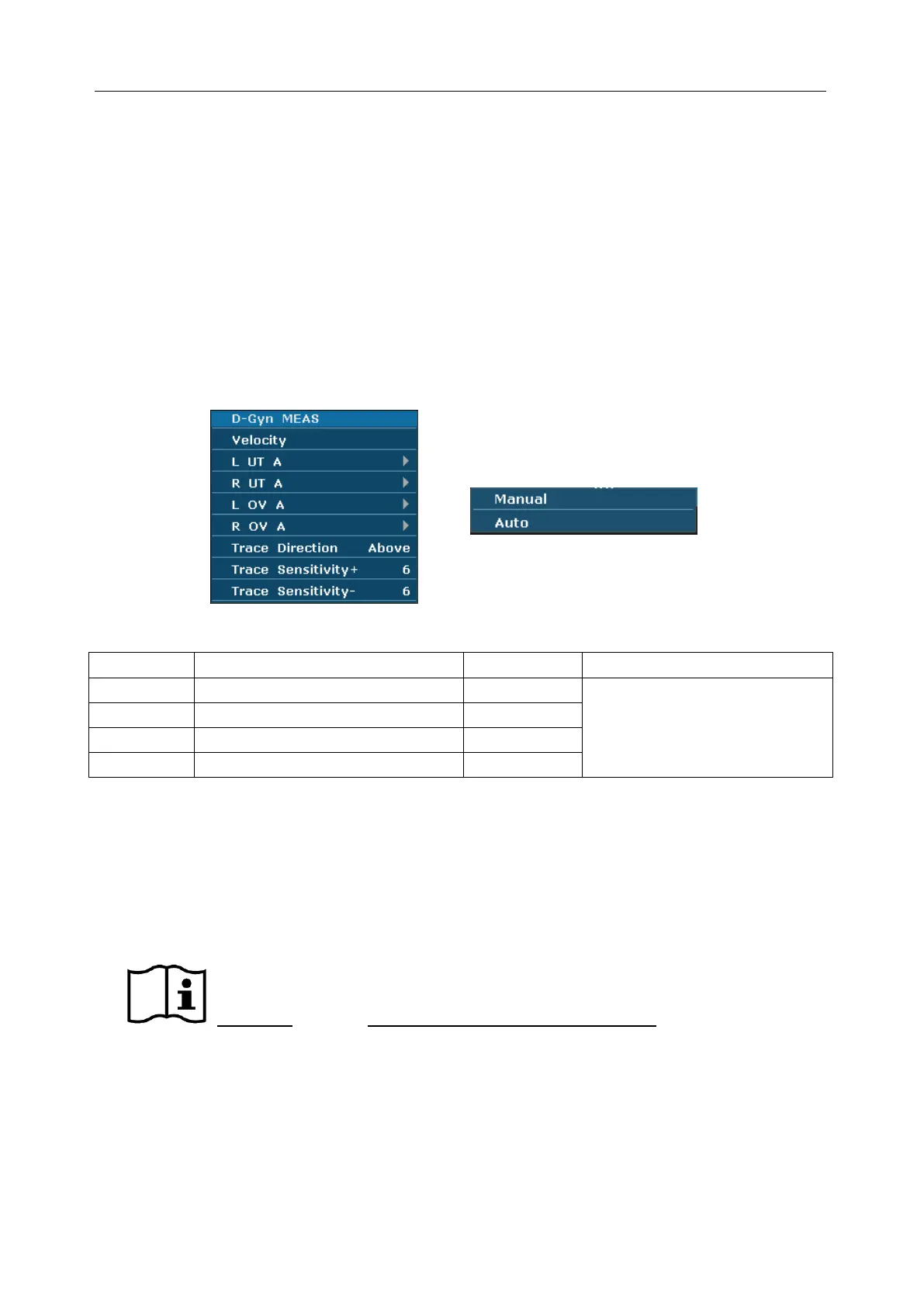

Figure 10-2 Gynecology Measurement and Calculation Menu in PW Mode
Label
Description
Channel
Method
L UT A
Left Uterus Aorta
1
D trace
R UT A
Right Uterus Aorta
1
L OV A
Left Ovary Aorta
1
R OV A
Right Ovary Aorta
1
Table 10-2 Gynecology Measurement and Calculation Items in PW Mode
10.2.1. L UT A
1. In the PW-gynecology measurement menu, select L UT A.
2. Measure L UT A by the method of D trace measurement.
Reference Section 6.5.4 Generic Measurements in D Mode.
3. The results are displayed in measurement result window.
4. You can measure a maximum of one group of data. To begin a new L UT A measurement,
repeat steps 1 through 3.
