U60 Diagnostic Ultrasound System User Manual System Control
- 47 -
5.6. Dialog Box Operation
The dialog box may have a few tabs, as shown below. You can select one tab at a time with
trackball and Set. Also, you can modify the parameter following the prompt instruction, and then
highlight OK and press Set to save the modified parameters and close the dialog box; or highlight
Cancel to give up the modification and close the dialog box directly.

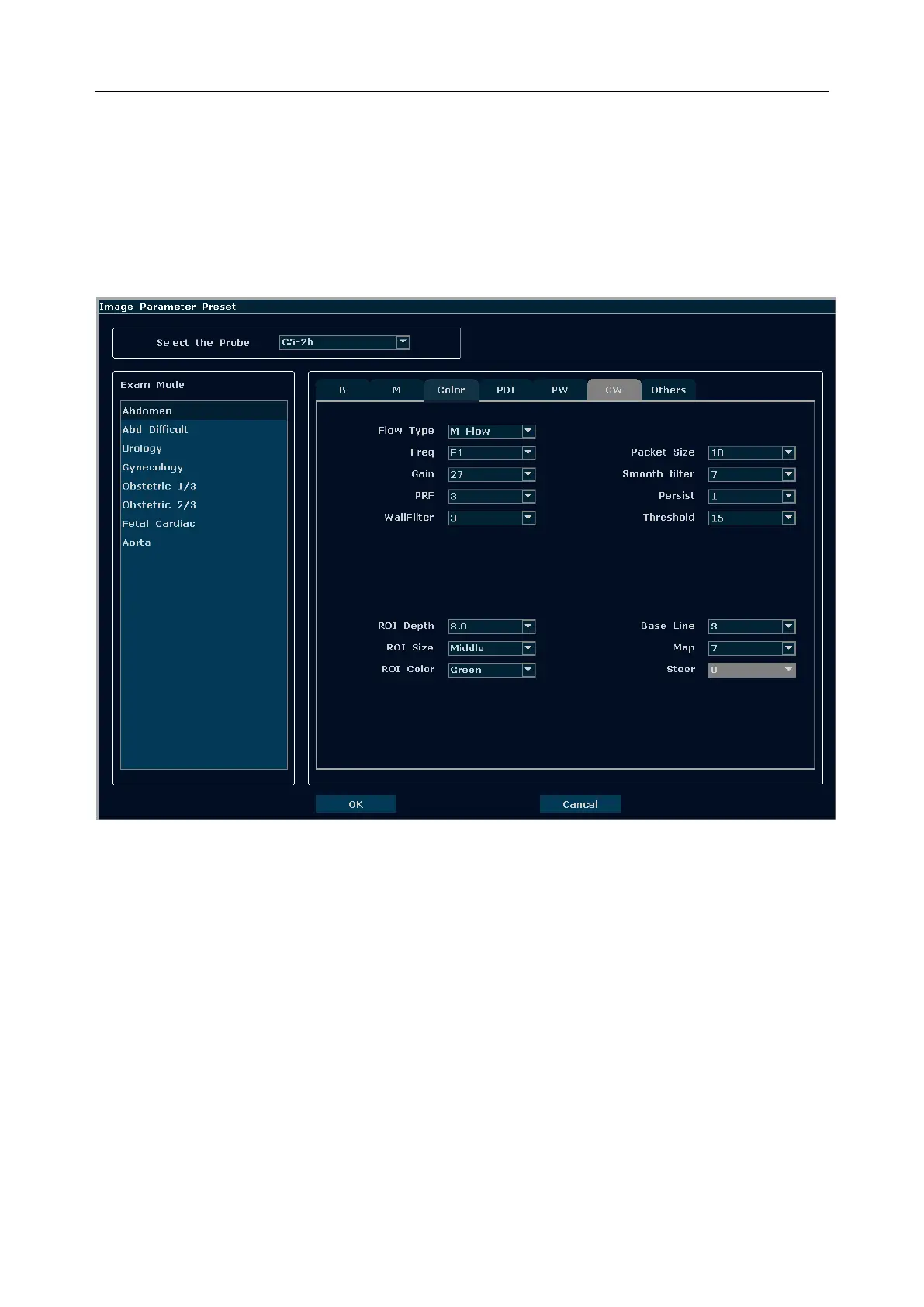

Figure 5-9 Image Parameter Preset Dialog Box
