U60 Diagnostic Ultrasound System User Manual System Control
- 53 -
prompt “Delete the exam?” Click on Yes to delete the exam, or click on No to exit.

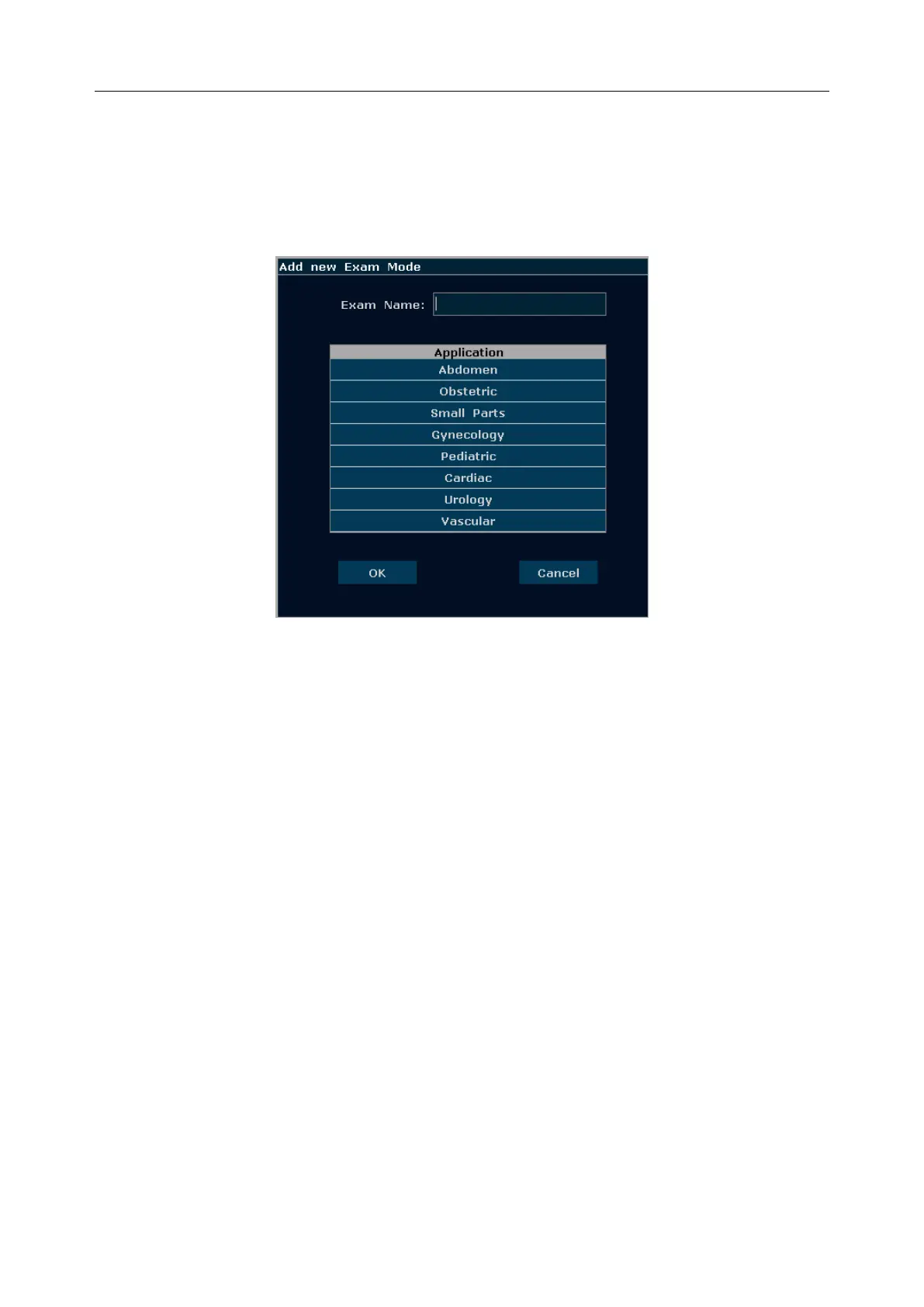

To add an exam: Press Add to display the Add new Exam Mode dialog box, as shown
below. Input an exam name in the “Exam name” blank, select an application for the exam
upon your needs, and press OK to close the dialog box, and then the new exam mode will be
displayed in the Exam Preset dialog box.
Figure 5-14 Add new Exam Mode Dialog Box
NOTE：
The default exam modes can not be deleted or renamed.
To configure relevant parameters for the newly added exam mode, such as probes, or image
parameters, press Probe Preset or Image Preset on preset menu.
5.7.6. Image Parameter Preset
Image parameter preset:
Press Set up>Image Preset, and select Image Preset in the submenu to open the Image
Parameter Preset dialog box.
Image parameter preset is used to set image parameters for a specific probe in a specific exam
mode. Parameters for each image mode are different, but the setting ways are similar. See the
example below, the Image Parameter Preset dialog box for the probe C5-2b in Color Mode,
Abdomen exam:
