6.5.2. Generic Measurements in M Mode
M mode measurements and calculations include distance, time, slope and heart rate (2 cycles).
These are for B+M and M display modes only. The default measurement of B+M and M mode is
heart rate measurement. M mode measurement menus are shown as follows:

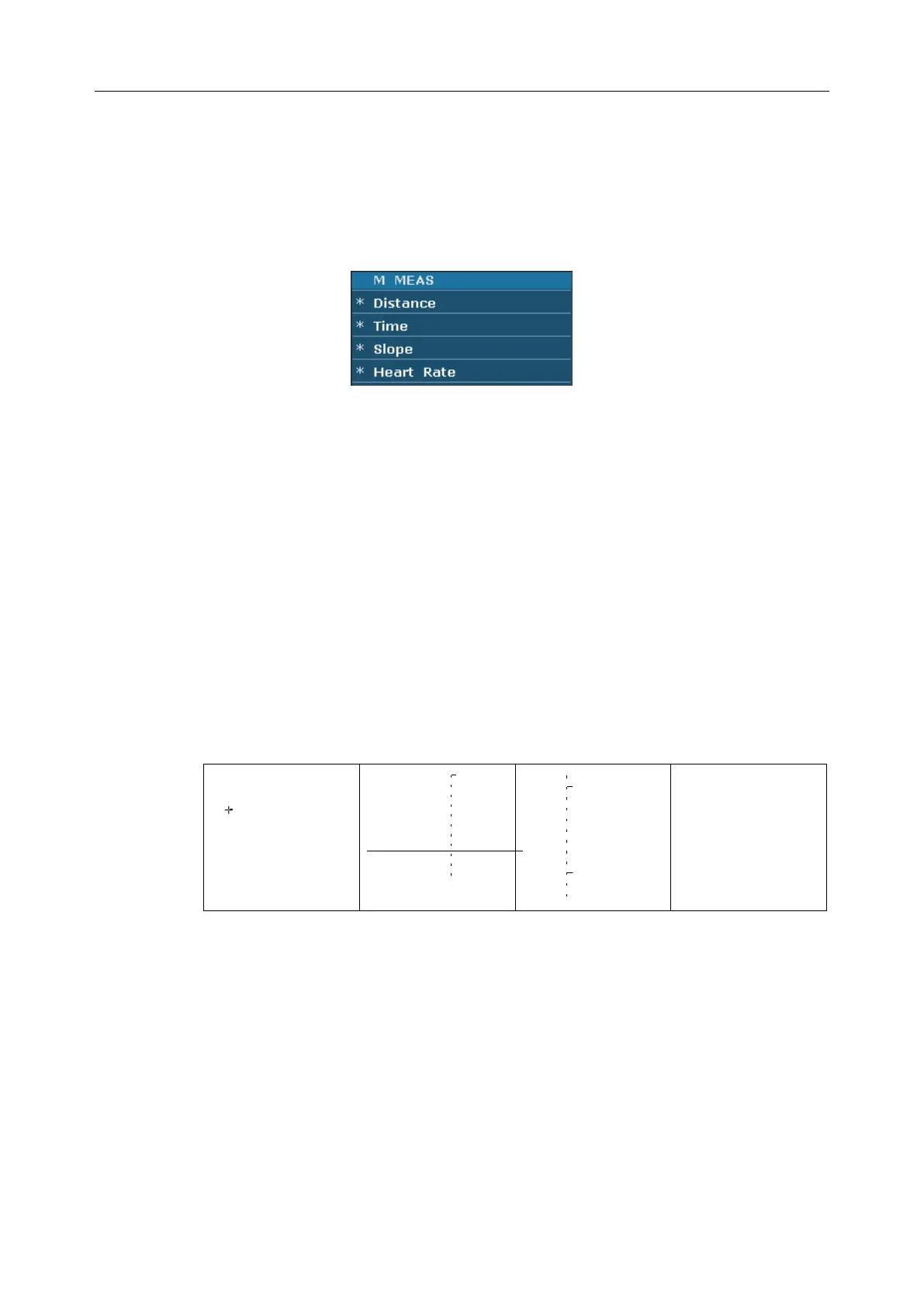

Figure 6-13 M Mode Generic Measurement and Calculation Menu
Distance
To measure distance:
1. Press Caliper to activate a measurement cursor “+”.
2. Roll the trackball to highlight Distance and press Set.
3. Roll the trackball and press Set to anchor the start point, and a big “+” is
displayed.
4. Roll the trackball and press Set to anchor the end point.
5. Roll the trackball and press Set to begin a new distance measurement. You can
measure a maximum of eight groups of data. The outcome will be displayed in
the measurement result window, as shown below.
6. Press Caliper to finish and exit.
Distance 1
Figure 6-14 Distance Measurement and the Results
Time
To measure time:
1. Press Caliper to activate a measurement cursor “+”.
2. Roll the trackball to highlight Time and press Set.
3. Roll the trackball to move the first measurement cursor at the beginning of the
time interval and then press Set, and the measurement mark turns to a vertical
line.
4. Roll the trackball to move the first measurement cursor at the end of the time
