1.2 Control Panel Operations
The EPSON Stylus Pro 9000 control panel displays status and error
messages, and the lights indicate when a problem occurs or if any ink
cartridge is low or runs out. This section provides information on the
control panel buttons, LEDs, and liquid crystal display (LCD).

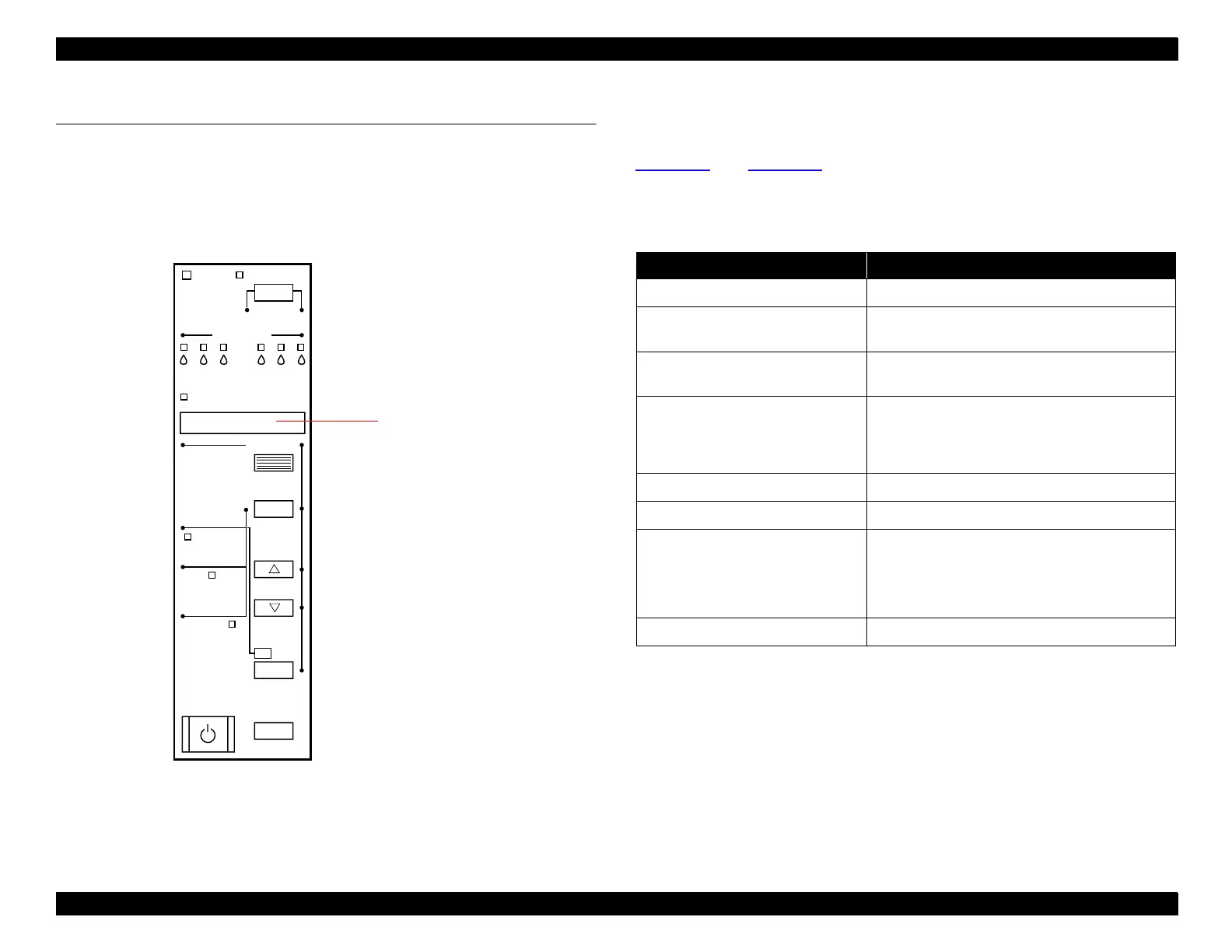

Figure 1-2. EPSON Stylus Pro 9000 Control Panel
1.2.1 Control Panel Buttons
Pressing a control panel button executes the functions listed in
Table 1-1
and
Table 1-2
.
1.2.1.1 Operation in Normal Mode
* Interrupts the ink-drying time, if taking place.
** 1.27 cm/second paper feed for 2 seconds after key is pressed.
7.62 cm/second paper feed if pressed for over 2 seconds.
Maximum feed of 20 cm when the button is pressed once.
***1.27 cm/second paper feed for 2 seconds after key is pressed.
7.62 cm/second paper feed if pressed for over 2 seconds.
Power
Operate
Sheet
Paper Out
Roll
Cutter Off
Roll
Auto Cut
Cleaning
3 sec.
Enter
Cut /Eject
_
Paper Feed
+
Item
Paper Source
SelecType
Reset
3 sec.
Pause
Ink Out
KC LCMLMY
LCD Display
Table 1-1. Operation in Normal Mode
Button (Second function) Function
Power Power ON and OFF
Pause (Reset) Switches between online and offline.
Resets the printer if pressed for 3 seconds.
SelecType Enters SelecType mode (when printer is in
Standby)
Cut/Eject (Enter)*
• Cuts and ejects paper if Roll Auto Cut is
selected
• Ejects paper if Roll Cutter Off or Sheet is
selected
Paper Feed
U
Feeds paper backward**
Paper Feed
D
Feeds paper forward***
Paper Source (Item) Selects paper source:
•Roll Auto Cut
• Roll Cutter Off
• Sheet
Cleaning Cleans both heads if pressed for 3 seconds
