EPSON Stylus Pro 9000
Disassembly & Assembly 61

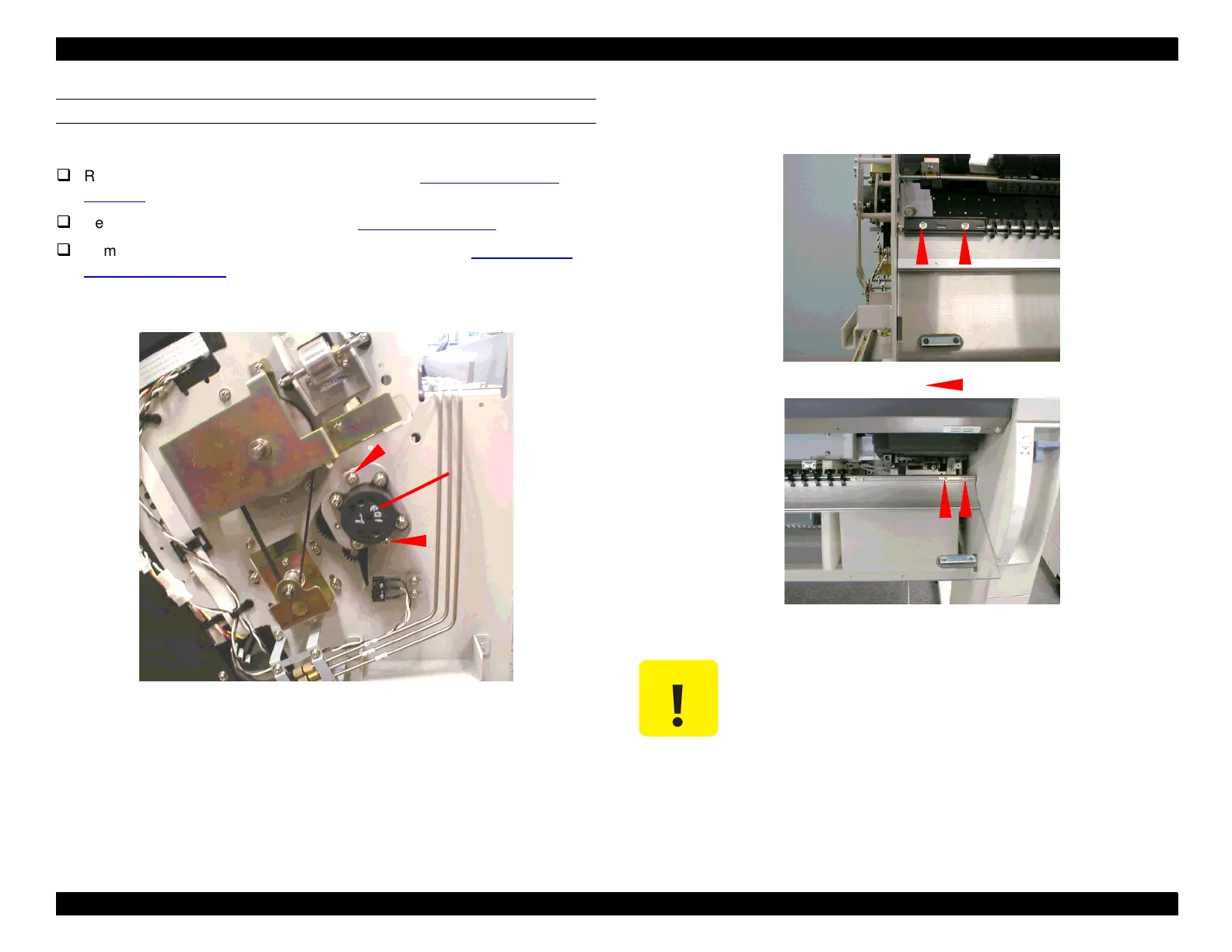

FRONT COVER REMOVAL
Preparation:

Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.

Remove the Top Cover as described in Top Cover Removal on page 59.

Remove the Left and Right Side Covers as described in Left and Right
Side Cover Removal on page 60.
1. Remove the two screws (CP(W2) M3x8) securing the damper assembly on
the left side of the printer, and then remove the damper assembly.
Figure 4-8. Removing the Damper Assembly
2. The Front Cover Assembly hinges on a mounting pin at each end. Remove
the four screws securing the mounting pins as shown below.
Figure 4-9. Locations of Front Cover Shaft Screws
3. While supporting the Front Cover, pull out the mounting pins, and then
remove the Front Cover from the printer.
Damper Assembly
When removing the Front Cover, avoid tilting it down to the
left. The little wheels mounted on the cover’s shaft are not
secured and may slide off.
CP(W2) M3x8 screws
Left side
Right side
To Next Page
