EPSON Stylus Pro 9000
Disassembly & Assembly 84
4.6 Ink Holder Disassembly
This section describes how to remove and disassemble the Ink Holder
Assembly.
4.6.1 Removing the I/C Holder Assembly
1. Perform the ink discharge operation to eject inks from all ink paths. See
Clean Head (Drain Ink)
on page 127.
2. Remove the side covers (L/R). See Left and Right Side Cover Removal
on
page 60.
3. Remove the four screws (CP(W2) M3x6) secureing the ink tube fixing
plate, and loosen the lock nut securing the ink tubes to the ink pipes ad
disconnect the ink tubes from the ink pipes.
4. Remove the four screws (CP(W2) M2x4) securing the access cover
attached at the back of the I/H assembly.

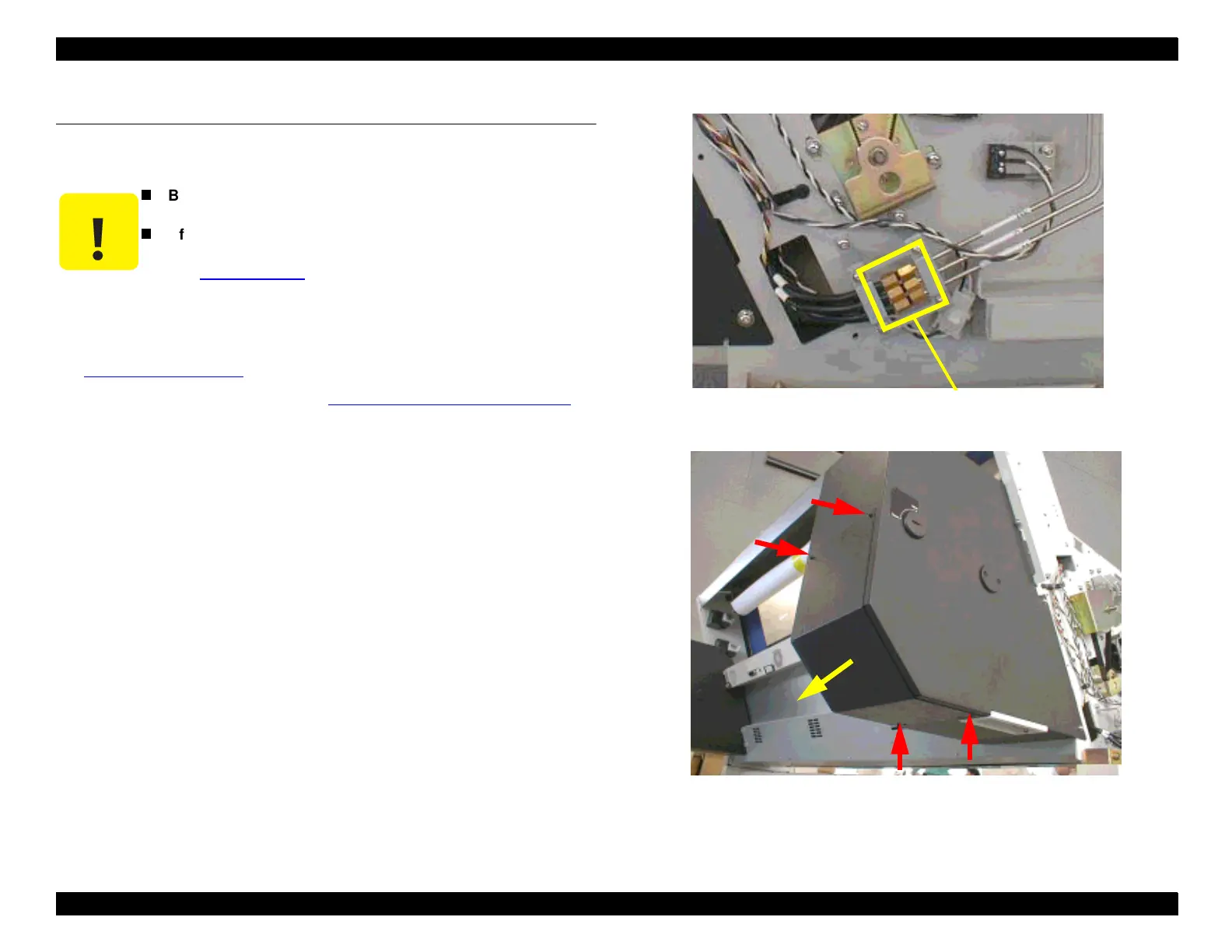

Figure 4-46. Disconnecting the ink tubes
Figure 4-47. Removing the access cover
CAUTION

Before removing the Ink Holder Assembly, you have to
discharge all ink from the ink system. See step 1 below.

After reassembling the Ink Holder Assembly, install new
ink cartridges and perform the Initial Ink Charge operation.
See
Cleaning menu
on page 128.
Ink tube fixing plate
