EPSON Stylus Pro 9000
Disassembly & Assembly 62
ROLL COVER REMOVAL
Preparation:
Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
Remove the Top Cover as described in Top Cover Removal on page 59.
Remove the Left and Right Side Covers as described in Left and Right
Side Cover Removal on page 60.
1. Remove the two screws securing each damper assembly, and then
remove the damper assemblies.
2. Remove the four screws (CP(W2) M3x8), two on each end, that secure the
mounting pins to the Roll Cover shaft.
3. While supporting the Roll Cover, pull out the mounting pins, and then
remove the Roll Cover from the printer.

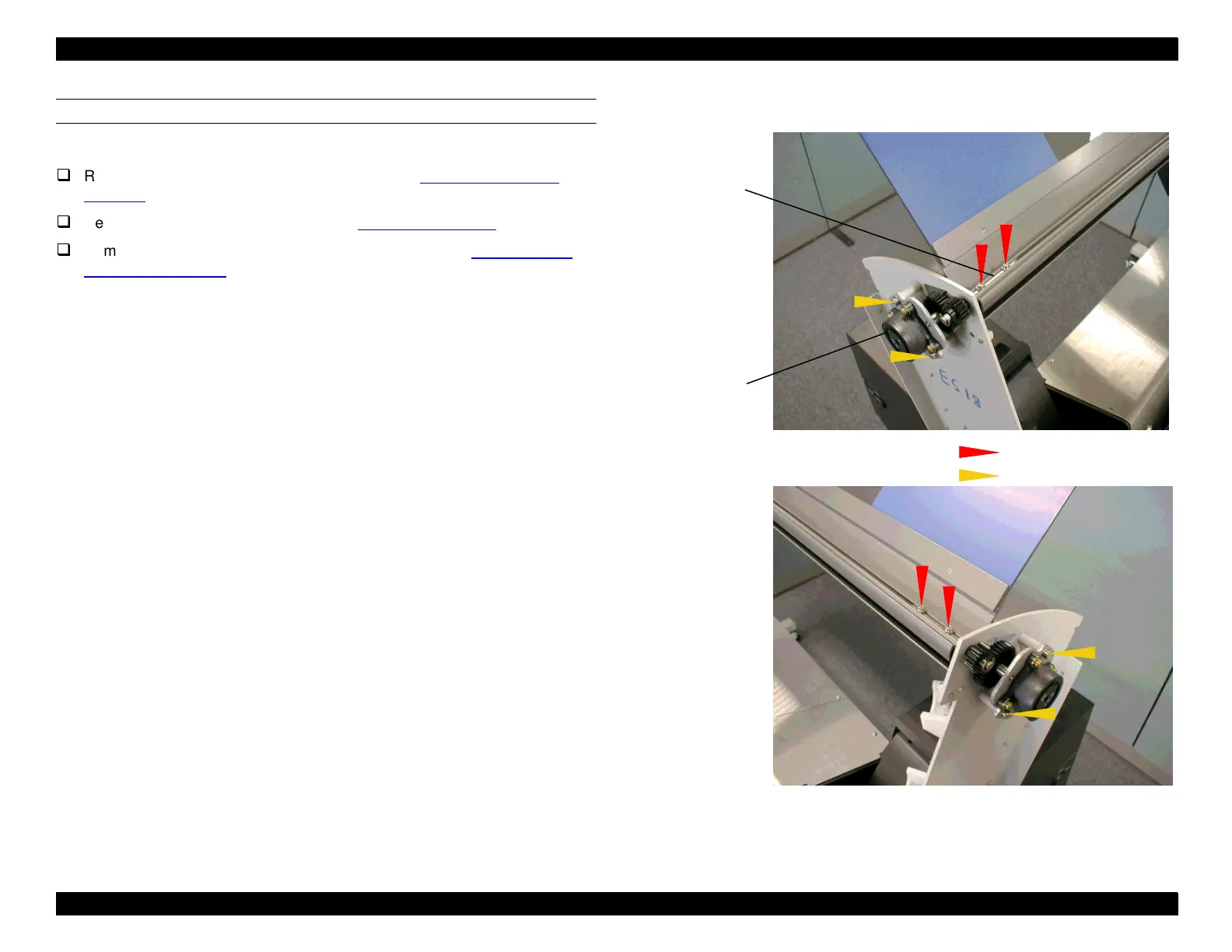

Figure 4-10. Roll Cover Removal
CP(W2) M3x8 screws
CP(W2) M4x8 screws
Left side of Roll Cover
Right side
Mounting
Pin
Damper
Assembly
To Next Page
