EPSON Stylus Pro 9000
Disassembly & Assembly 58
4.1.5 Housing Parts
Refer to the figure below to locate the housing parts described throughout this
chapter.

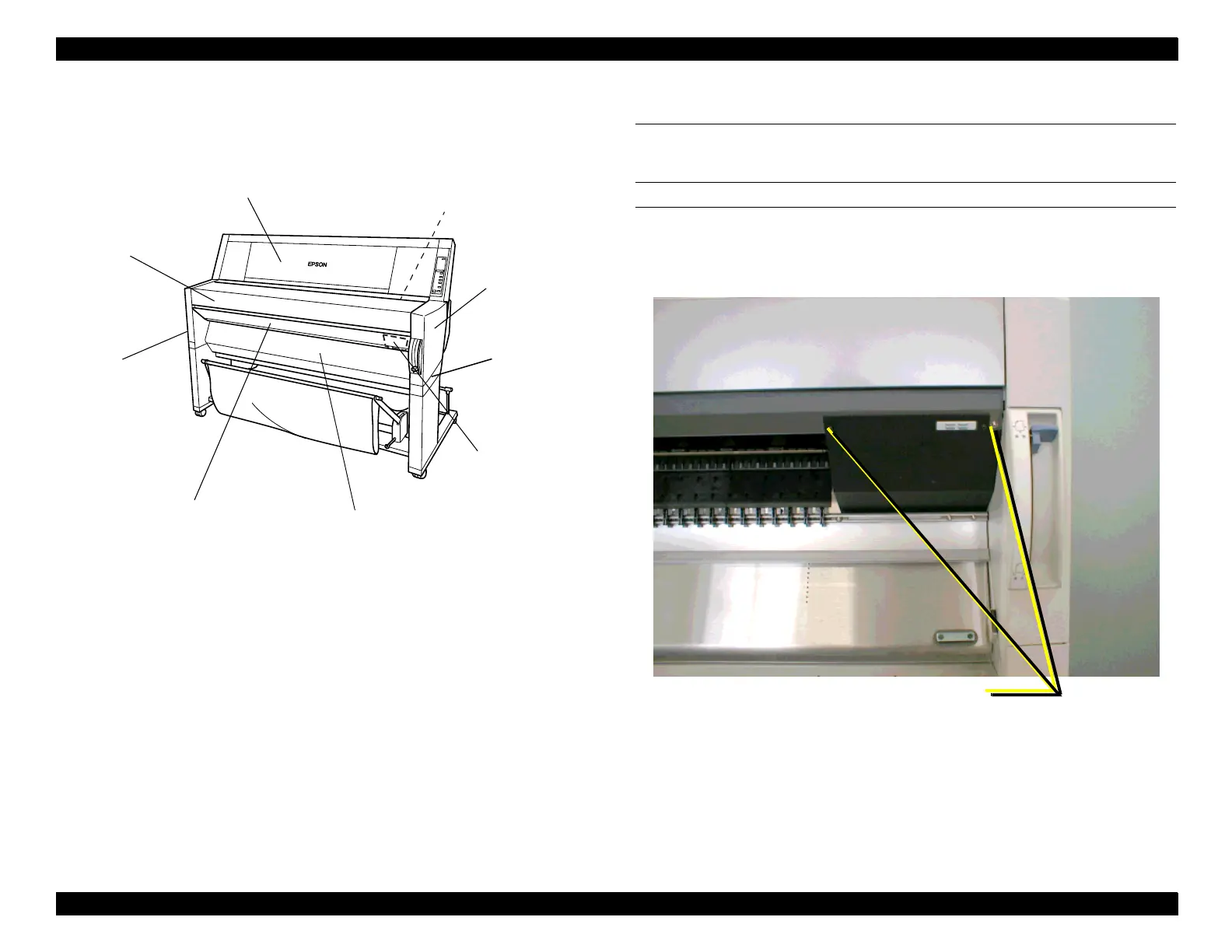

Figure 4-2. Housing Parts
4.2 Housing Removal
Follow the steps below to remove the printer’s housing.
MAINTENANCE COVER REMOVAL
1. Open the Front Cover.
2. Remove 2 screws, CP(W2) M3x6, and then remove the Maintenance
Cover.
Figure 4-3. Maintenance Cover Removal
Roll Cover
Upper Paper Guide
(behind Top Cover)
Right Side
Cover
Maintenance
Cover
Top Cover
Lower Paper Guide
Front Cover
Left Side
Cover
Right Joint
Cover
CP(W2) M3x6 screw (x2)
