EPSON Stylus Pro 9000
Disassembly & Assembly 65
4.3 Circuit Board Removal
Follow the steps below to remove the power supply board (C277PSU) and the
main board (C277MAIN).
POWER SUPPLY BOARD REMOVAL
Preparation:
Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
Remove the Top Cover as described in Top Cover Removal on page 59.
Remove the Upper Paper Guide as described in Upper Paper Guide
Removal on page 64.
1. Remove the two cables connected to the Power Supply Board as shown.
2. Remove the five screws that secure the Power Supply Board, and then
remove the board.

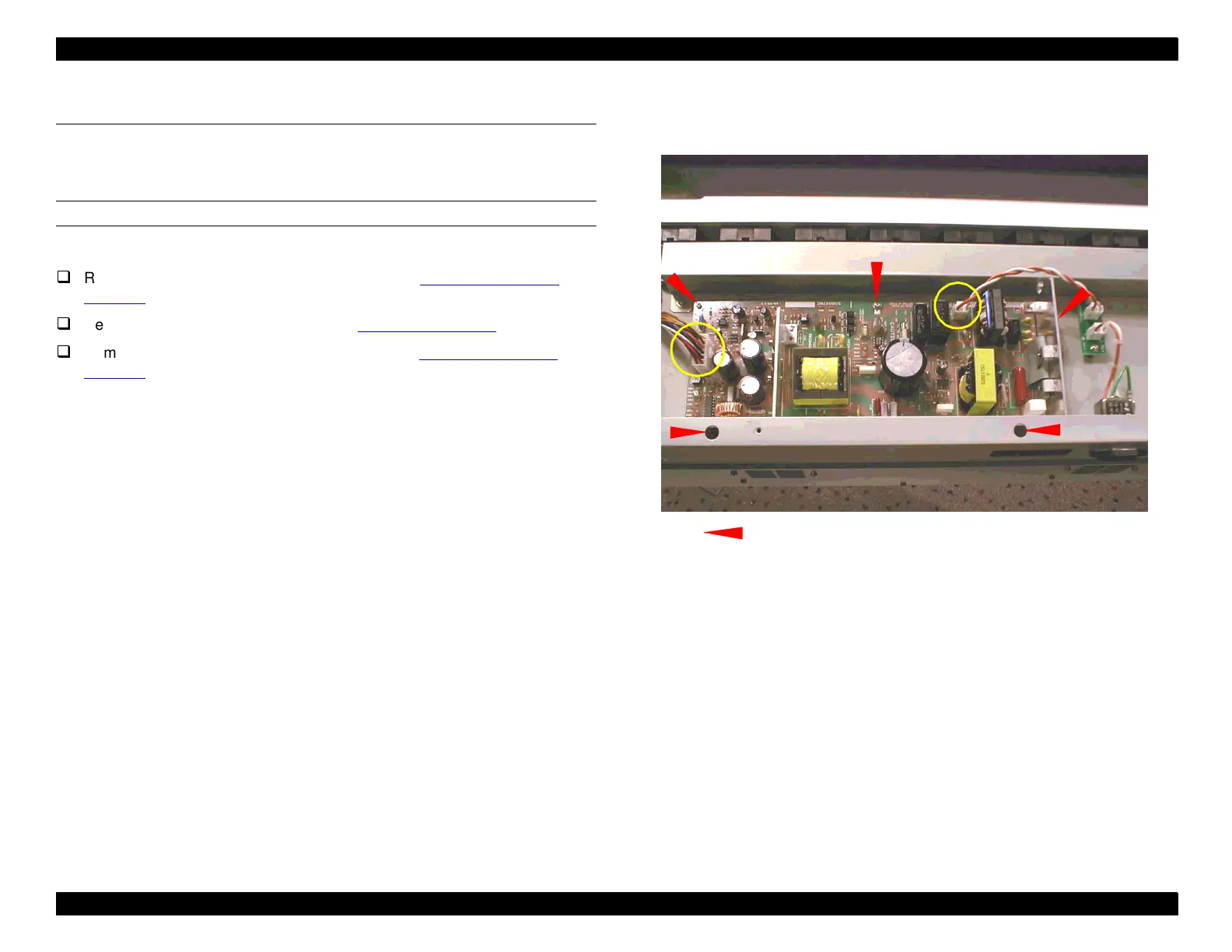

Figure 4-15. Power Supply Board Removal
(viewed from in back of printer)
CBF M3x6 screw
