Epson Stylus Pro 9000 - Print Engine - PLATEN GAP GEAR BACKLASH ADJUSTMENT; I;H LEVER POSITION ADJUSTMENT

EPSON Stylus Pro 9000
Adjustments 133

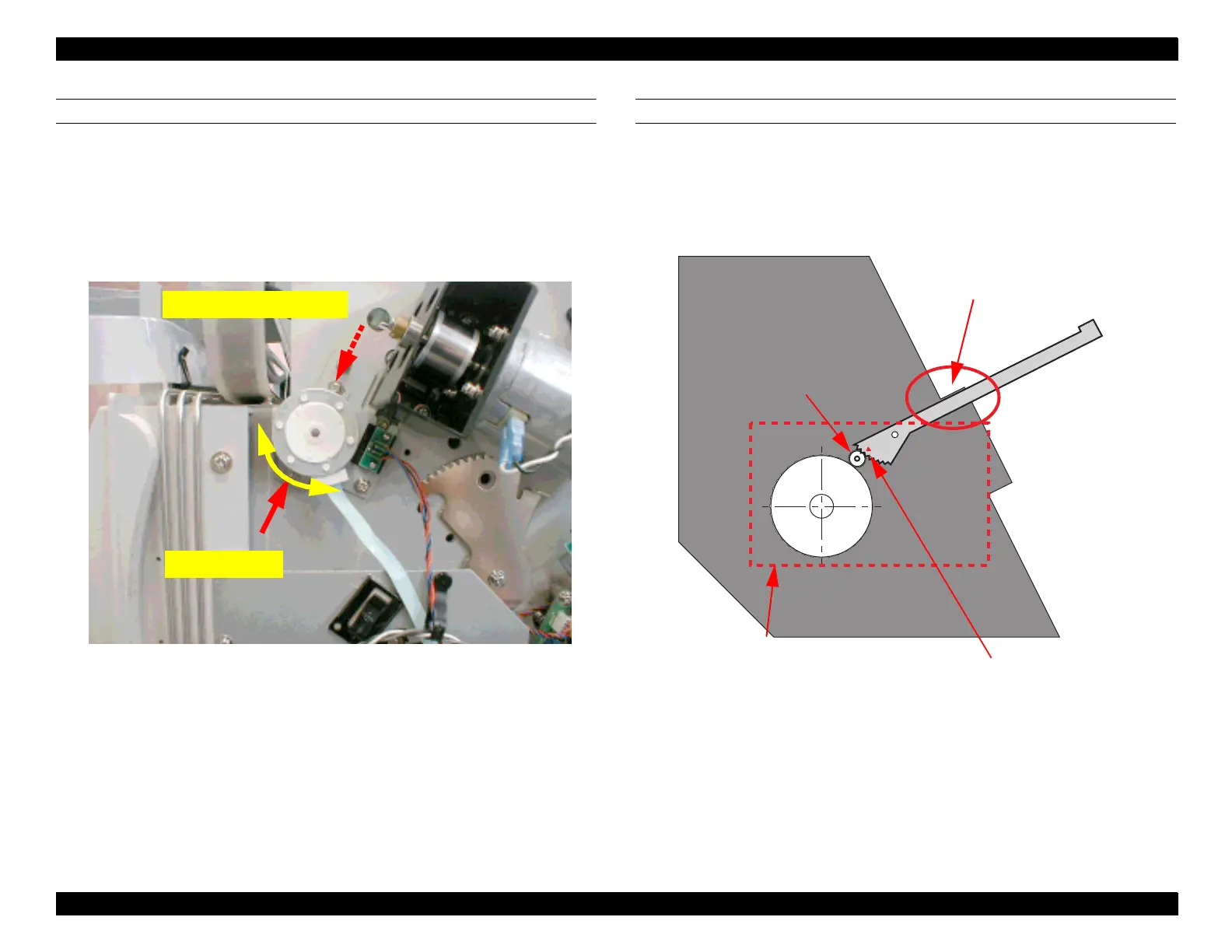

PLATEN GAP GEAR BACKLASH ADJUSTMENT
Perform this adjustment whenever you remove or re-install the PG Motor.
1. Slightly loosen screw A as shown and fully loosen screw B.
2. Adjust the position of the motor by pivoting it at screw A so that the gear
turns smoothly when rotated by hand.
3. Retighten the screws.
I/H LEVER POSITION ADJUSTMENT
Perform this adjustment whenever you remove the I/H subassembly, which is
located inside the Ink Cartridge Holder.
1. Raise the I/H Lever and check that the arrow mark on it points toward the
center of the transmission gear as shown below.
2. Also make sure that the I/H subassembly is positioned evenly and
correctly, and that the lever is parallel with the wall of the I/C Holder.
A
B
Slightly loosen A
Loosen B
Make sure the lever is parallel
with the I/C Holder wall.
Make sure the arrow mark on the
I/H lever points to the center of the
transmission gear.
Make sure the I/H
subassembly is positioned
evenly and correctly.
I/H Transmission
Gear
