EPSON Stylus Pro 9000

Appendix 194

7.8 Main Board Component Layout

The illustrations below show the C277MAIN Board component layout.

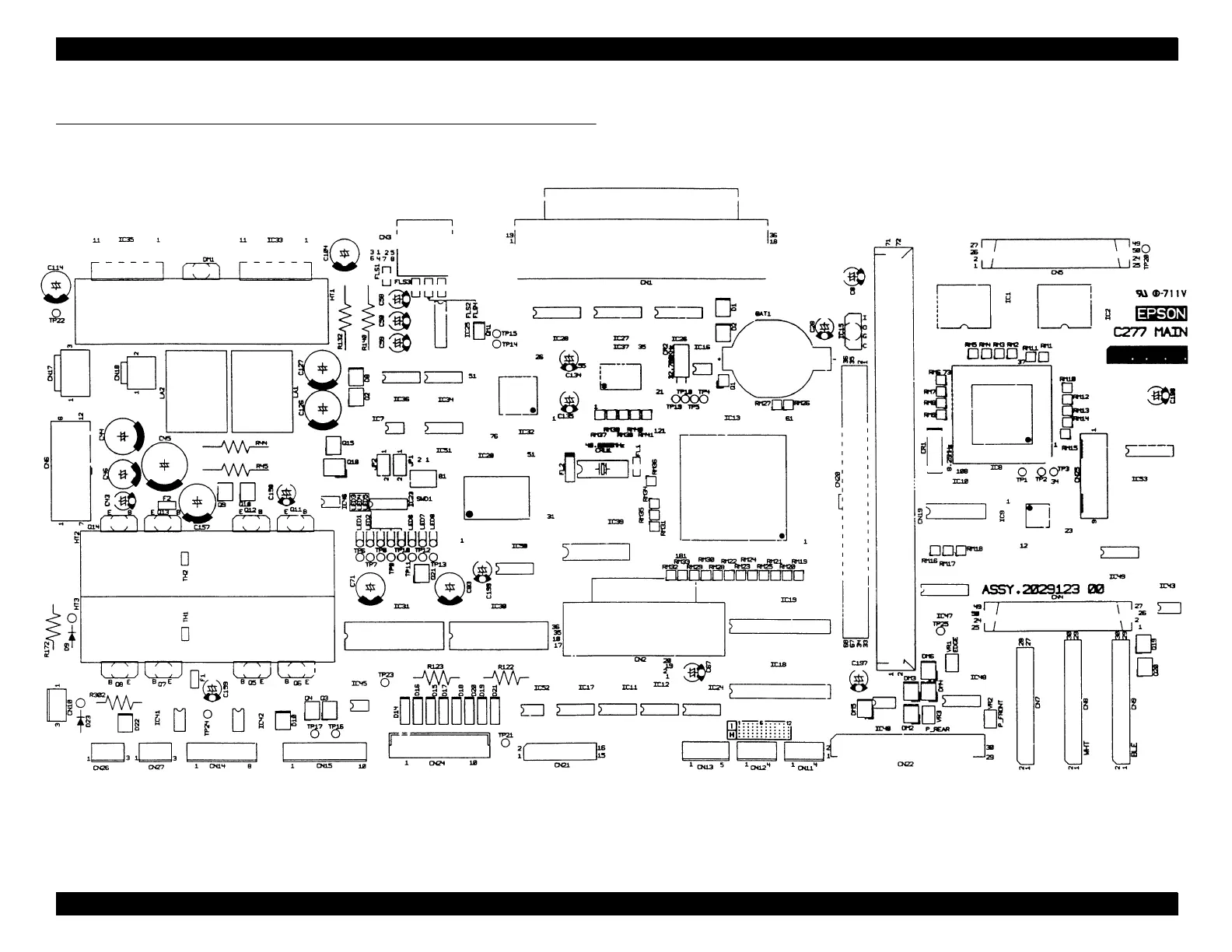

Figure 7-5. C277MAIN Board Component Layout of Component side
