REMOVING THE CARRIAGE MOTOR ASSEMBLY
Preparation:
Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
Remove the Top Cover as described in Top Cover Removal on page 59.
Remove the Left and Right Side Covers as described in Left and Right
Side Cover Removal on page 60.
1. Manually release the Carriage Lock and move the carriage away from the
capping position, as shown in Figure 4-24
.
2. On the Left Side Frame, loosen the two screws shown below to reduce
tension on the CR Drive Belt.

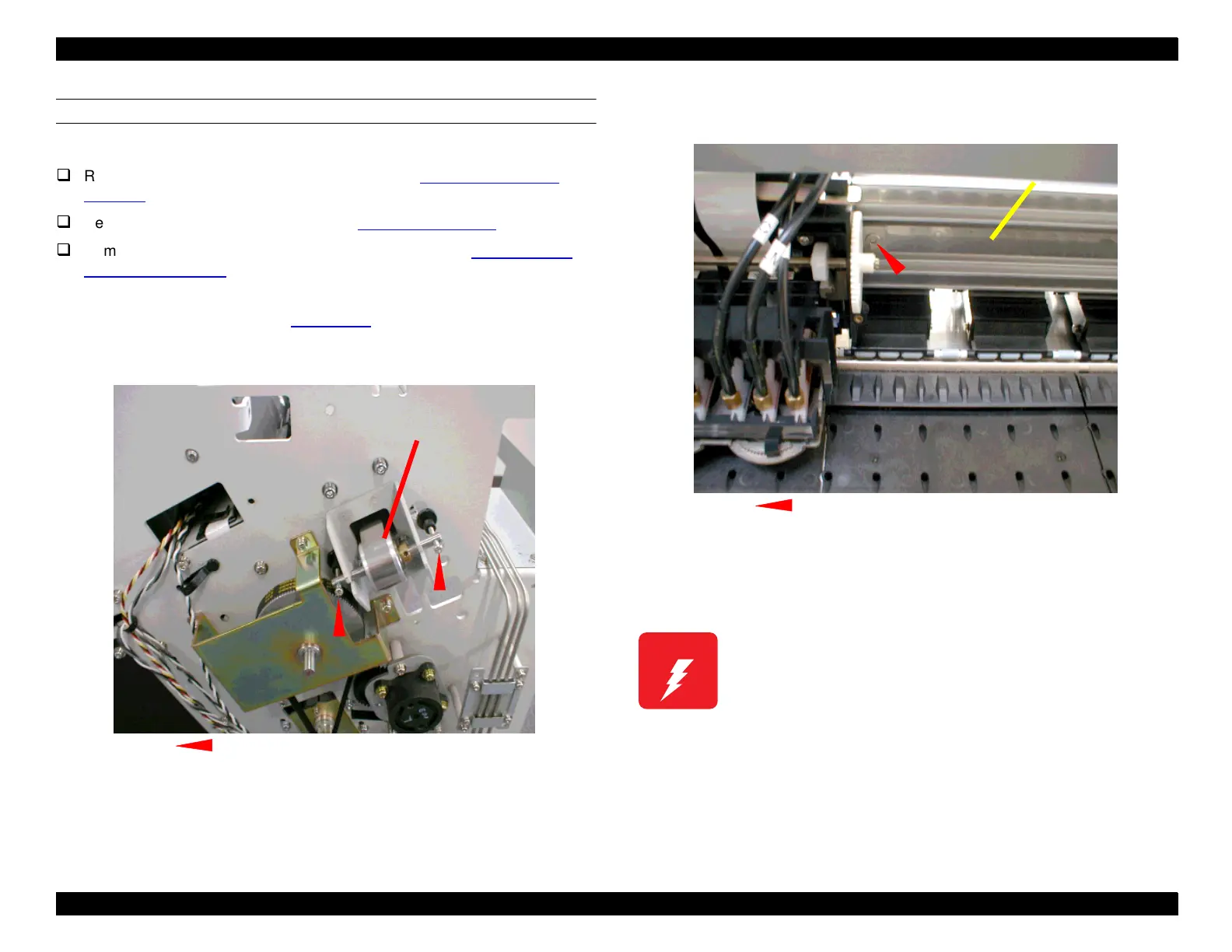

Figure 4-29. Loosening the CR Drive Belt
3. Remove the hex screw that secures the CR Drive Belt to the right side of
the carriage assembly.
Figure 4-30. Removing the CR Drive Belt
4. Pull the loose end of the Carriage Drive Belt out through the Right Side
Frame.
CR Drive Belt Pulley
Loosen these two screws.
The edges of the CR drive belt may be sharp. Exercise
caution when removing the belt.
Remove one Hex Screw: 2.5mm
CR Drive Belt
