EPSON Stylus Pro 9000
Disassembly & Assembly 72
1. Turn the ink valve knob located on the sides of the Ink Cartridge Holders to
the “Close” position, or depress and then lift up the I/C Holder levers. Both
operations perform the same function of shutting off the flow of ink from the
ink cartridges.
2. Manually release the Carriage Lock by pulling up on the release lever as
shown below, and then move the carriage away from the capping position.

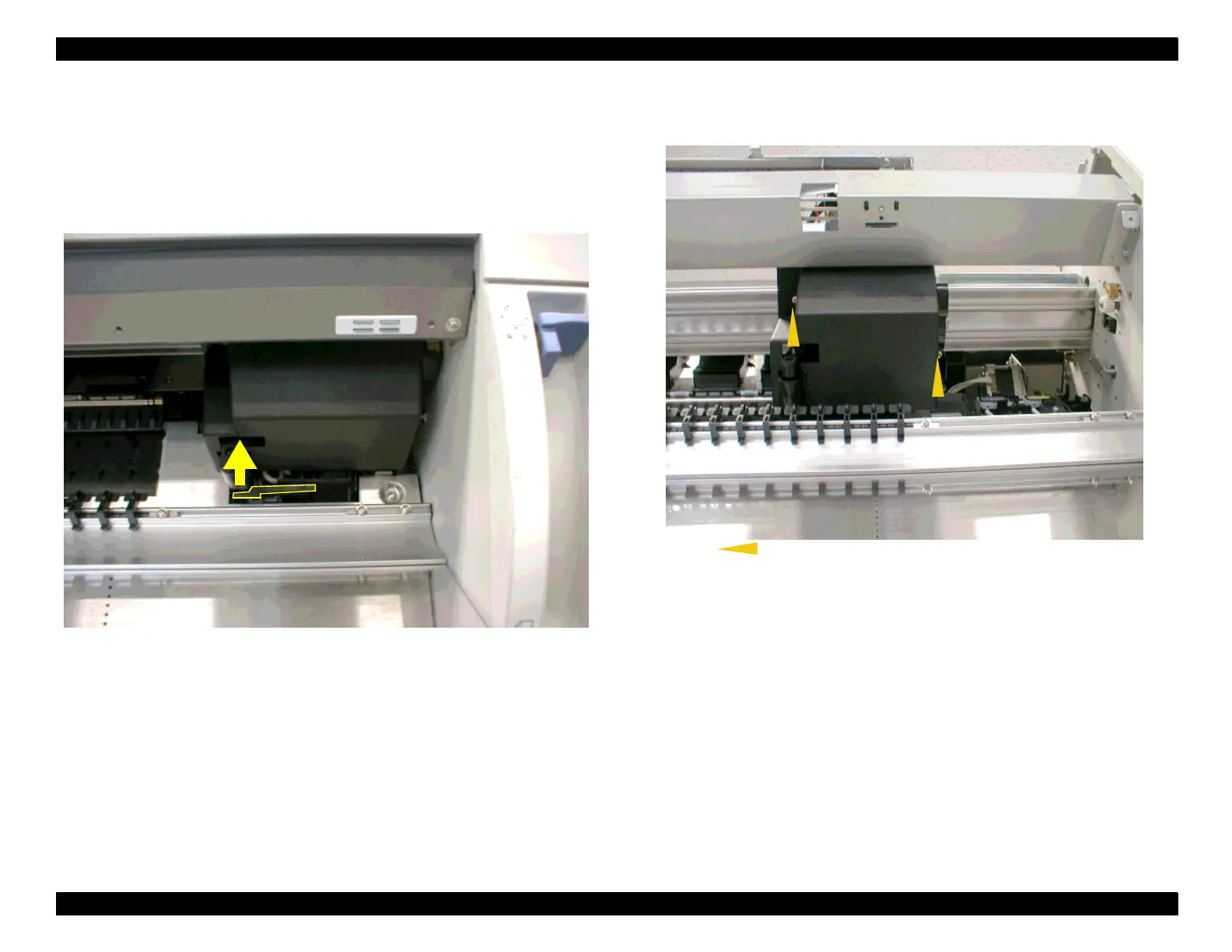

Figure 4-24. Carriage Lock Release
3. Remove two screws (CB M3x6) as shown below, and remove the carriage
cover.
Figure 4-25. Carriage Cover Removal
Carriage Lock Release
CB M3x6 screw
To Next Page
