EPSON Stylus Pro 9000
Disassembly & Assembly 71
If you re-install the same Capping Mechanism, be sure to
check the following:
After re-installing the springs that hold the Capping
Mechanism in place, try sliding the mechanism by hand to
make sure it operates smoothly.
Make sure the air bleed valve seals properly when the
Capping Mechanism pushes all the way against it.

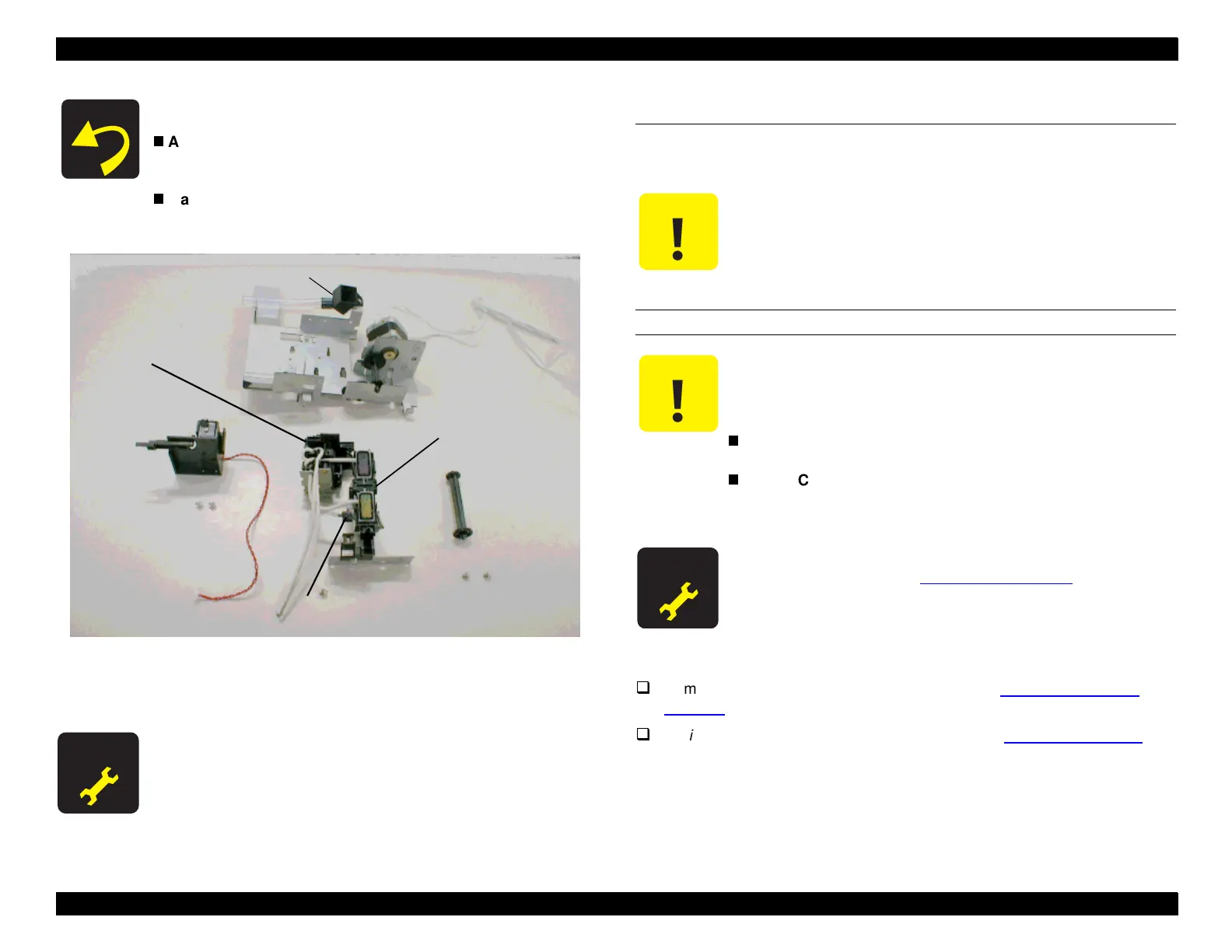

Figure 4-23. Disassembling the Maintenance Assembly - 2
4.5 Printer Mechanism Disassembly
Follow the steps below to remove the main components of the printer
mechanism.
REPLACING THE PRINTHEADS
Preparation:
Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
Optional:
Remove the Top Cover as described in Top Cover Removal on
page 59. Although this is an extra step, it provides more light and room.
ADJUSTM ENT
REQUIRED
When replacing the Lower Paper Guide, you need to
perform the Cutter Position Adjustment.
REASSEMBLY
Carriage
Lock
Pump Drive
Shaft
Flushing Box
Pump Motor
Pump
Mechanism
Capping
Mechanism
Bleed Valve
Do not attempt to disassemble any components other than
those described below. Certain repairs can be done only at
the factory and can permanently damage the printer if not
done correctly.
The printer uses two printheads, Head B and Head C.
Although they are similar, they are not interchangeable.
One is for dark ink, the other for light ink. Make sure you
install the correct replacement head accordingly:
Head B (for dark ink; goes on the left)
F055040: “Printhead, IJ192-OAD”
Head C (for light ink; goes on the right)
F055050: “Printhead, IJ192- OAE”
When replacing the printheads, you have to perform
various adjustments. See Required Adjustments
on page 103.
