EPSON Stylus Pro 9000
Disassembly & Assembly 76
5. Remove the four screws securing the CR Motor Assembly to the Right
Side Frame, and then remove the CR Motor Assembly.

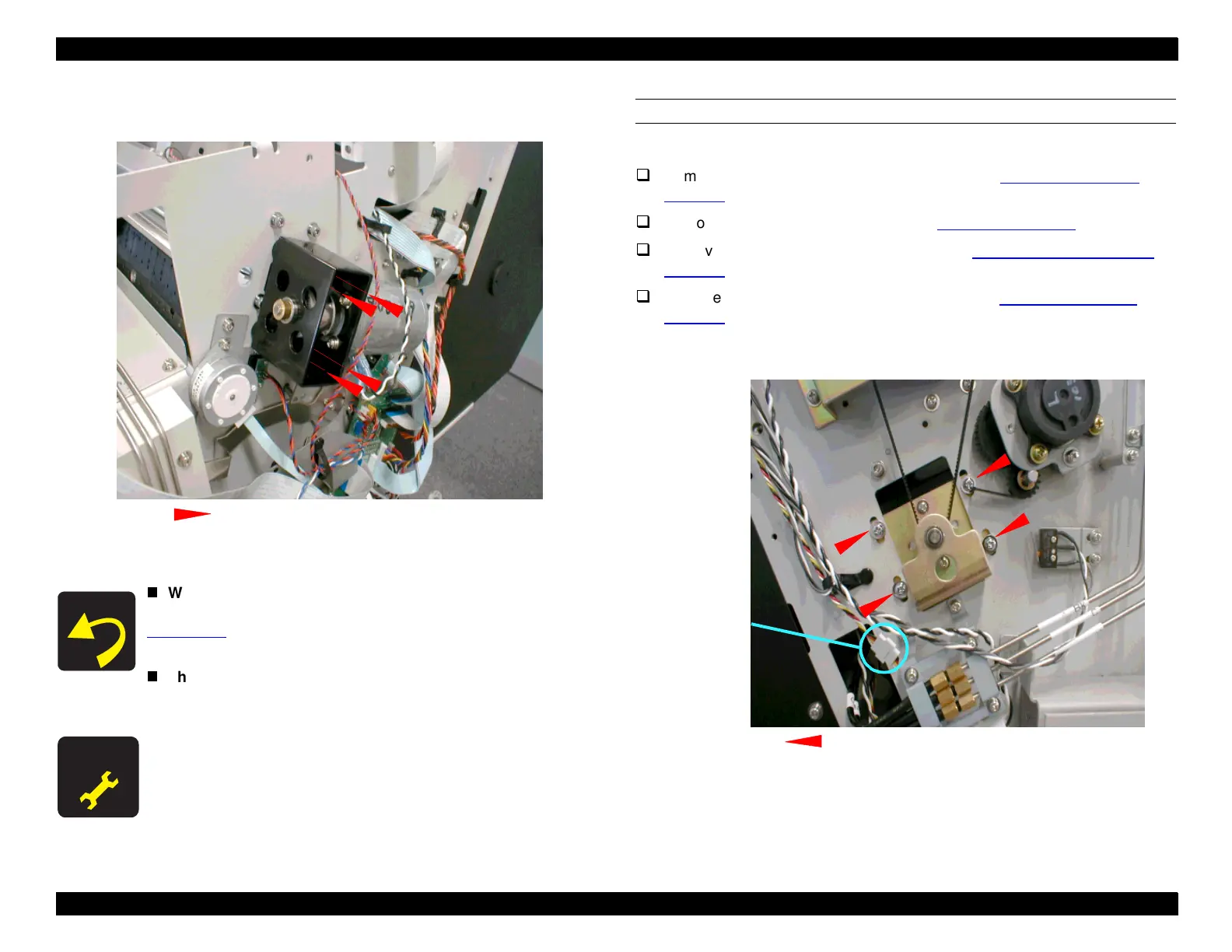

Figure 4-31. CR Motor Removal
When re-assembling the CR Motor Assembly, move the
carriage back and forth by hand, and adjust the screws in
Figure 4-29
until the CR Drive Belt is centered on the pulley.
(The belt must be within 1 mm of the center of the pulley.)
The white CR Motor lead connects to the terminal marked
“+” and the black lead connects to the terminal marked “-”.
REMOVING THE PF MOTOR ASSEMBLY
Preparation:
Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
Remove the Top Cover as described in Top Cover Removal on page 59.
Remove the Left Side Cover as described in Left and Right Side Cover
Removal on page 60.
Remove the Lower Paper Guide as described in Lower Paper Guide
Removal on page 63.
1. Loosen the four screws (CP(W2) M4x12) on the PF Motor Mounting
Bracket as shown below to reduce the tension on the timing belt.
Figure 4-32. Loosening the Timing Belt
2. Disconnect the PF Motor cable connector as shown in the figure above
(black and white wires).
ADJUSTM ENT
REQUIRED
After removing the CR Motor, you must perform the CR
Drive Belt Tension Adjustment.
Four CP(W2) M4x8
REASSEMBLY
CP(W2) M4x12 screws: only loosen
PF Motor Cable
Connector
(black and white
wires)
To Next Page
