EPSON Stylus Pro 9000
Disassembly & Assembly 77
3. Disconnect the PF Motor Encoder cable connector (black, gray, and white
wires).
4. Remove the two CP(W2) M3x8 screws securing the PF Motor to the
PF Motor Mounting Bracket, and then remove the PF Motor. If necessary,
raise up the PF Motor Mounting Bracket to reduce belt tension while
removing the motor.

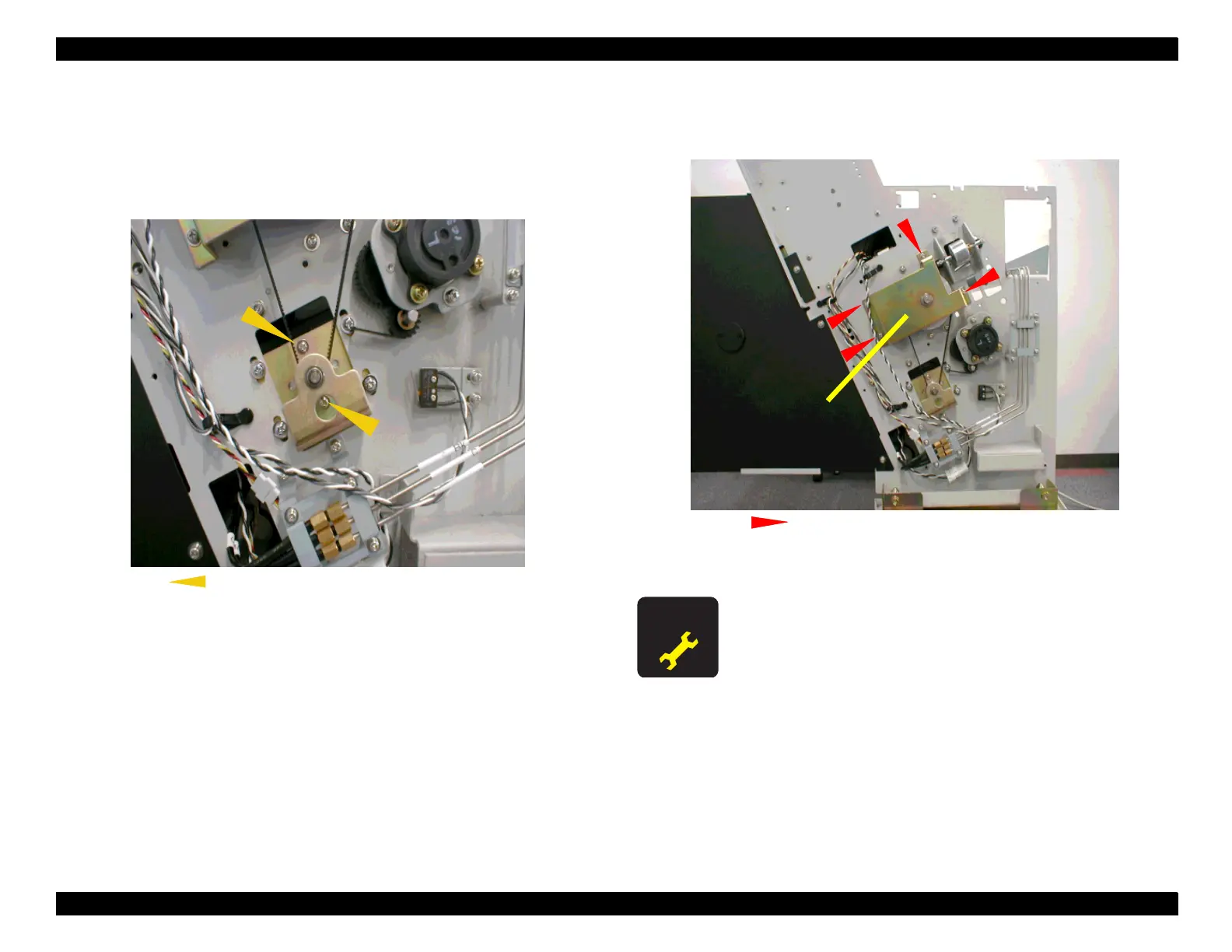

Figure 4-33. PF Motor Removal
5. If you need to remove the timing belt, remove the four screws (CP(W2)
M4x8) securing the Speed-Reduction Gear Frame, and then remove the
frame and the belt.
Figure 4-34. Timing Belt Removal
CP(W2) M3x8
ADJUSTM ENT
REQUIRED
After reinstalling the Lower Paper Guide, perform the Cutter
Position Adjustment.
CP(W2) M4x8
Speed-Reduction
Gear Frame
