EPSON Stylus Pro 9000
Technical Overview 27
CUTTER MECHANISM
To make a paper cut, the cutter solenoid plunges the cutter blade into the
paper. To cut the paper evenly, the following method is used:
1)The cutter cuts from the left of center (when facing the printer) to the left
edge.
2)The cutter cuts from several centimeters inside the right edge to the right
edge.
3)The cutter cuts the remaining center portion, from right to left.

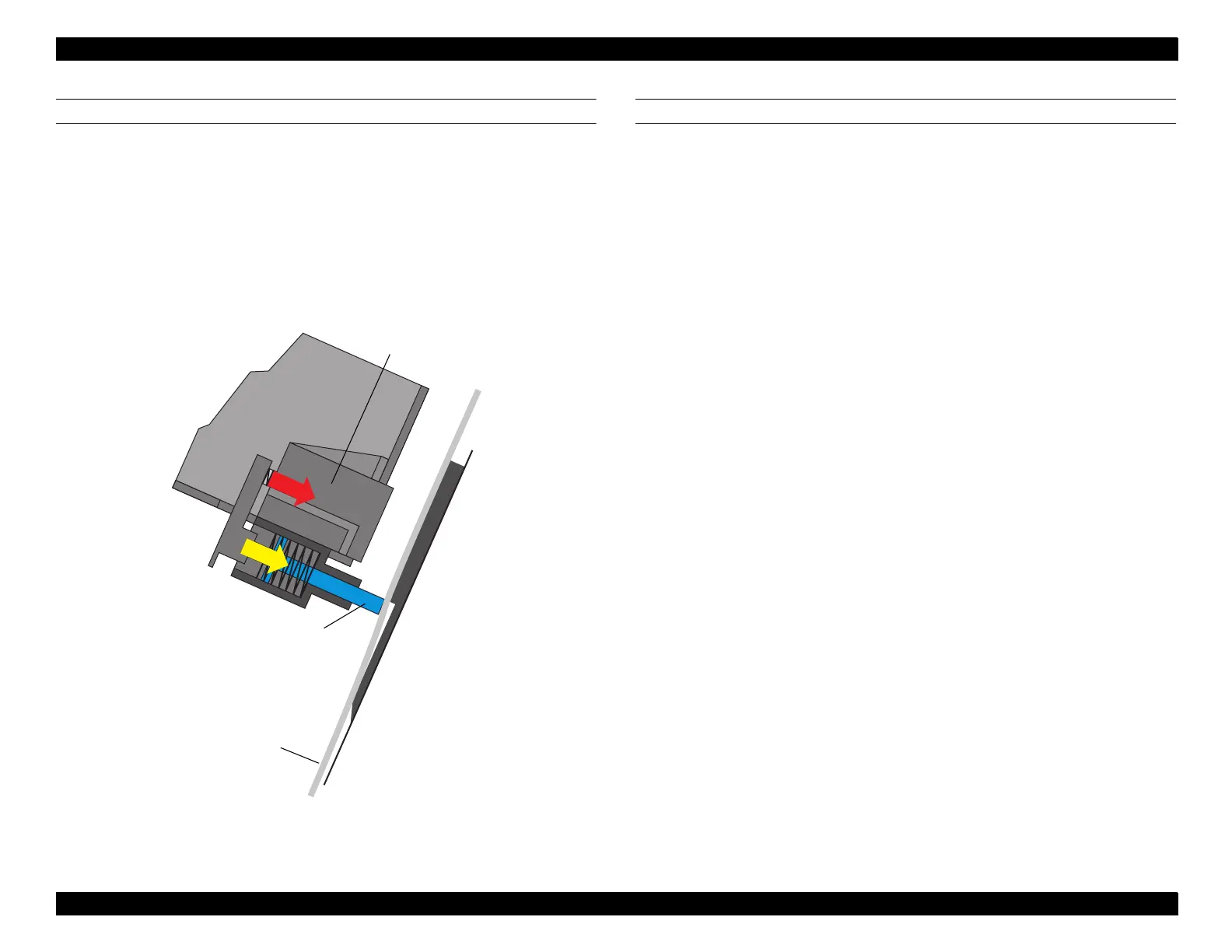

Figure 2-8. Cutter Mechanism
PRINTHEADS
The printheads are the same type used in the EPSON Stylus Pro 5000, and
are installed in the same way. Three levers are provided to make sure the
heads are lined up vertically and that neither head leans one way or the other.
Carriage
Cutter
Blade
Paper
Cutter
solenoid
To Next Page
