Disassembly & Assembly 60
LEFT AND RIGHT SIDE COVER REMOVAL
Preparation:
 Remove the Maintenance Cover as described in Maintenance Cover
Removal on page 58.
 Remove the Top Cover as described in Top Cover Removal on page 59.
1. Remove the left and right Joint Covers, as shown in Figure 4-7
.
2. Remove the seven screws (five silver CP(W2) M4x12 and two black
CP(W2) M4x12) securing the Left Side Cover, and remove the Left Side
Cover. Repeat for the Right Side Cover.
NOTE:
The control panel is attached to the Right Side Cover. When
removing the Right Side Cover, detach the flat cable from the
control panel.

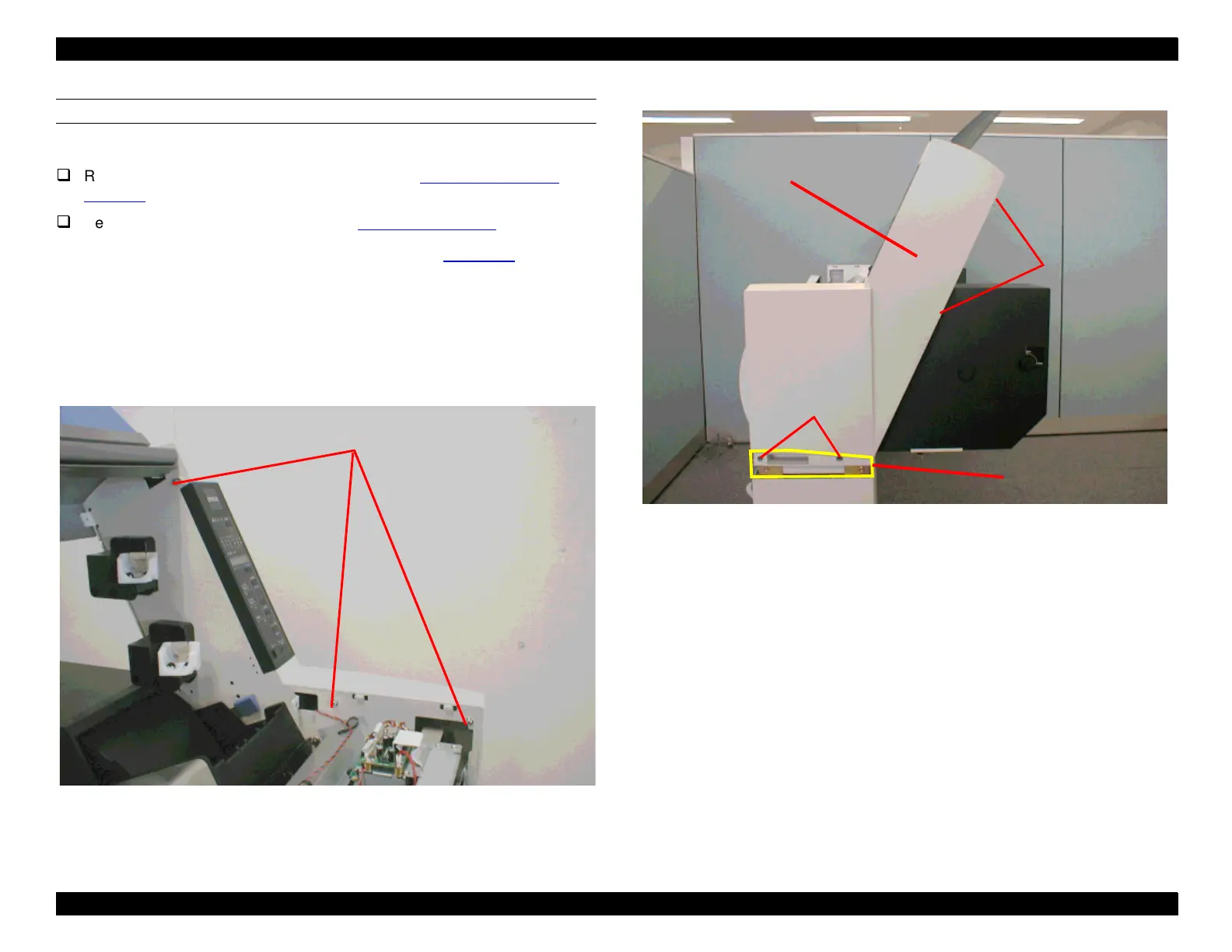

Figure 4-6. L/R Side Cover Inner Screw Location
Figure 4-7. L/R Side Cover Outer Screw Location
CP (W2) M4x12 silver screws
CP (W2) M4x12
silver screws
CP (W2) M4x12 black screws
Joint Cover
Right Side
Cover
