7.5 Connector Summary

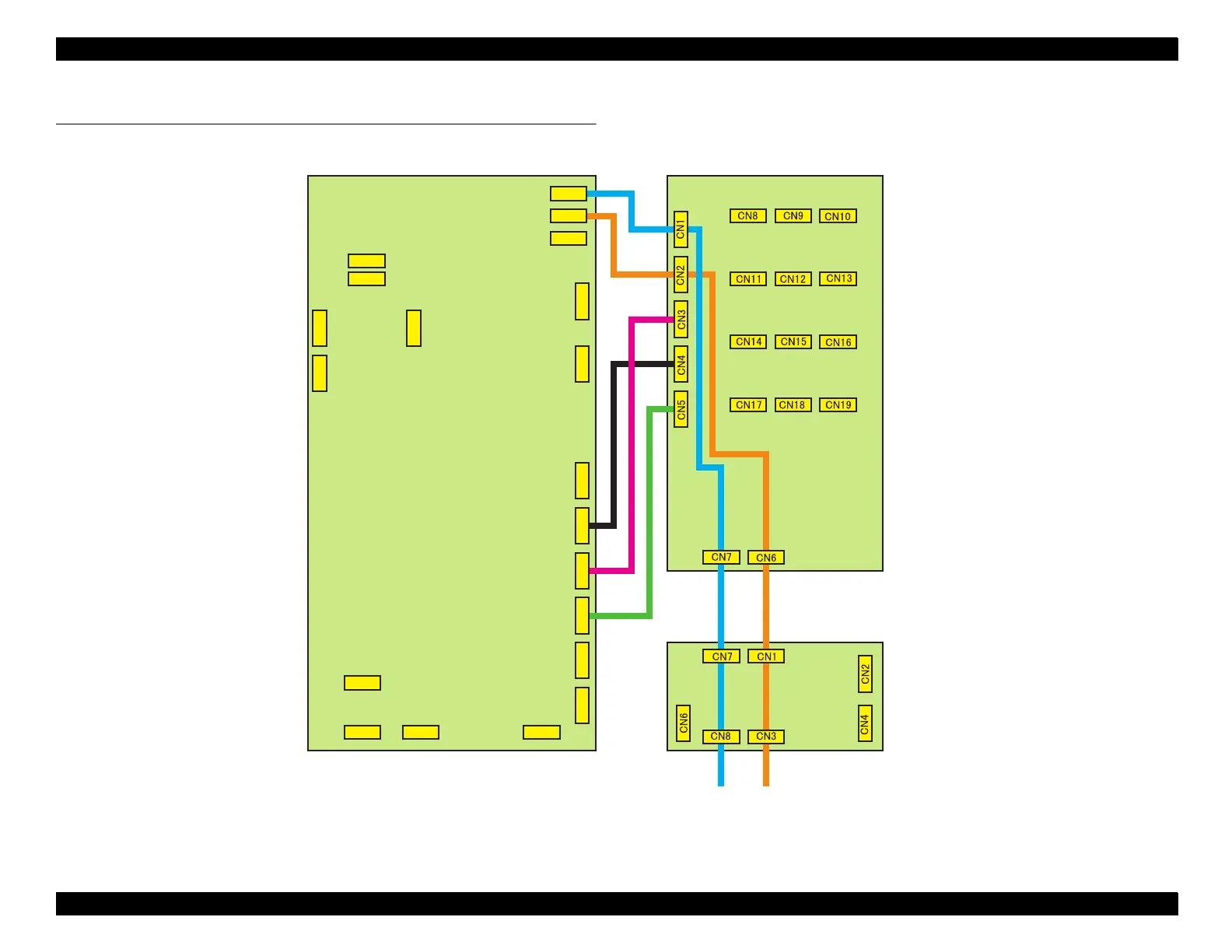

The following diagram shows how the main circuit boards are connected:
Figure 7-4. Stylus Pro 9000 Connector Summary
CR Board
Assembly
Linear
Encoder
CR HP
Sensor
C277MAIN
Relay
(Junction)
Board
WHT
BLE
Cutter
Solenoid
C Head
B Head
Pump
Motor
PG Motor
PG Origin
Sensor
Suction
Fan
P_FRONT
Sensor
I/H Assy
R
CR Lock
Solenoid
Release
Lever
Suction
Fan
Suction
Fan
P_THICK
Sensor
Cover-R
CN9 (BLE/Relay: CN2)
CN8 (WHT/Relay: CN1)
CN7 (Control Panel)
CN11 (P_REAR Sensor)
CN13 (PF Encoder)
CN19 (RAM-SIMM)
CN20 (PC Card)
CN1
(Parallel)
CN3
(Macintosh
Serial)
CN18
(PF Motor)
CN17
(CR Motor)
CN6
(Power)
CN10
(P/S Fan L)
CN21 (I/H Assy L)
CN24 (Relay: CN4)
CN15 (Relay: CN3)
CN14 (Relay: CN5)
CN27 (Relay: CN5)
CN26 (P/S Fan R)
WHT
BLE
CN2
(Type-B)
