EPSON Stylus Pro 9000
Adjustments 122

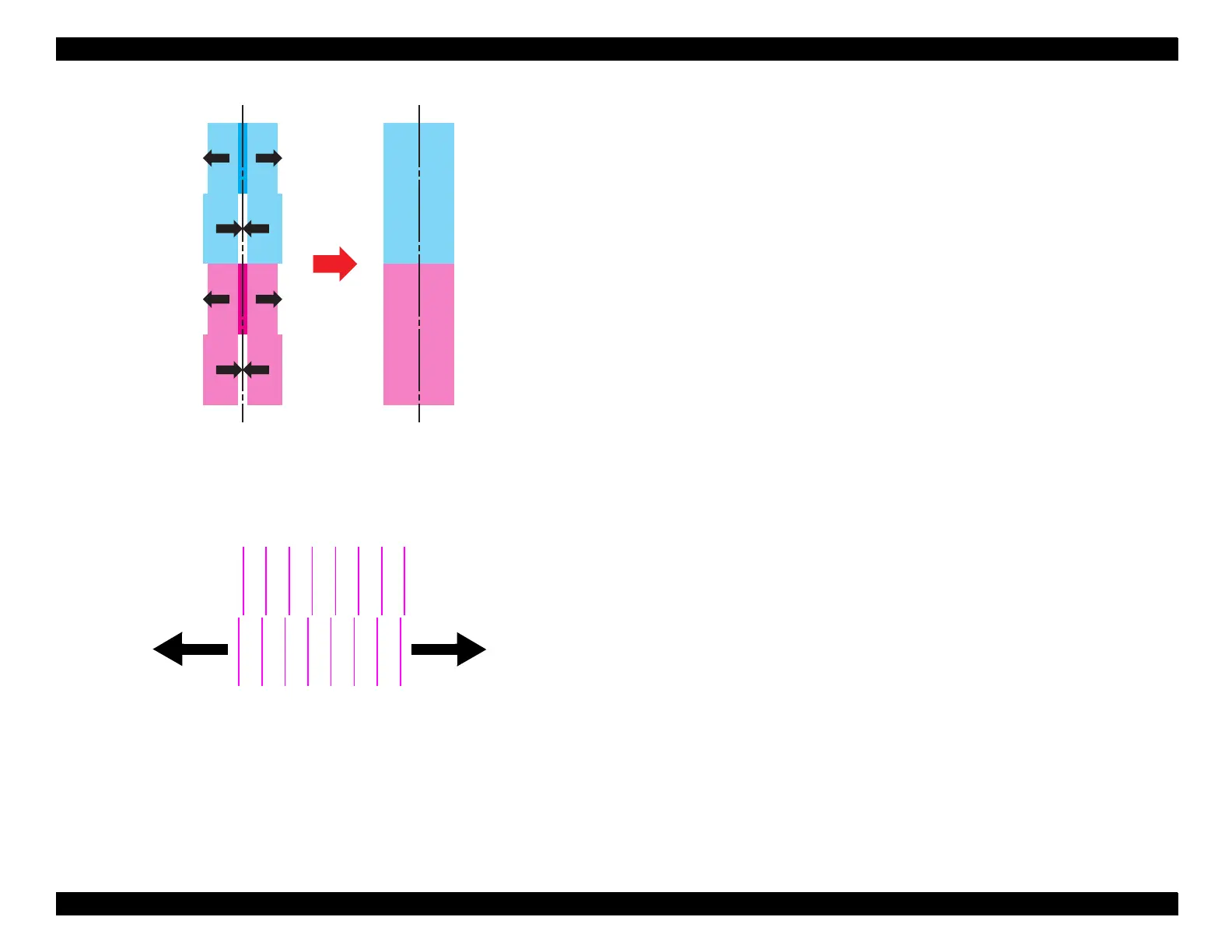

Figure 5-8. Bi-D Adjustment for Patterns #6 and #8
(pressing Paper Feed + corrects the pattern on the left)
Figure 5-9. Bi-D Adjustment for Patterns 1-5 and 7
(pressing Paper Feed + shifts the lower row to the right)
Incorrect
Correct
+
+
+
+
+
+
+
+
(+)(-)
