Fire Alarm Computer 8000C / M
12.2.1 Wiring - esserbus
®
-PLus
The esserbus
®
-PLus cable is directly connected to the terminals on Analog loop module (part-no.

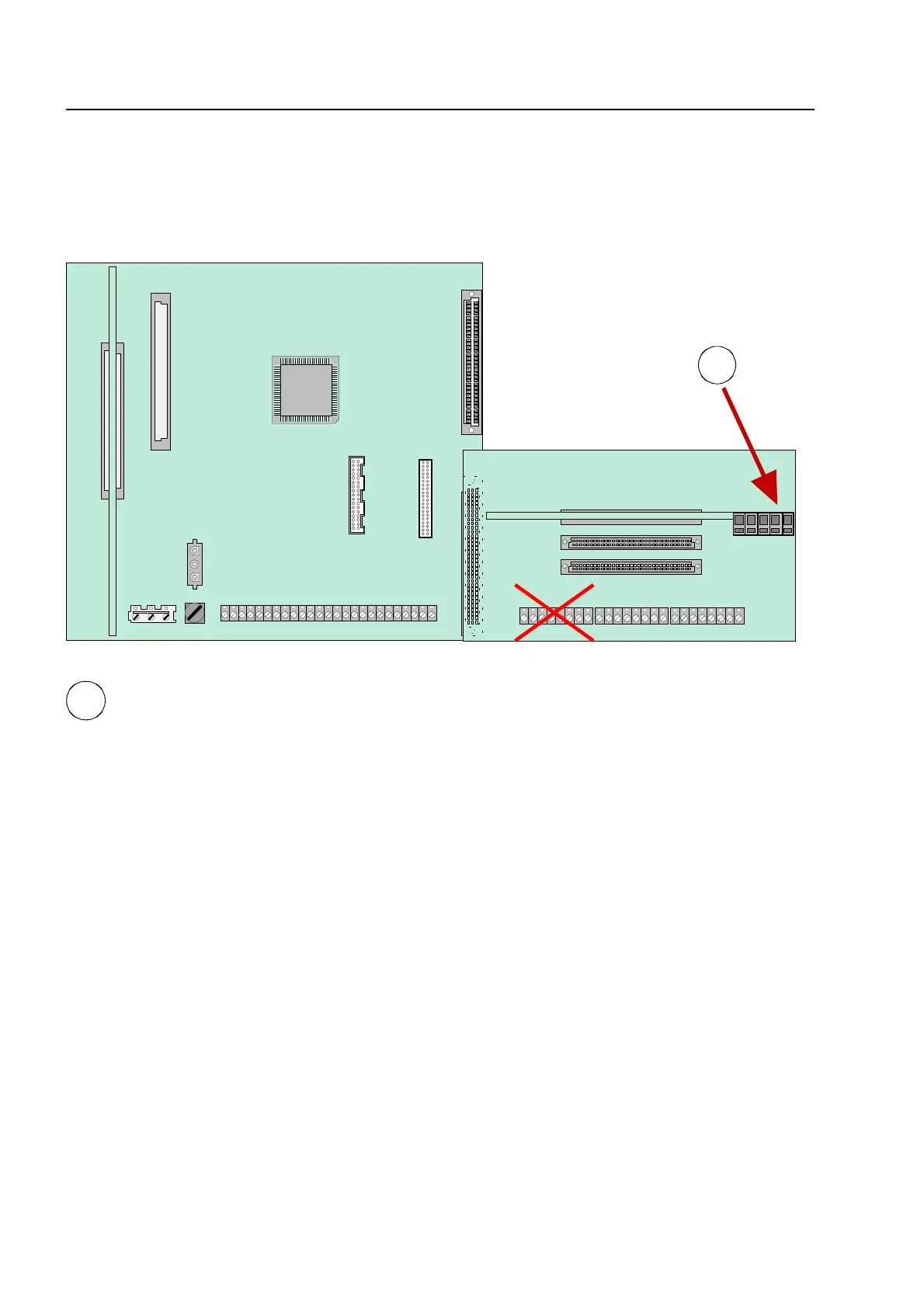

804382). Do not wire the appropriate terminals of the extension module. See (A)
Example:
A
A
esserbus
®
-PLus cable terminal
⇒
Analog loop module (part no. 804382).
The cable screen must be connected to the mantle terminal (panel housing).
Distinctions of the esserbus
®
-PLus
♦
max. 4 analog loop modules per panel
♦
The number sounders per loop depends on loop length and the relative quantities of each type
of sounder (v.v.). The maximum quantity of sounders to be calculated for a given loop length or
for the max. loop length to be calculated for a certain mix of sounders (see chapter
esserbus
®
-
PLus
function)
.
A
nalog loop module
