Esser 8000C - Master Box Activation Module

Page 124
Fire Alarm Computer 8000C / M
15 Master box activation module
Micro module for activating a master box (MFAB) and alerting the relevant emergency services,
such as the fire department.
With the fire alarm control panel 8000C / M, a connection for a master box module is integrated in
the field device module. If a field device module is not fitted, an MFAB control module can be used
for the connection of a master box.
You may install a max. of ten master box activation modules in an fire control panel 8000C / M or a
control panel system in the essernet
®
.
X1
64-way plug connector to micro module slot of the basic module, field device module
or extension module of the FACP 8000C / M
K1
Relay for switching the MFAB supply voltage, e.g., +12V or +24V (DC)
max. contact rating max. 30 V DC/ 1A
F1
Electronic fuse (multifuse): to reset, de-energize for approx. 30 seconds at the
relevant screw terminals on the terminal card.
S1
Setting the master box activation mode:
Switch set to left
⇒
Activation intermittent
Switch set to right
⇒
Activation continuous
BR1, BR3
hardware adjustment of MFAB activation (see following page(s))

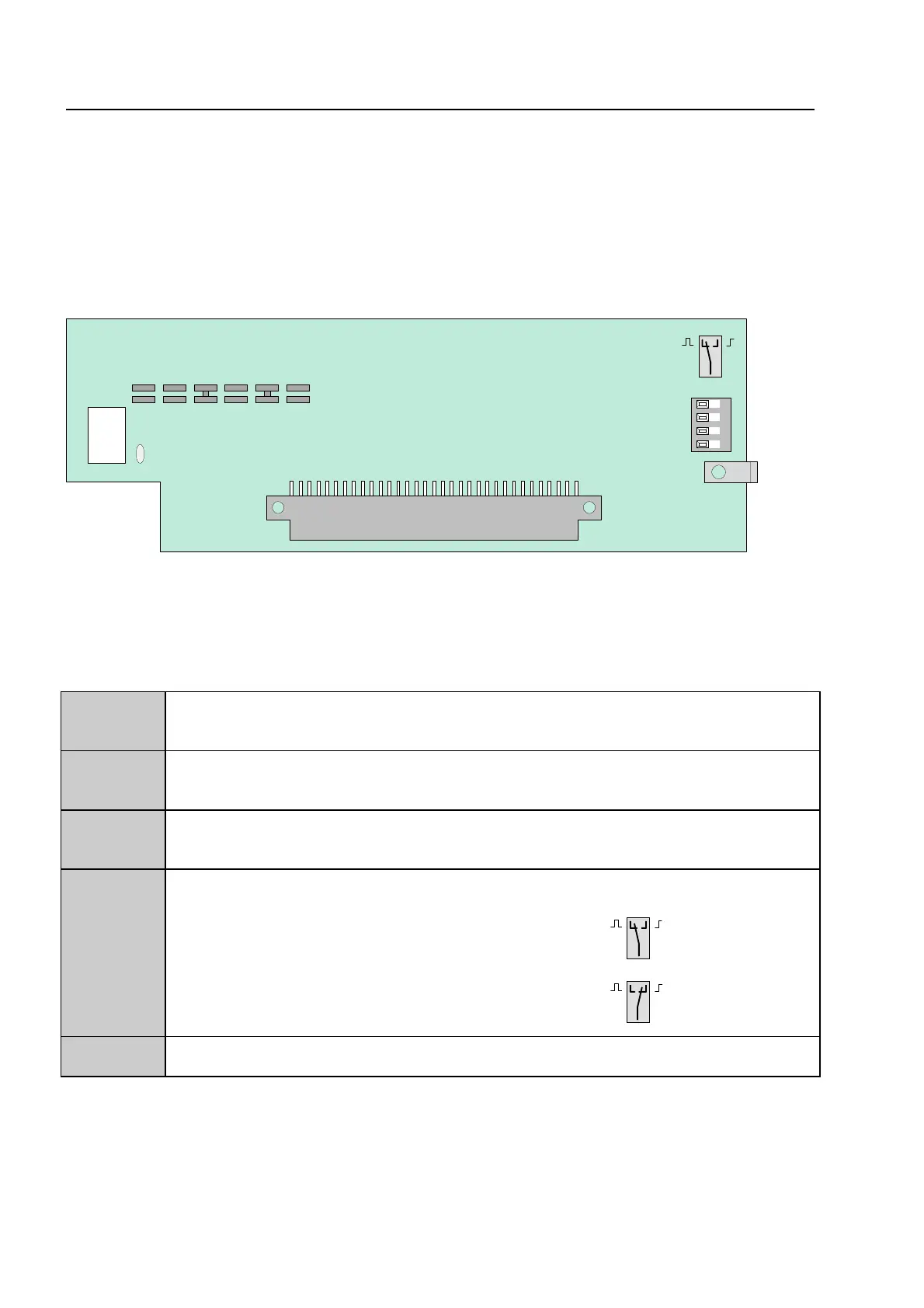

M
aster box activation module
X1
S 1
F 1
S 2
K 1
ON
1234
BR1
BR2
BR3
BR4
BR5
BR6
MFAB activation module
