Esser 8000C - Essernet Micro Module Hardware Revision E and Higher

Page 142
Fire Alarm Computer 8000C / M
22 essernet
®
micro module hardware revision E and higher

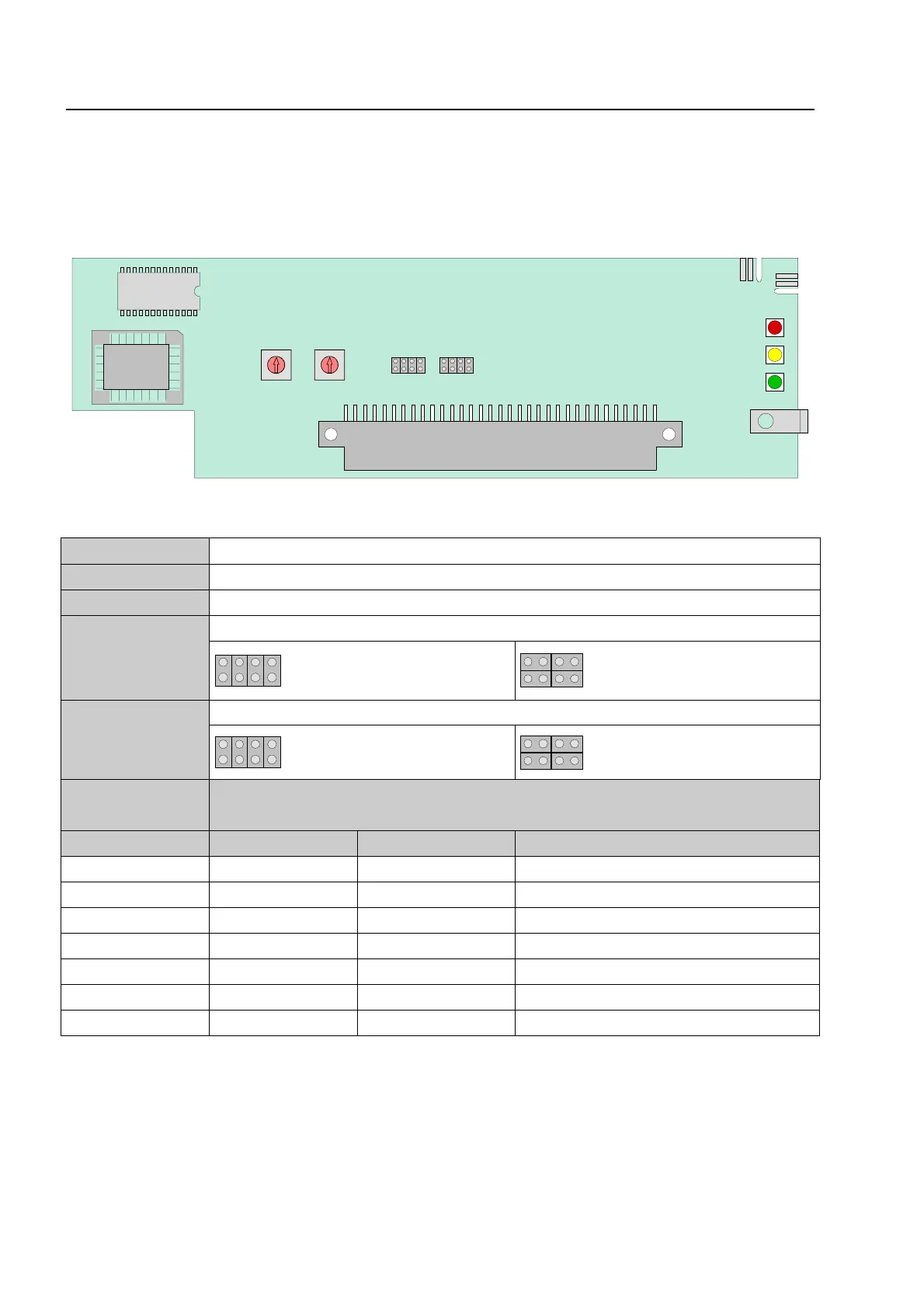

The address of essernet
®
micro modules type 1 and 2 with hardware revision E and higher is set
with two rotary switches.
S2
LED
essernet
®
module
red
yellow
green
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
X1
S1
X4
X5
U4
U4
Operating system software, V 4.00 or higher
S1 / S2
rotary address switch
X1
64 pin connector for the micro module slot inside the FACP
jumpers for configuration of the terminals, connector 3/4
X4
copper cable connected fibre optic cable connected
jumpers for configuration of the terminals, connector 1/2
X5
copper cable connected fibre optic cable connected
LED
status indication
red yellow green status
off flashing on
incorrect address setting
on flashing off
hardware failure
off flashing off
hardware failure
on on or off flashing
communication error
on or off on flashing
short circuit/open line
off off flashing
normal operation
flashing flashing flashing
test mode (only for factory testing)
•
The messages
incorrect address setting
,
hardware failure,
and
test mode
are only shown after
switching on the essernet
®
micro module. These indications will remain until the module is re-
started.
•
The messages
communication error
,
short circuit/open line,
and
normal operation
are only shown
while the relevant state persists.
e
ssernet
®
micro module hardware revision E and higher
