Esser 8000C - Extension Module (Part No. 772419)

Page 104
Fire Alarm Computer 8000C / M
12 Extension module (Part no. 772419)
A single slot for a micro module is integrated in the extension module.
The assignment of the eight screw terminals of the connectors is dependent on the employed
micro module types. The pin assignment of the connectors is described for every micro module in
the chapter micro modules.
Max. one extension module can be installed in a fire alarm control panel
FACP 8000C
, to Slot 1 of
the basic module for the connection of an additional micro module. In the fire alarm control panel
FACP 8000M
, it is possible to install two extension modules in Slot 1+2.
MM2
1
8
X3c X2b X1a
X 10
X11a X12b
Extension module

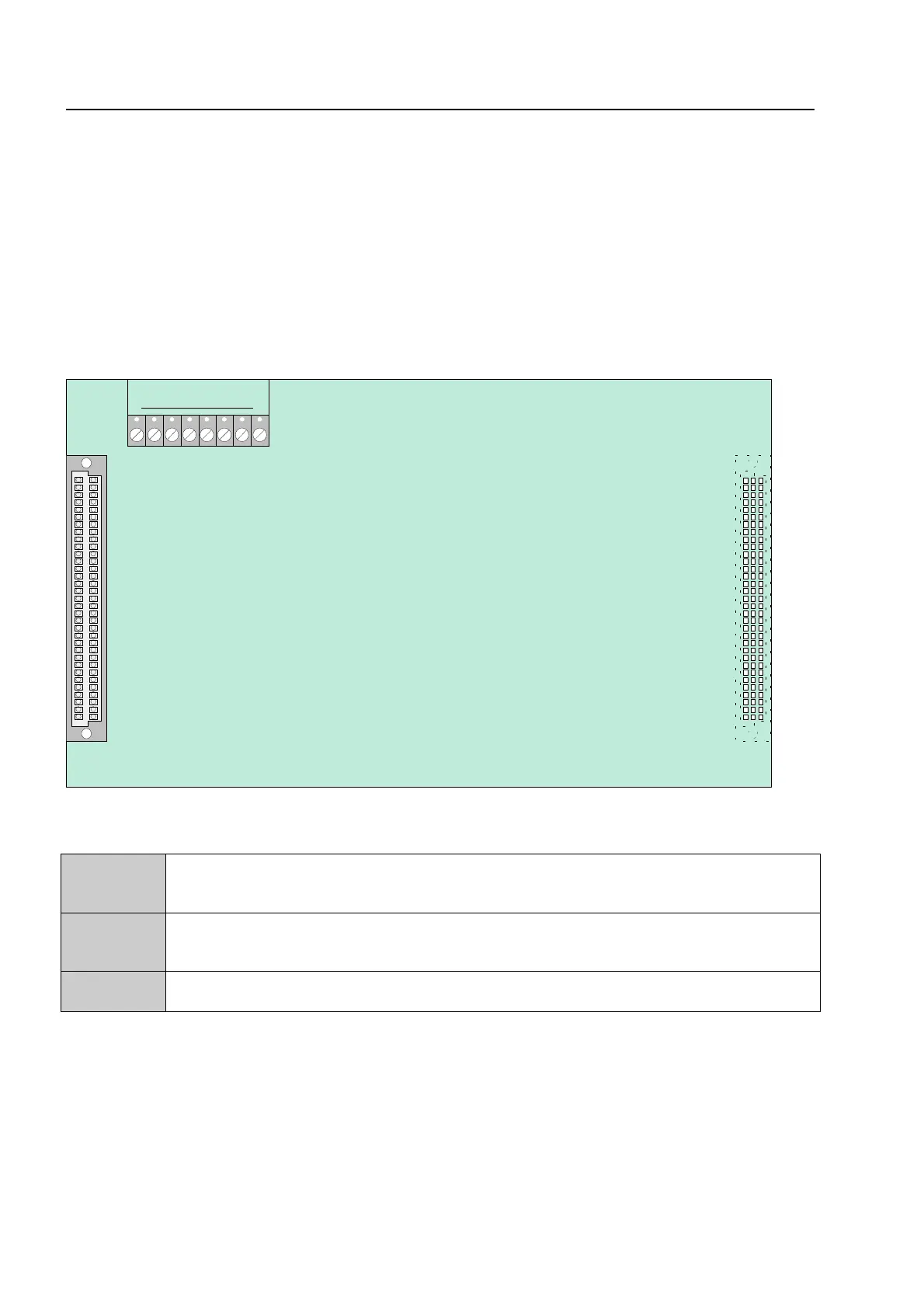

Fig. 48: Position of the assemblies – Extension module 772419
X 1a/2b/3c
Plug contact of Slot 1 of the basic module of the FACP 8000C, or Slot 1 or 2 of th
e
FACP 8000M
X11a/12b
general micro module slot
(do not connect an essernet
®
micro module, see note below)
X 10
Terminals for the micro module
☞
If an essernet
®
micro module is installed in the FACP 8000C / M, this module can only be
operated in the
micro module slot of the basic module
. For the essernet
®
micro module,
it is necessary to adapt the connections on the basic module using the jumpers X11-14.
E
xtension module
