Fire Alarm Computer 8000C / M
17 4-Output module

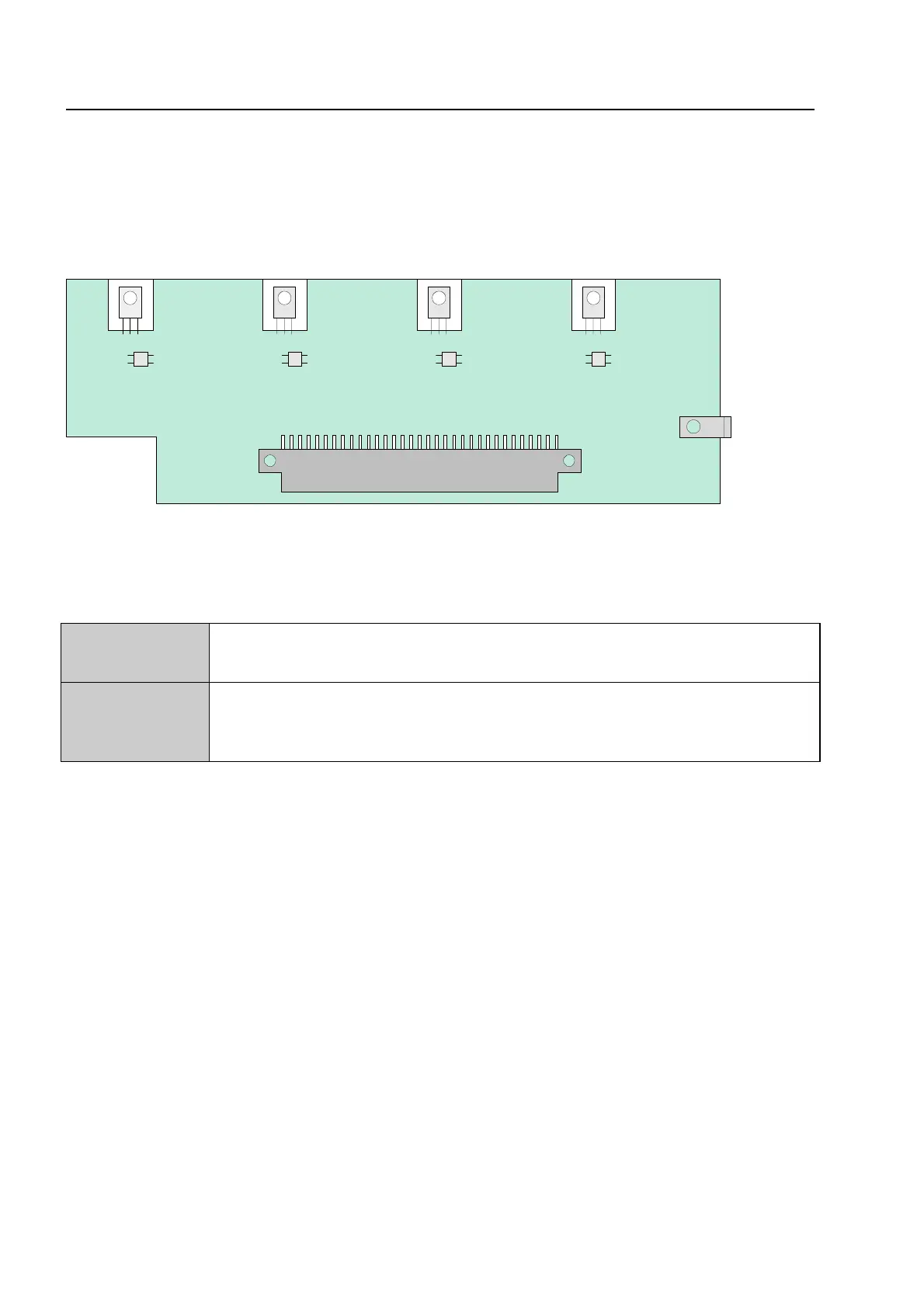

This micro module accommodates four freely programmable, polarity-dependent outputs for
activating external devices and system components. The outputs may be operated independently
of each other for positive or negative switching.
X 1
64-way plug connector to micro module slot of the basic module, field devic
module or extension module of the FACP 8000C / M
V 1, V 3,V 5, V 7
Freely programmable outputs (with open collector) external switching voltag
4V to 30 V DC, max. current load per output 300 mA, max. 1A total current pe
output micro module
☞
Assignment of the four outputs is programmed using the service PC and Customer Data
Editor 8000C / M software. For each output, you may enter a specific additional text
comprising 25 characters per line for output on the alphanumeric display and protocol
printer.
-Output module
