Esser 8000C - Connection of the Cover Contacts

Fire Alarm Computer 8000C / M
Page 91
10.6 Connection of the cover contacts
Depending on the central unit housing used, up to four cover contacts can be connected to the
connection terminals X22/23 of the basic module. However, only one housing contact is present
on the FACP 8000 C / M. The opened housing contact is indicated by the illuminated LED V43.
5 6 7 8 4
3 2 1
4 3 2
1
5 6 7
8
set
jumper

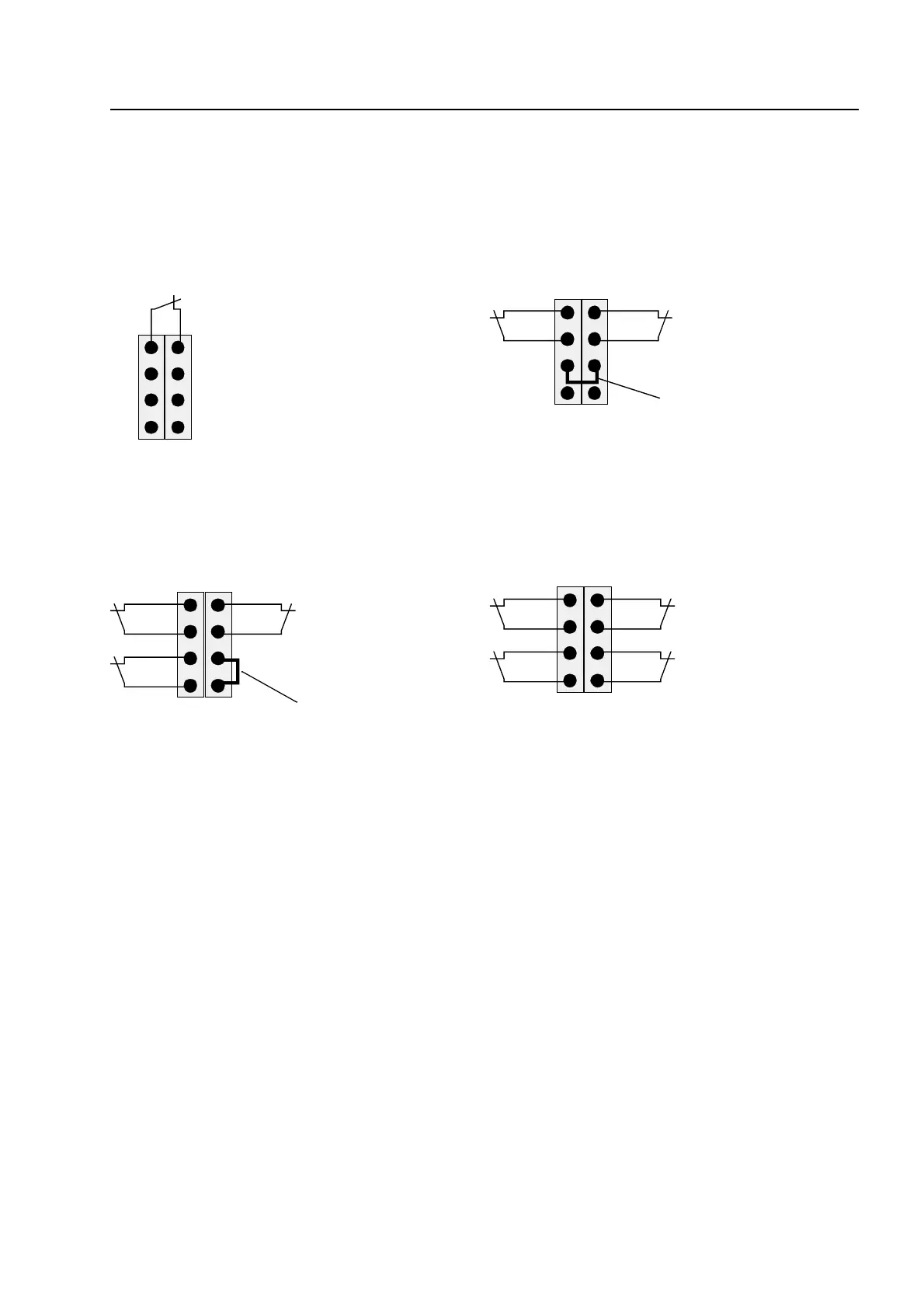

Fig. 31: Connection of one cover contact Fig. 32: Connection of two cover contacts
4 3 2
1
5 6 7
8
set
jumper
4 3 2
1
5 6 7
8
Fig. 33: Connection of three cover contacts Fig. 34: Connection of four cover contacts
☞
The cover contact must be opened when the service PC is connected, otherwise
connection of the PC is not recognized by the central unit.
Basic modu
le
