Fire Alarm Computer 8000C / M
8.5 Extension housing for two rechargeable batteries (789300/01)
Insert a separate fastening clamp with the corresponding lugs into the extension housing for each
rechargeable battery. It is not permissible to install the rechargeable batteries without these
fastening clamps.

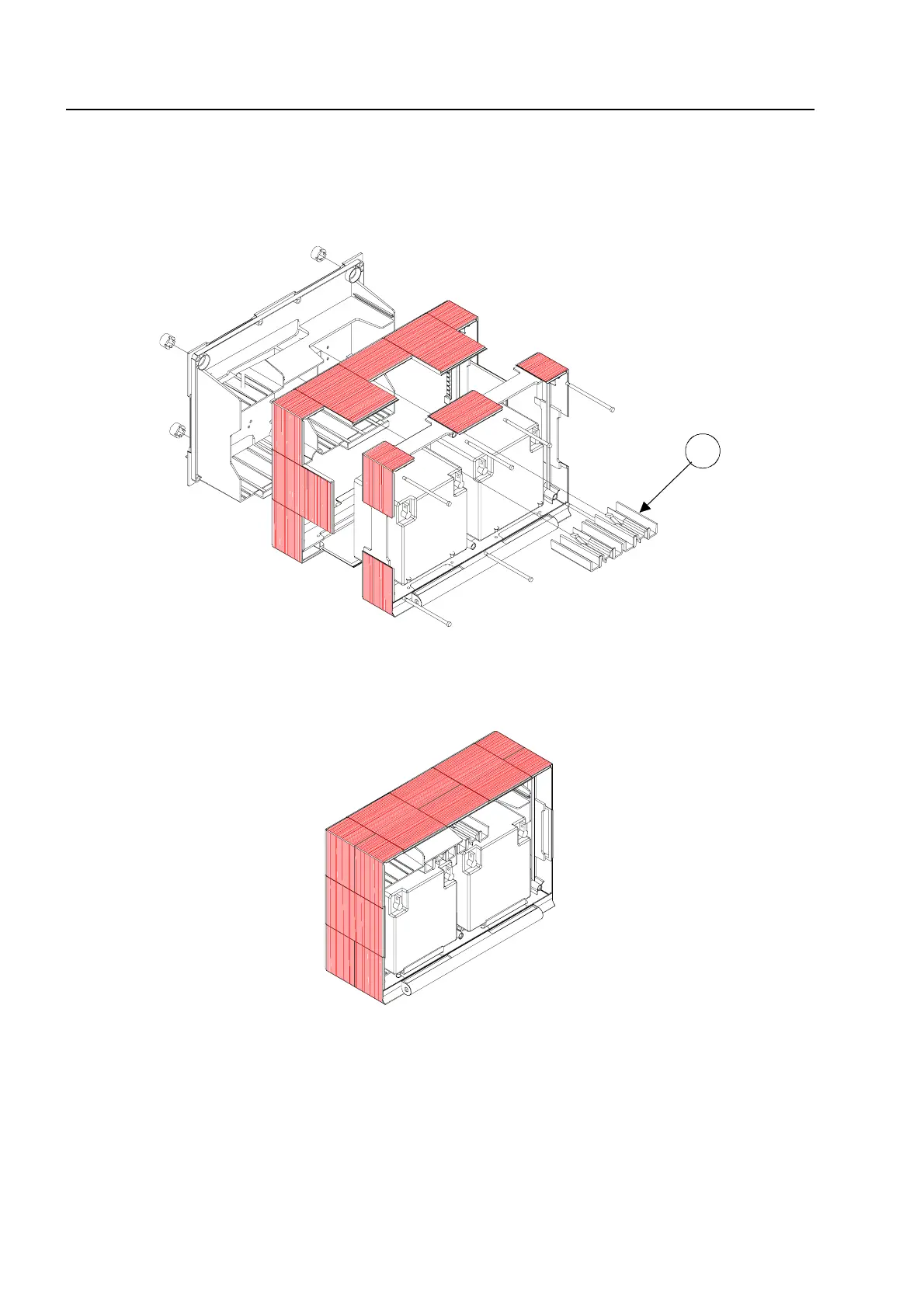

Fig. 19: Extension housing (Part No. 789300)
B
The required fastening clamps for the two 12 V / 24 Ah rechargeable batteries.
Fig. 20: Fitted extension housing without housing door
☞
Please note that, depending on the rechargeable batteries used, the fastening screws of
the extension housing must support a significant weight. Longer 8 mm flat-head screws
should always be used here.
ssembly
