Esser 8000C - 14 4-Relay Module

Page 122
Fire Alarm Computer 8000C / M

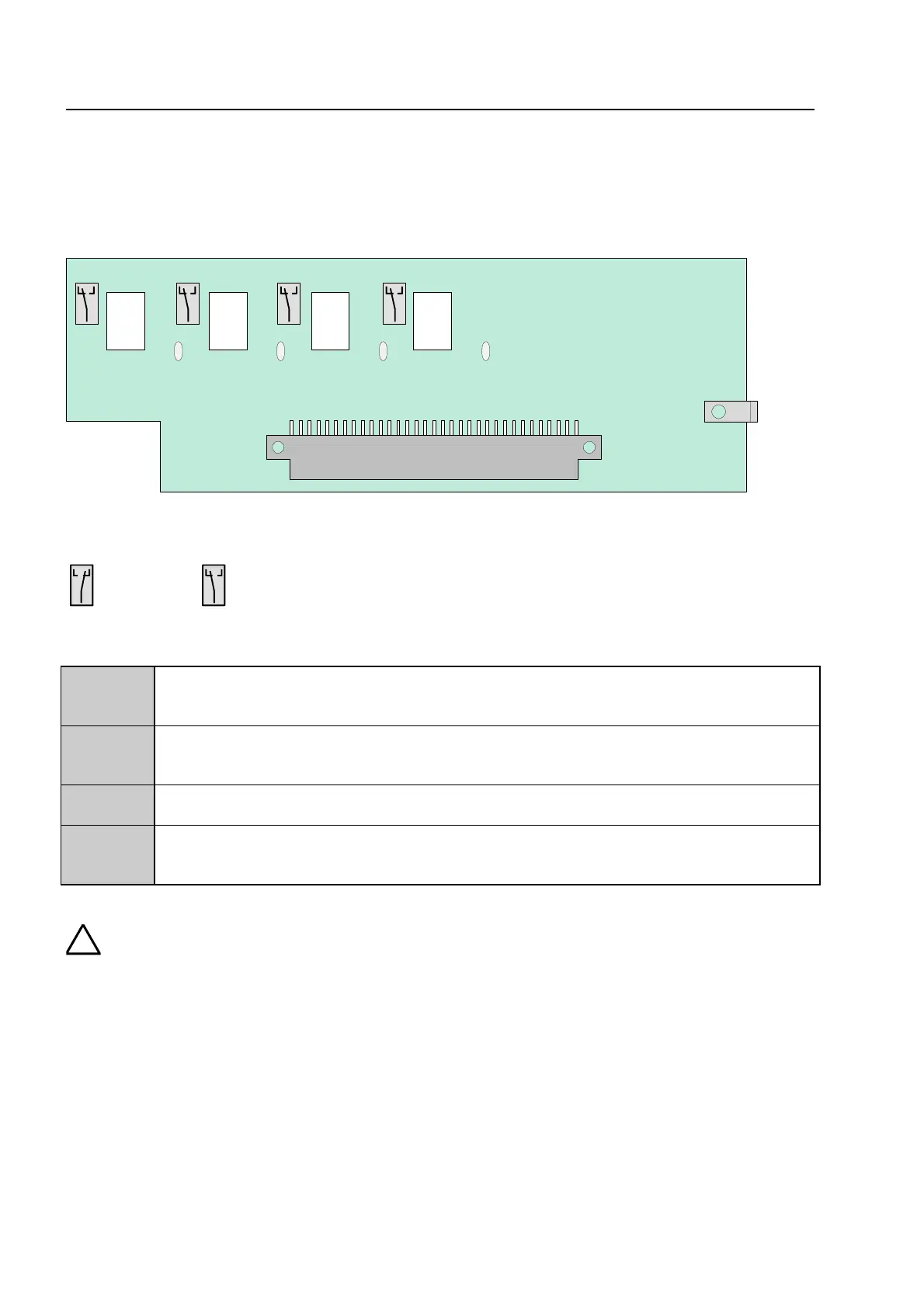

14 4-Relay module
This micromodule accommodates four freely programmable, non-monitorable, potential-free relays
for activating external devices and system components.
X 1
64-way plug connector to micro module slot of the basic module, field device module
or extension module of the FACP 8000C / M
K1 to K4
freely programmable, potential-free relay contacts
(max. contact rating 30V DC/ 1A)
S1 to S4
Coding switch for setting the NC or NO contact function for each relay
F1 to F4
Electronic fuse (multifuse): to reset, de-energize for approx. 30 seconds at the
relevant screw terminals on the terminal card.
!
No AC voltages may be applied to the relays built-into the 8000C / M FACP. This applie
s
also to those relays operated in the
non-monitored
mode.
☞
Relay assignment is programmed using the service PC and Customer Data Editor
8000C / M software. For each relay, you may enter a specific additional text comprising 25
characters per line for output on the plain text display and protocol printer.
4
-relay module
X1
K 3
K 2
K 1
S 2
K 4
S 4
S 3
F 4
S 1
F 1
F 2
F 3
Example of switch position
NO contact
NC contact
n.o.
4-relay module
n.c.
