4.1.1 Display / display control
Overview Service Time func. Info
1. FIRE Zone : 002 Det : 02 15:10 28:07
Office 1 Room 17 1st floor
15:10 28:07
EDP room Room 21 1st floor
1
1
32
4
5
3. FIRE Zone : 002 Det : 02

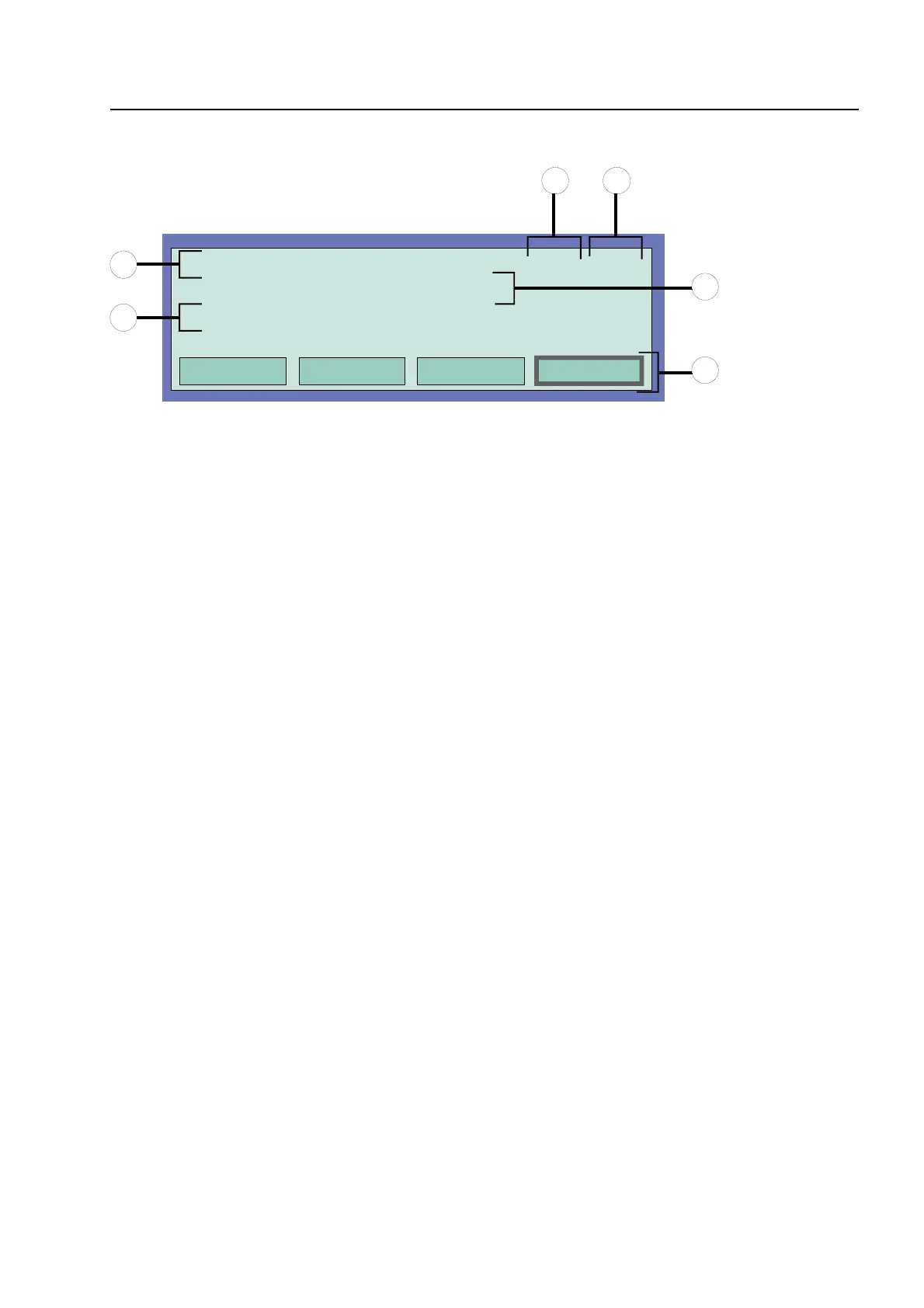

Fig. 11: Example display for a fire alarm (additional display)
In all, three fire signals were detected. The display shows the first (1.) and the last signal
(in this case 3.) respectively. The display is scrolled by pressing the cursor key, and the
next signal (2.) is displayed.
Time of this alarm message
Date of this alarm message
Additional text line
(the additional text programmed for the triggered zone or detector will be displayed)
Additional information text or parameter / additional text (Param/AT)
Significance of the display to "1. Fire" :
♦ First fire signal on 28.07 at 15:10 hours.
♦ The detector No. 02 in the detector zone No. 02 signals FIRE.
♦ The additional text programmed for this detector zone "Office 1 Room 17 1st floor" provides
information on the location of the fire.
♦ The display field Info shows that an information text has been programmed for this detector
zone, which can be accessed by pressing the corresponding function key.
Display / display control
